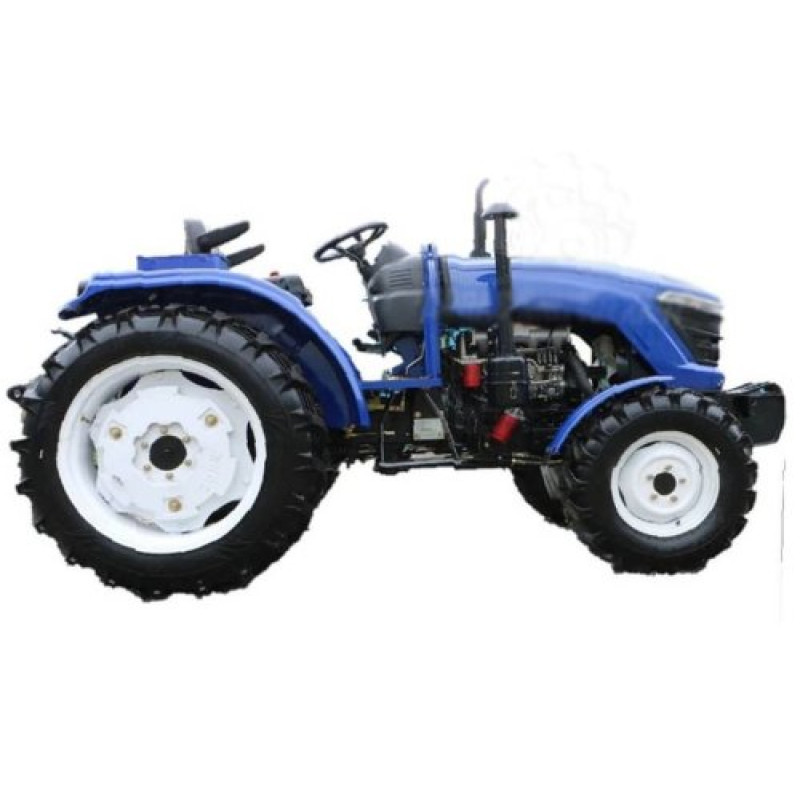

EURO FENG 504 Mini Tractor
Introducing the compact and reliable EURO FENG 504 mini tractor from the manufacturer EURO FENG. This model is designed for a wide range of agricultural, municipal, and utility tasks: soil cultivation, work with mounted equipment, cargo transportation on the farm, and other tasks on the plot. The mini tractor combines 40 hp of power, 4x4 all-wheel drive, and a modern JDM390T3 diesel engine, making it an efficient and economical solution for private farms and agricultural needs. Product category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
Technical Specifications:
| Tractor power, hp (kW) | 40 (36.7) |
| Wheel formula | 4x4 |
| Engine brand | JDM390T3 |
| Engine type | vertical, 4-cylinder 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 3160 |
| Cylinder bore / piston stroke | 100x105 |
| Nominal engine fuel consumption, g/kW*h | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Transmission (gearbox) | (4+4)x2 |
| Oil type in transmission, rear axle | transmission oil |
| Oil type in front axle | transmission oil |
| Rear differential lock | + |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt drive |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of mounted mechanism, kg | 550 |
| Minimum ground clearance, mm | 300 |
| Wheelbase, mm | 1870 |
| Tire size | rear 11.20-24.00, front 7.50-16.00 |
| Minimum turning radius, m | with one-sided brake 2.6, without brake 3.0 |
| Theoretical travel speed, km/h | forward 0.39 - 31.97, reverse 0.51 - 12.76 |
| Fuel tank capacity, L | 45 |
| Engine crankcase volume, L | 4.5 |
| Transmission, rear axle, and lift crankcase volume, L | 18.0 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3420x1535x1870 |
| Curb weight, kg | 1480 |
Briefly about the advantages of EURO FENG 504
- 40 hp power allows working with a wide range of mounted equipment — from plows to soil cultivation units.
- JDM390T3 diesel engine with a displacement of 3160 cm3 and a direct injection system guarantees reliable traction and economical fuel consumption (nominal consumption ≤238 g/kW*h).
- 4x4 all-wheel drive and rear differential lock enhance проходимость on difficult soils and in high humidity conditions.
- Convenient (4+4)x2 transmission provides a wide range of speeds: forward 0.39–31.97 km/h, reverse 0.51–12.76 km/h, making the tractor versatile for various tasks.
- Power steering with a separate pump increases driving comfort and reduces operator fatigue during long work.
The EURO FENG 504 has a well-thought-out design of lubrication and cooling systems: engine crankcase volume 4.5 L, cooling system 5.0 L, and a capacious 45 L fuel tank for long-term operation without frequent refueling. A minimum ground clearance of 300 mm and a lifting capacity of the mounted mechanism up to 550 kg make it convenient for field and farm work. Dimensions of 3420x1535x1870 mm and a curb weight of 1480 kg provide a good balance between maneuverability and stability.
This mini tractor is a practical choice for farmers, private households, and municipal services looking for a combination of power, reliability, and economy in a compact design.
