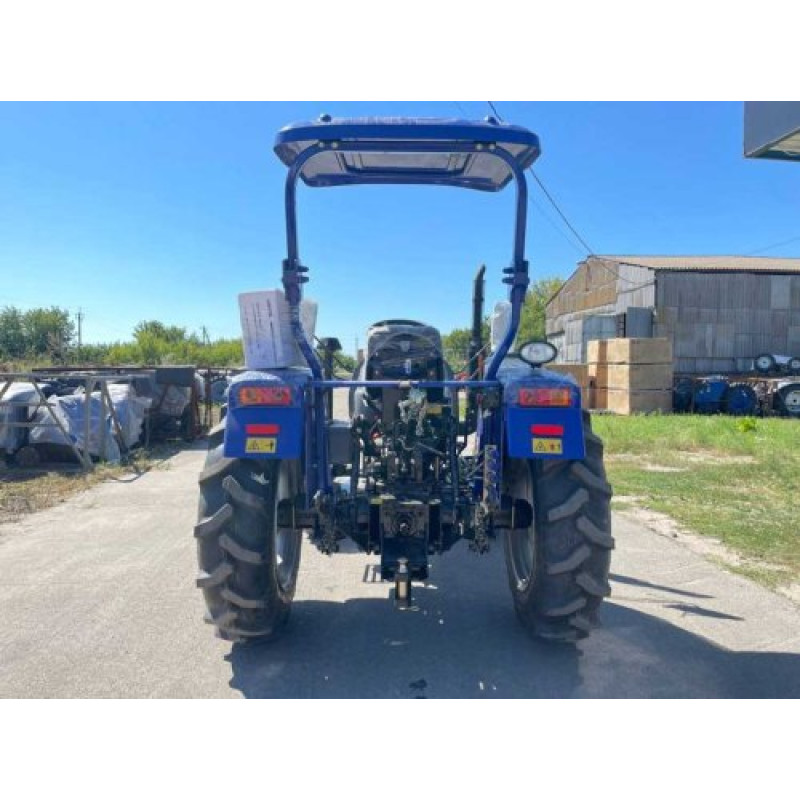

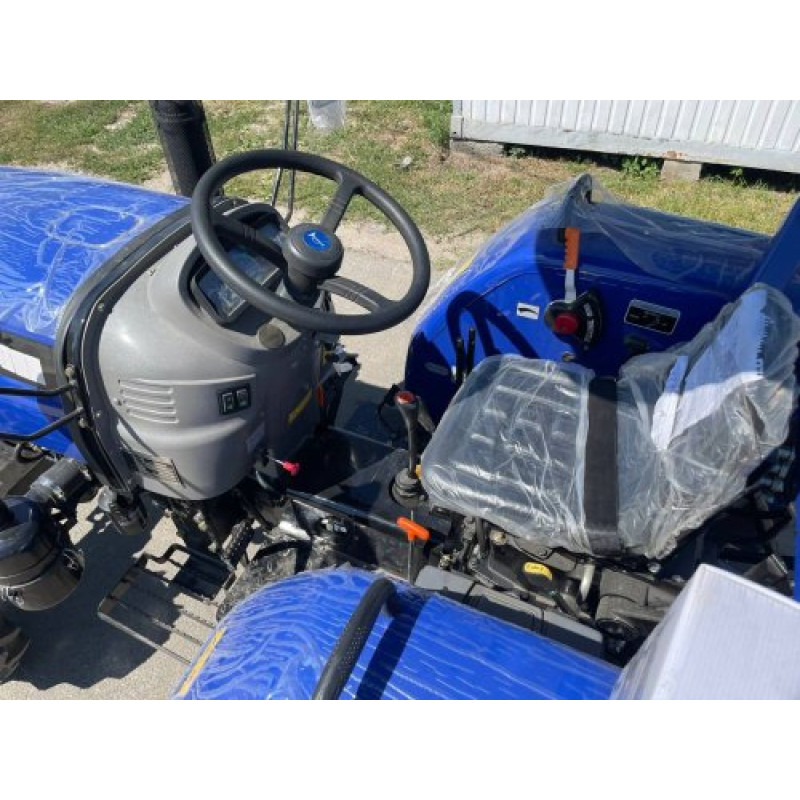

Foton FT 354 HX Mini Tractor — Overview and Specifications
Model: Foton FT 354 HX Mini Tractor. Manufacturer: Foton. This compact yet powerful mini tractor is designed for a wide range of farm tasks: soil cultivation, tilling, grass mowing, greenhouse work, loading/unloading, and transporting small loads. The unit combines a 4-cylinder diesel engine with a liquid cooling system, 4x4 all-wheel drive, and a reliable transmission, ensuring stable operation in various conditions.
Key Advantages:
- 35 hp (25.7 kW) power — optimal for a wide range of mounted and trailed equipment.
- 4x4 all-wheel drive for enhanced off-road capability and stability in the field or on the plot.
- Electric starter and reliable starting system for ease of operation.
- Hydraulic steering and a modern hydraulic system with two hydraulic outlets.
- Rear differential lock and dry single-disc clutch for easy control in challenging conditions.
Design and Performance Description: The Foton FT 354 HX is equipped with a 4-stroke diesel engine with a displacement of 2155 cm3, vertical arrangement of 4 cylinders, cylinder diameter of 85 mm, and piston stroke of 95 mm. The cooling system is liquid, closed, with forced circulation. The fan drive is via a V-belt transmission. Nominal fuel consumption is ≤275 g/kWh, nominal crankshaft speed is 2300 rpm. Structurally, the tractor features a direct final drive, a (4+1)x2 gearbox, and drum brakes on the rear wheels.
| Engine power, hp (kW) | 35 (25.7) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, direct injection, non-turbocharged |
| Number and arrangement of cylinders | 4, vertical |
| Engine starting system | electric starter |
| Cooling system | liquid, closed, with forced coolant circulation |
| Cooling system fan drive | V-belt transmission |
| Engine displacement, cm3 | 2155 |
| Cylinder diameter / piston stroke, mm | 85 / 95 |
| Nominal engine fuel consumption, g/kWh | ≤275 |
| Nominal engine crankshaft speed, rpm | 2300 |
| Nominal traction force, kN | 5.8 |
| Nominal engine oil consumption, g/kWh | 1.6 |
| Gearbox (КП) | (4+1)x2 |
| Rear differential lock | + |
| Clutch | dry single-disc, constantly engaged type |
| Final drive | direct |
| Steering | hydraulic |
| Brakes | on rear wheels, drum brakes |
| Power Take-Off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump (НШ) for hitch drive / gear pump for power steering operation |
| PTO speed, rpm | 540 / 1000 |
| Maximum lifting capacity of hitch mechanism, kg | 450 |
| Minimum ground clearance, mm | 290 |
| Wheelbase, mm | 1700 |
| Wheel track, mm | front 1280, 1380; rear 1080, 1160, 1260 |
| Tire size | front 6.50-16; rear 11.2-24 |
| Minimum turning radius, m | without brakes 3.7; with brakes 3 |
| Fuel tank capacity, L | 29 |
| Engine crankcase volume, L | 5 |
| Gearbox and rear axle crankcase volume, L | 20 |
| Front axle crankcase volume, L | 3.5 |
| Engine cooling system volume, L | 12 |
| Number of hydraulic outlets | 2 |
| Trailer connector (socket) | + |
| Overall dimensions (L x W x H), mm | 3240x1350x1850 |
| Curb weight, kg | 1430 |
The Foton FT 354 HX model is distinguished by its versatility: the presence of a PTO with 540/1000 rpm modes allows for the use of a wide range of mounted equipment, and the maximum lifting capacity of the hitch mechanism of 450 kg makes it suitable for mounting hay and soil cultivation equipment. Compact dimensions of 3240x1350x1850 mm and a minimum ground clearance of 290 mm simplify work in confined spaces, while a minimum turning radius of 3–3.7 m ensures maneuverability.
A 29 L fuel tank capacity and well-designed lubrication system volumes (engine crankcase 5 L, gearbox and rear axle 20 L, front axle 3.5 L) guarantee long-term operation under load. The hydraulic drive system with two hydraulic outlets and a gear pump ensures stable operation of mounted units and power steering.
If you are looking for a reliable mini tractor from a well-known brand for household and agricultural work, the Foton FT 354 HX is a balanced choice in terms of power, functionality, and price. Brand: Foton. Category: Tractors, Motorcycles, ATVs, Boats (Vehicle) > Tractors > Mini Tractors.
