Product Code: 59742-dipole-pcb-ipex-610-660
210 грн.
Buy this product in 1 click:
Main specifications
Connector type:
IPEX Female
Housing type:
Dipole antenna for airborne installation
Material:
textolite (PCB)
Weight (depends on size):
13 g
Frequency range:
610–660 MHz
All specifications
We will deliver this product:
Payment
Description

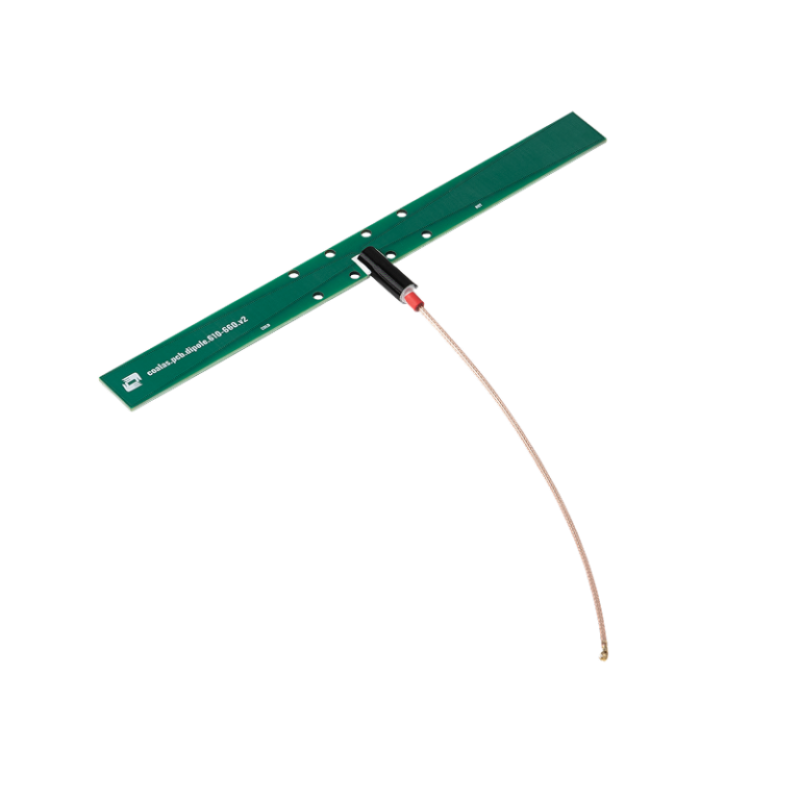

PCB dipole (textolite) antenna for onboard installation, designed to operate in the 610-660 MHz range with stable VSWR performance. Provides broadband operation and reliable signal transmission, equipped with an IPEX Female connector and RG178 cable.
Specifications
| Band | 610 MHz – 660 MHz (VSWR < 1.5) |
| Gain | 2 dBi |
| Input Impedance | 50 Ohm |
| Max Power | 15 W |
| Connector | RG178 (158 mm) + IPEX Female |
| Dimensions | 184 x 17 mm |
| Weight | 13 g |
Specifications
Connector type
IPEX Female
Housing type
Dipole antenna for airborne installation
Material
textolite (PCB)
Weight (depends on size)
13 g
Size
184 × 17 mm
Antennas
Frequency range
610–660 MHz
Enhancements
2 dBi
