Product Code: 59741-dipole-ipex-620-660
180 грн.
Buy this product in 1 click:
Main specifications
Connector type:
IPEX Female
Housing type:
notched dipole antenna
Weight (depends on size):
9 g
Frequency range:
620–660 MHz
Enhancements:
2 dBi
All specifications
We will deliver this product:
Payment
Description

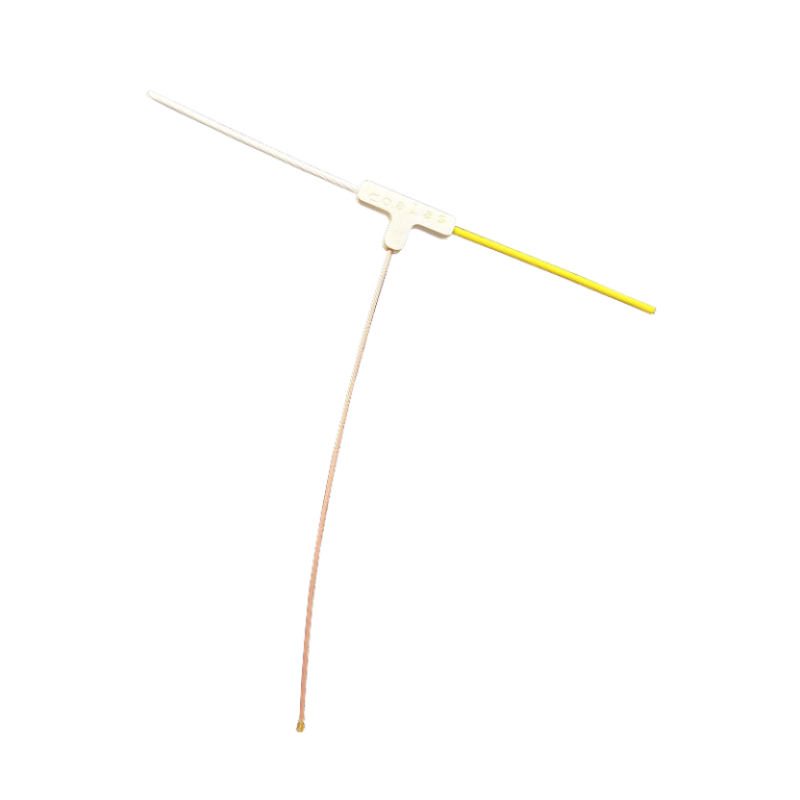

Compact notched dipole receiving antenna, designed for operation in the 620-660 MHz range.
With the ability to change length via notched segments, the product provides flexible tuning for a specific operating frequency.
Specifications
| Band | 620 MHz – 660 MHz (VSWR < 1.5) |
| Gain | 2 dBi |
| Input Impedance | 50 Ohm |
| Max Power | 15 W |
| Connector | RG178 (200 mm) + IPEX Female |
| Dimensions | 213 x 20 mm |
| Weight | 9 g |
Specifications
Connector type
IPEX Female
Housing type
notched dipole antenna
Weight (depends on size)
9 g
Size
213 × 20 mm
Antennas
Frequency range
620–660 MHz
Enhancements
2 dBi
