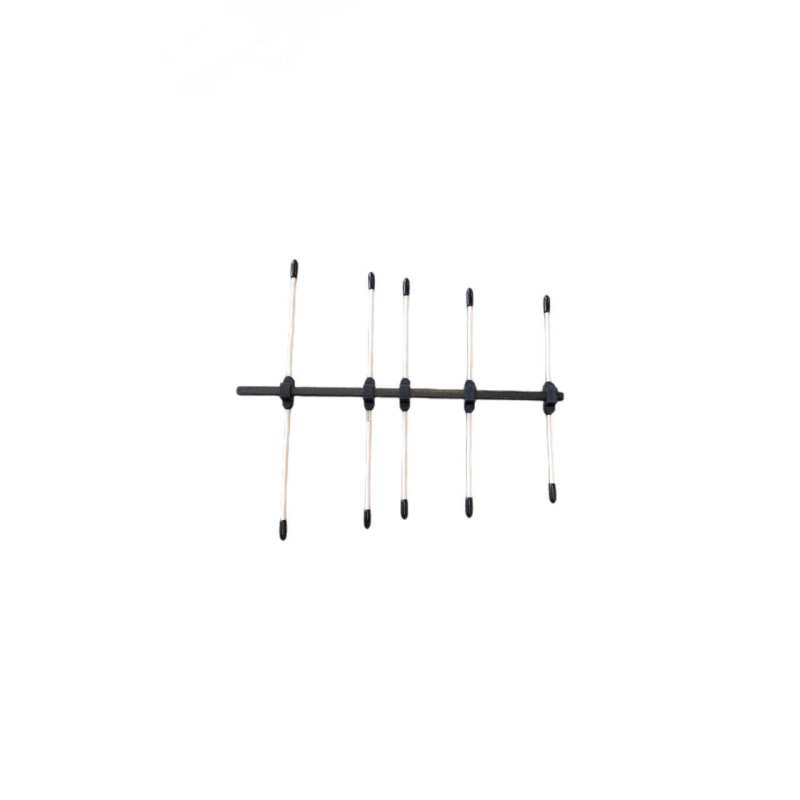

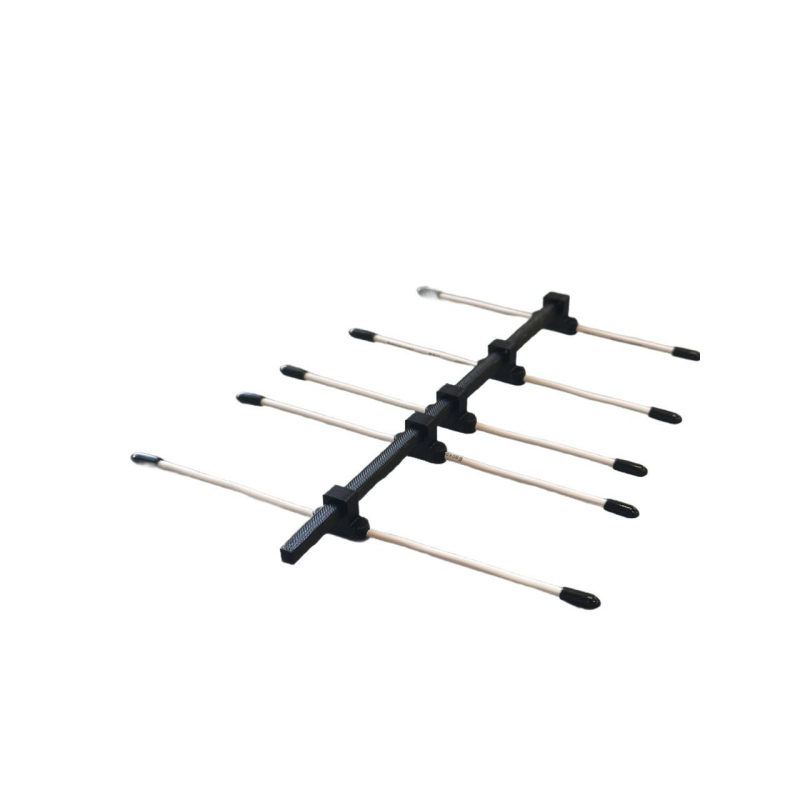

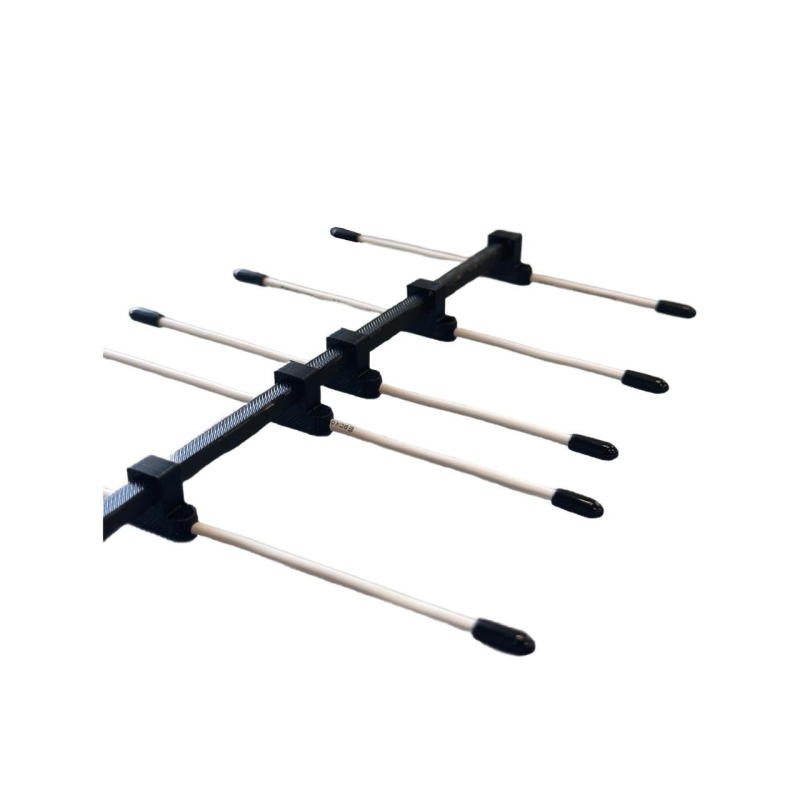

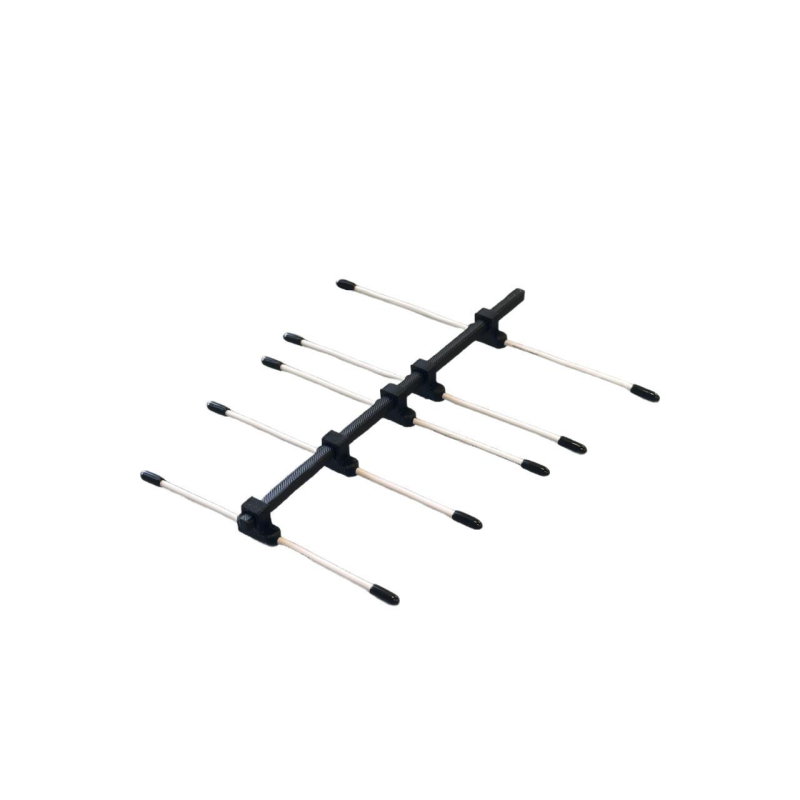

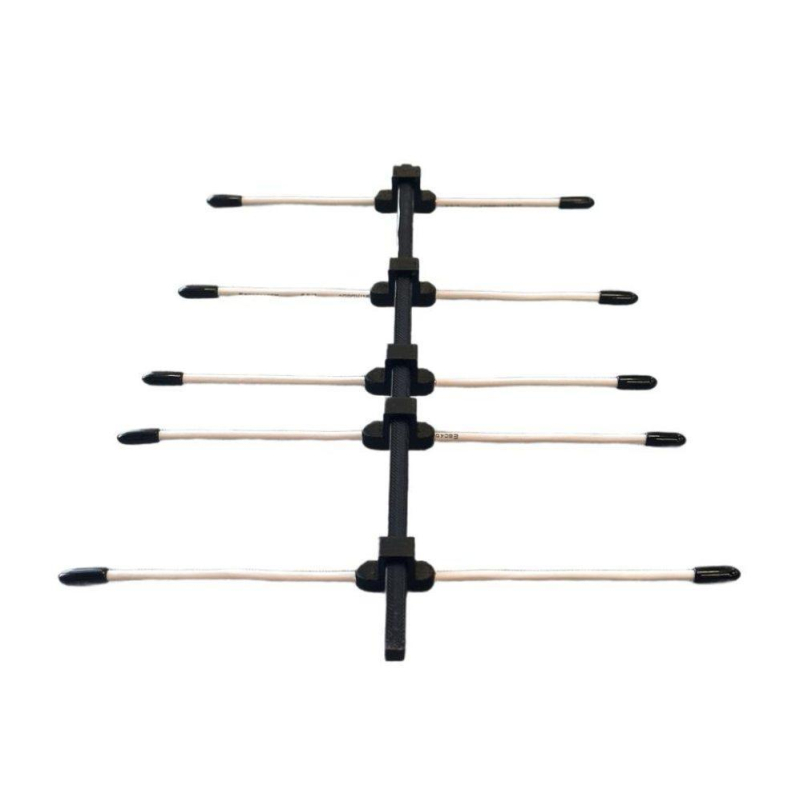

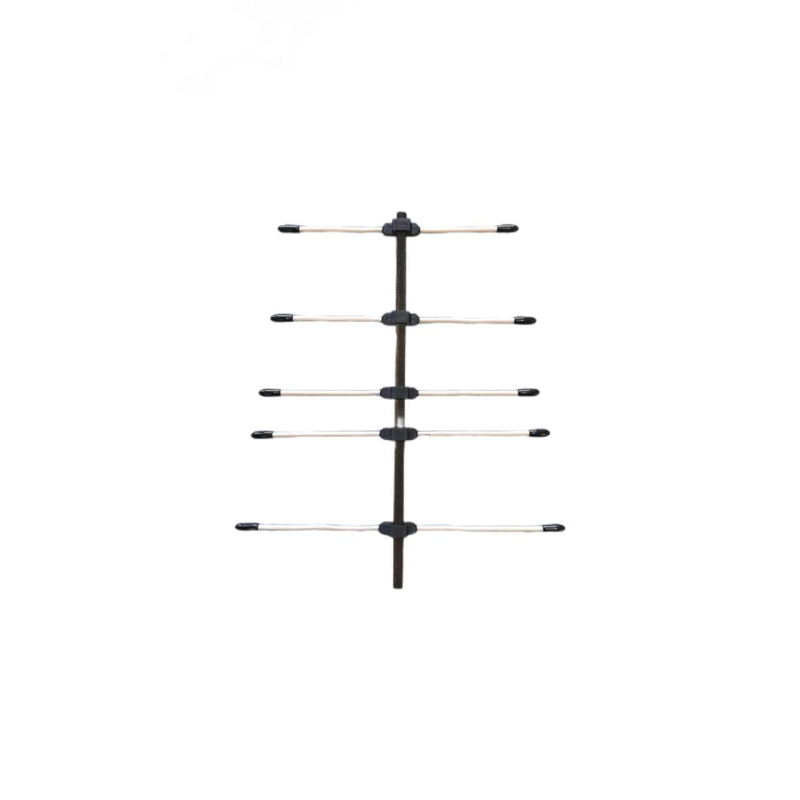

Custom-made Yagi antenna for any frequency SKYNOVA
This antenna is ideal for drone ground control stations where flight range up to 30-40 km is critical. It ensures reliable communication and high signal stability even over long distances.
Advantages of this antenna:
✅ Small size (up to 30 cm) - compact and convenient for transport.
Repeater mount (15x15 mm tube) - easy installation on various platforms.
SMA-Female connector - allows selection of optimal cable length.
Rigid construction - the antenna will not break even if dropped.
⚙️ Azimuth adjustment - with locking for precise direction tuning.
⚖️ Weight up to 100 g - does not increase the weight of your drone.
Technical specifications:
- Frequency: 980 MHz (930-1030 MHz)
- Gain: 10 dBi
- VSWR at center frequency: 1.1
- Materials: Polymer, aluminum
- Connector: SMA-Female
- Polarization: Linear (vertical or horizontal)
- Impedance: 50 Ohm
- Flight range: up to 40 km
- Weight: up to 100 g

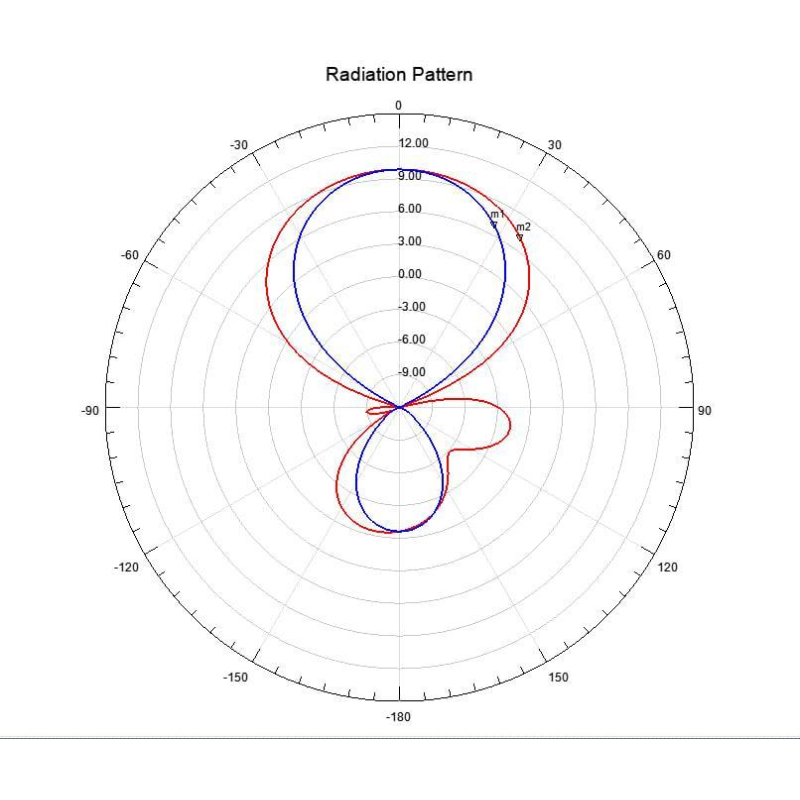

Antenna radiation pattern:
Yagi antenna — an excellent choice for stable long-range communication during drone flights!
