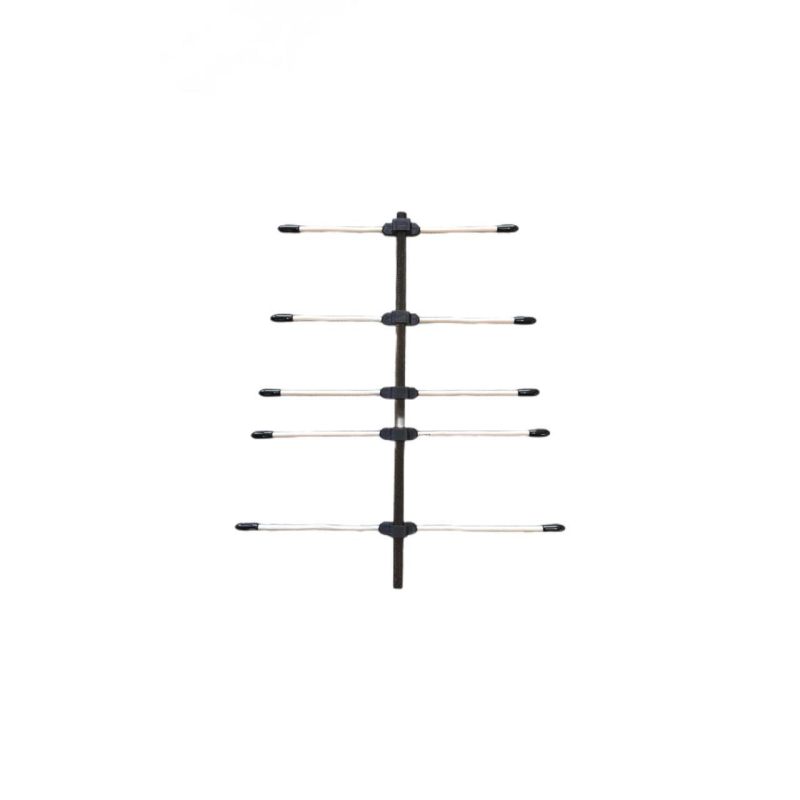

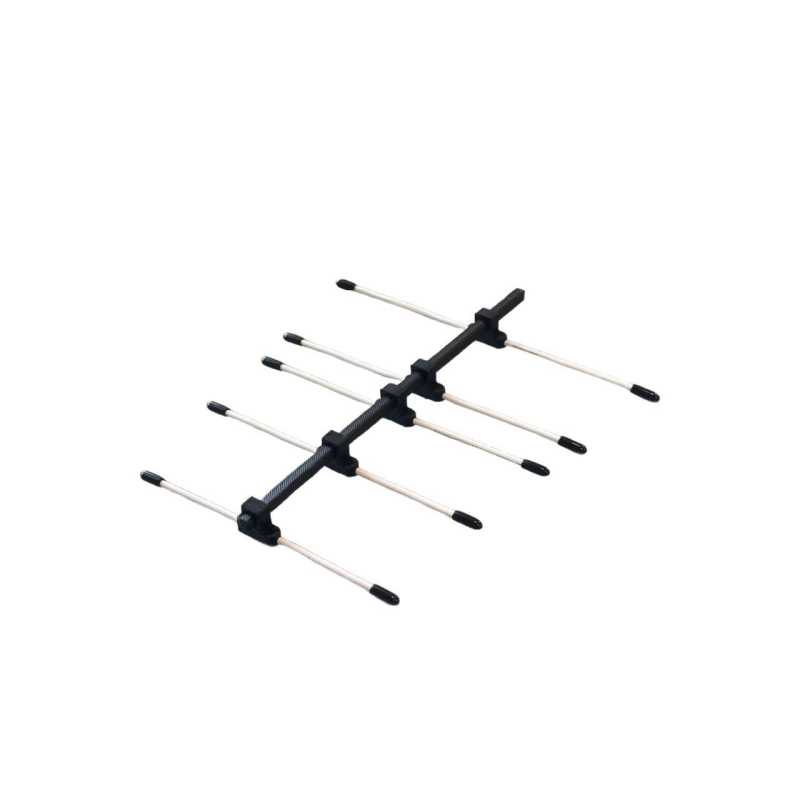

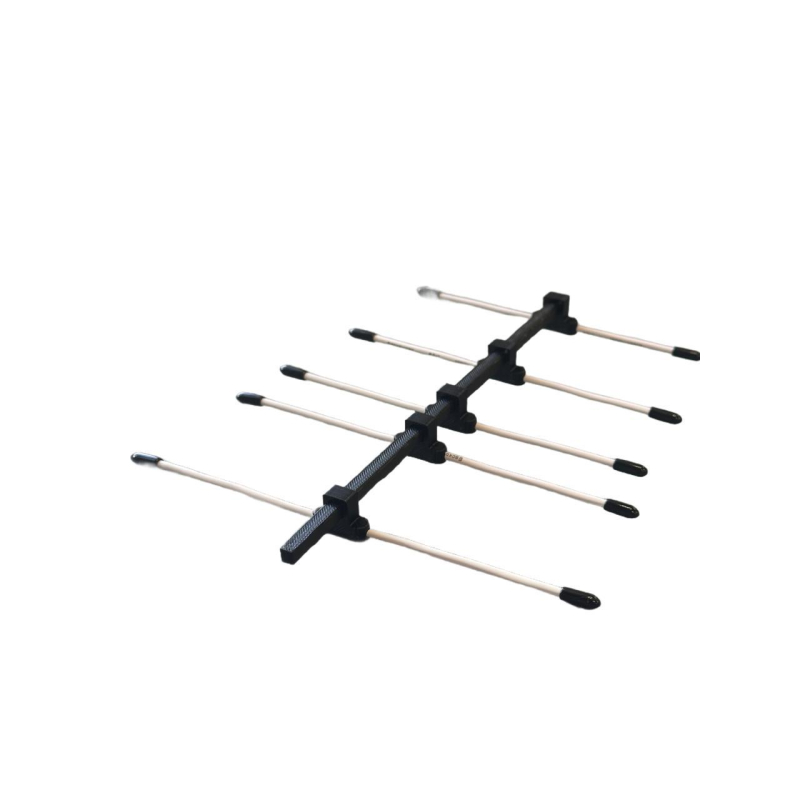

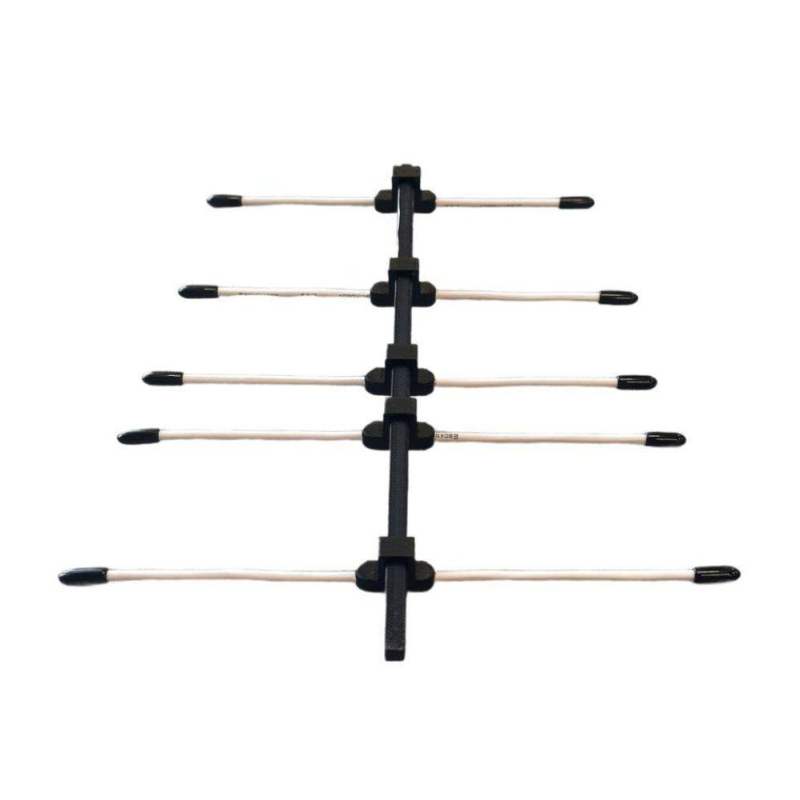

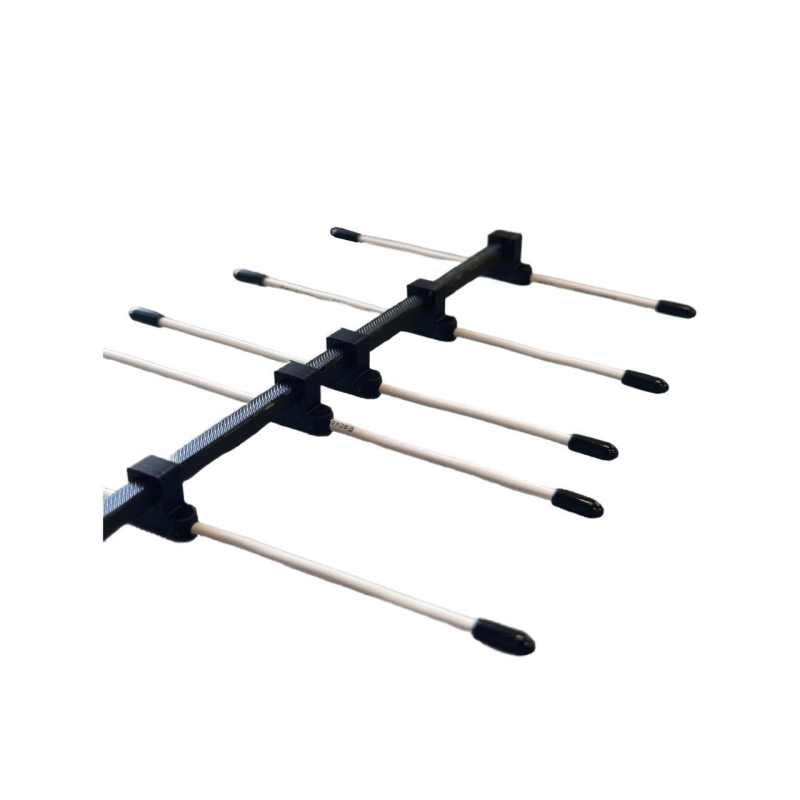

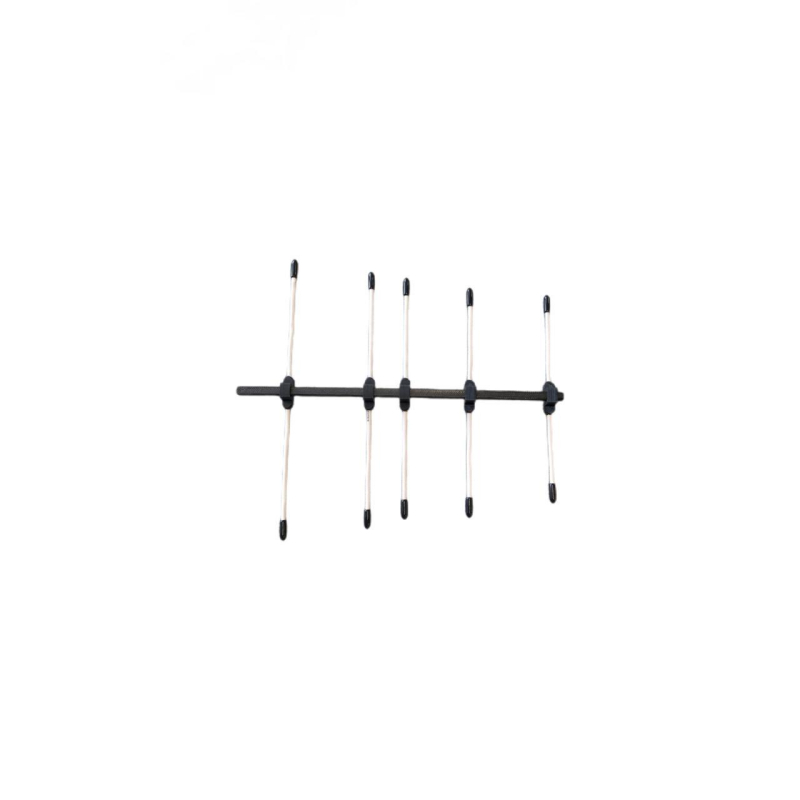

Proprietary Yagi antenna for SKYNOVA drone ground control stations
This Yagi antenna is perfect for use in drone ground control stations where a stable flight range of up to 40 km is required. It features compact dimensions (up to 30 cm) and an efficient design to ensure the best connection even at long distances.
Advantages:
✔️ Small size - easy to transport and mount.
⚙️ Repeater mount - 15x15 mm tube for convenient installation.
SMA-Female connector - allows choosing the optimal cable length.
Rigid construction - the antenna remains intact even after falls.
Azimuth adjustment - secured with a nut for precise orientation.
Lightweight - weighs only up to 100 g for maximum convenience.
Technical specifications:
- Frequency: 780 MHz (700-860 MHz)
- Gain: 10 dBi
- VSWR at center frequency: 1.1
- Material: Polymer, aluminum
- Connector: SMA-Female
- Polarization: Linear (vertical or horizontal)
- Impedance: 50 Ohm
- Flight range: up to 40 km
- Weight: up to 100 g
Long flights, reliable communication, and convenience - this antenna will help you reach new heights in long-range drone control!
