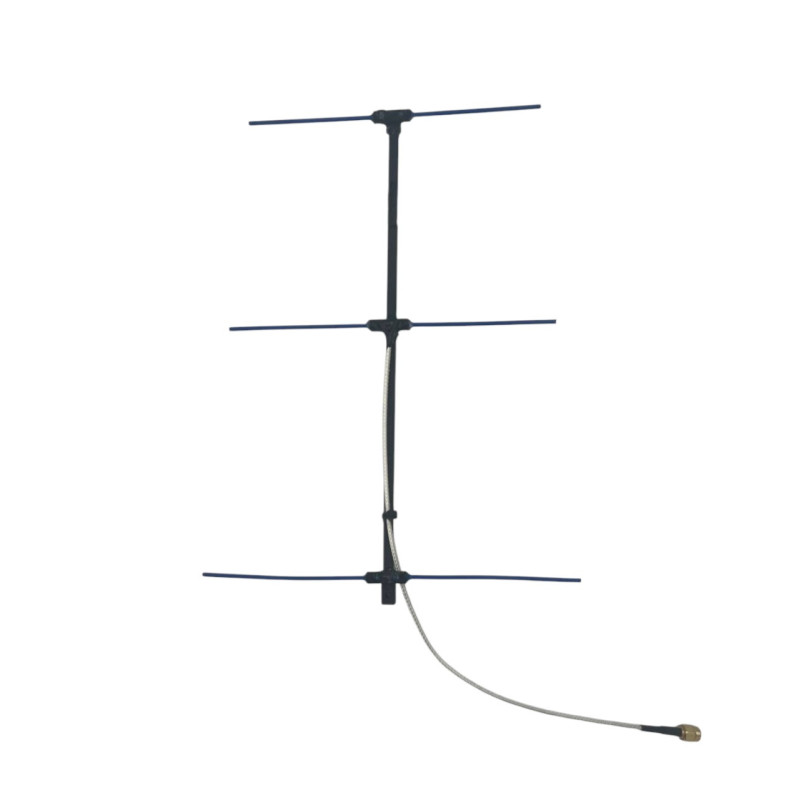

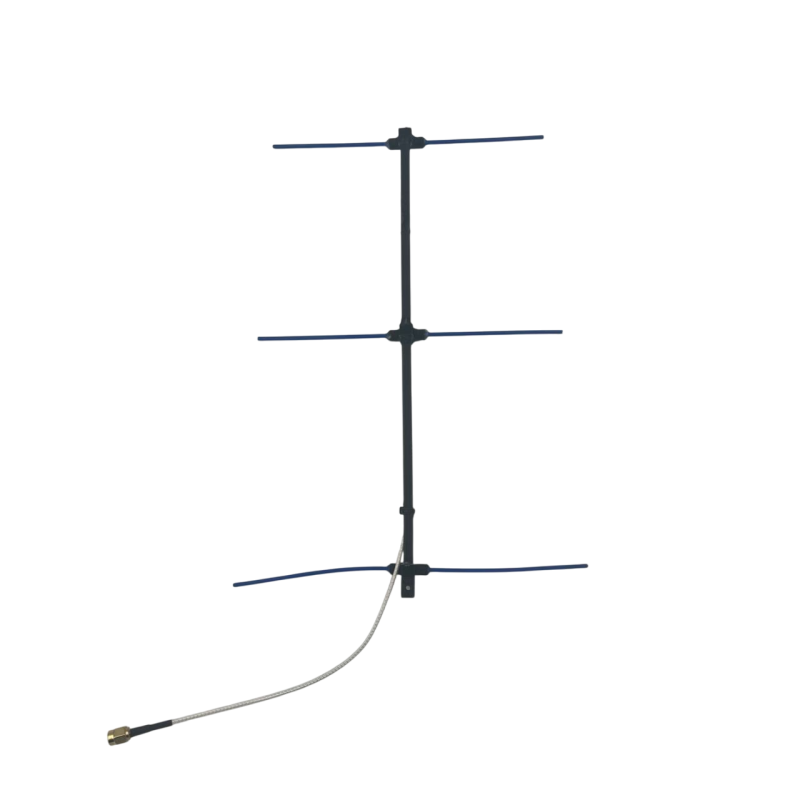

Yagi Antenna 800MHz for Flying Repeaters — SkyReach

Introducing the directional Yagi antenna from SkyReach, specifically designed for use with flying repeaters for FPV drones and other communication devices. This model is engineered to operate in the 800 MHz band and provides stable and powerful communication thanks to its enhanced gain of 7.7 dBi. The antenna features linear polarization and a standard SMA connector, making it compatible with most transmitters and repeaters.

Description and Features

The antenna is made of lightweight and durable plastic, weighing only 22 g, which makes it ideal for mounting on unmanned platforms where minimal mass is crucial. The connection cable length is 240 mm, allowing for convenient device placement and reliable connection. Thanks to its elongated radiation pattern and low VSWR (VSWR not exceeding 1.1), the antenna minimizes output power losses and efficiently directs the signal in the desired direction.

Parameters and Package Contents

All technical specifications are listed below:

• Frequency: 800 MHz (other options available)
• Gain: 7.7 dBi
• Polarization: linear
• Connector: SMA
• Material: plastic
• Cable length: 240 mm
• Weight: 22 g
• VSWR: not exceeding 1.1

Included in the package: 1 x directional Yagi antenna.

The antenna is available in several frequency variants: 700 MHz, 750 MHz, 780 MHz, 800 MHz, 850 MHz, 900 MHz, 950 MHz, 1000 MHz, 1050 MHz. This allows you to choose the optimal version for your equipment's specific needs and regional requirements.

Practical application: the antenna is perfectly suited for mounting on repeaters, ground or flying platforms, as well as for any transmitters and receivers where directionality and increased communication range are required. Thanks to its gain and directional characteristics, the signal transmission range can increase up to 15 km, making this antenna an excellent choice for operations beyond line of sight.

The model belongs to the category: Antennas > Yagi Antennas and is characterized by its compactness, low weight, and ease of installation. It is compatible with most FPV systems and repeaters that use an SMA connector and linear polarization.

By ordering the Yagi 800MHz antenna from SkyReach, you get a reliable tool to increase communication range and enhance the stability of video and data transmission in challenging conditions.
