Yagi Antenna 915MHz 9 Sections 13.4 dBi —

The Yagi-type antenna from — is a directional transceiver designed to amplify signals in a narrow direction. This model is optimized for a nominal frequency of 915 MHz and operates in the 820-960 MHz range, making it a versatile solution for data transmission, boosting GSM/LoRa/IoT networks, creating point-to-point wireless bridges, and other directional applications.

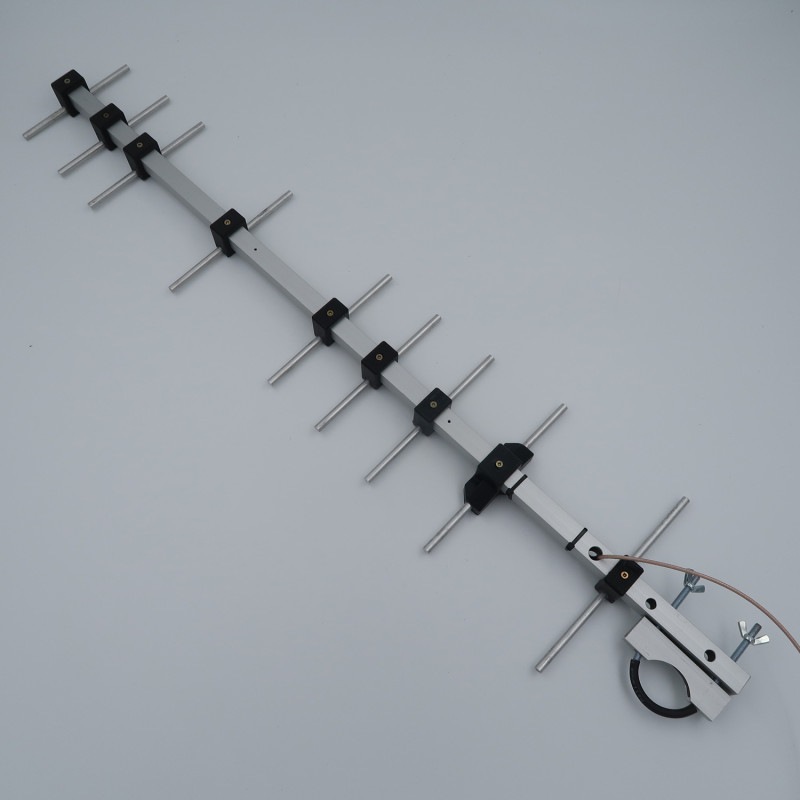

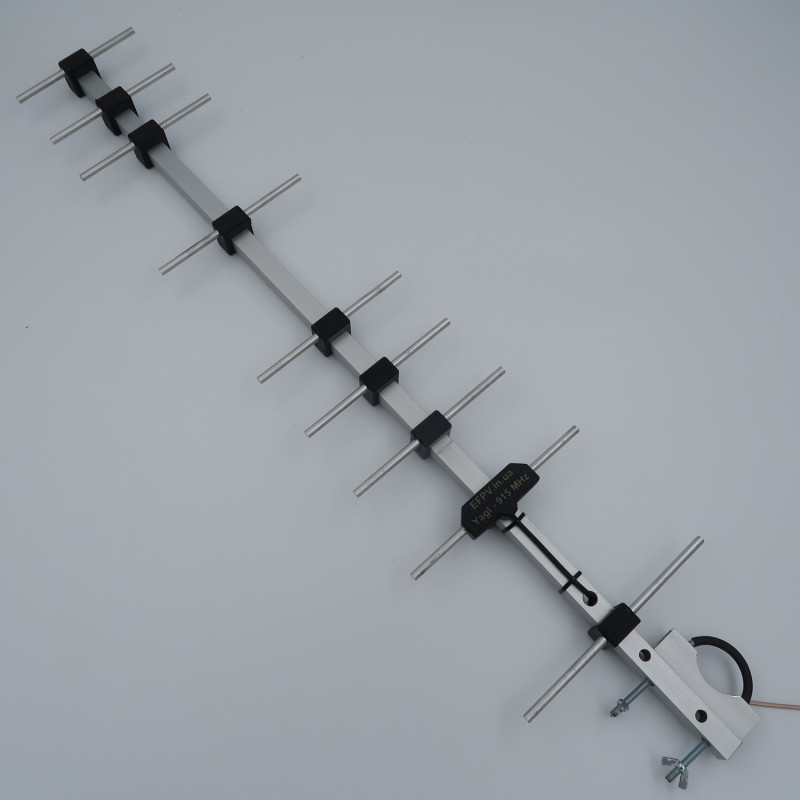

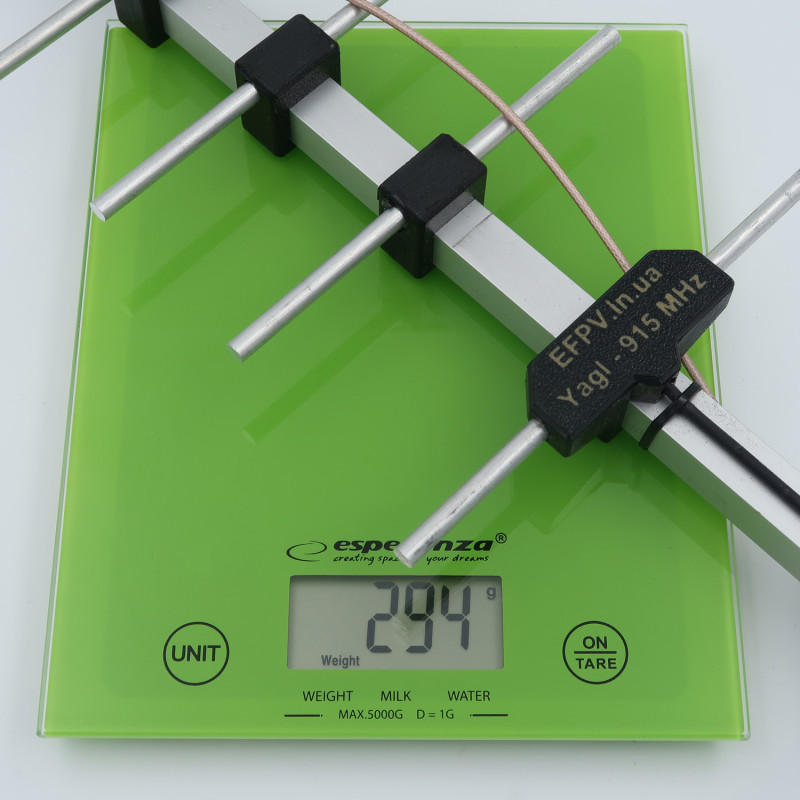

The aluminum element construction provides an optimal combination of strength and low weight: the antenna weighs only 306 g, and its dimensions are 750*162*56 mm. This allows for quick installation on masts, brackets, or miniature structures without complex tools.

Key Features

• Operating frequency range: 820-960 MHz
• Nominal frequency: 915 MHz
• Gain: 13.4 dBi
• Number of sections (directors): 9
• Polarization: linear
• Beam angle: 35°
• Connector: SMA
• Material: aluminum
• Size: 750*162*56 mm
• Weight: 306 g

The 13.4 dBi gain, combined with nine directional sections, provides clear signal directionality and high sensitivity over long distances. A beam angle of approximately 35° allows for an optimal balance between coverage width and communication range — the antenna is effective where precise point-to-point aiming at a remote location is required.

The standard SMA connector ensures compatibility with a wide range of transmitters and receivers; adapters for other connector types can be easily used if needed. The lightweight aluminum casing provides corrosion resistance and a long service life in outdoor conditions with minimal weight, which is important for both temporary and permanent installations.

The antenna is suitable for both amateur and industrial applications: from home LoRa networks and GSM signal amplification to building narrow-beam wireless bridges between points. It is recommended to check the compatibility of the 820-960 MHz frequency range with your devices before installation.

Advantages of the model: high directional gain of 13.4 dBi, nine directors for improved focusing, linear polarization, compact dimensions of 750*162*56 mm and low weight of 306 g, as well as a reliable aluminum casing. The model from will be a good choice if you are looking for a stable directional solution for operation around 915 MHz with a good balance of size, weight, and gain.

Installation and setup: the simple geometry of the elements and low weight allow for quick installation of the antenna on a mast or bracket, without requiring complex tools or additional supports. For precise aiming, it is recommended to use signal level indicators or special mobile applications for measuring reception quality.

Scope of application: GSM/LoRa/IoT signal amplification, building wireless bridges, professional radio communication solutions, and amateur projects where directionality and communication range are critical.

Manufacturer:. Model: Yagi Antenna 915MHz 9 Sections 13.4 dBi.
