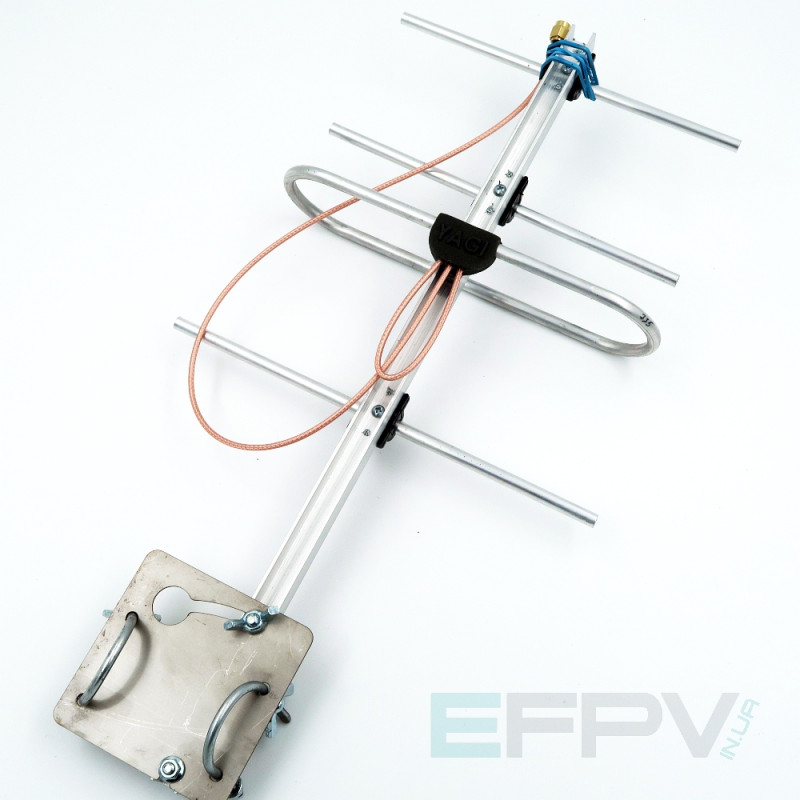

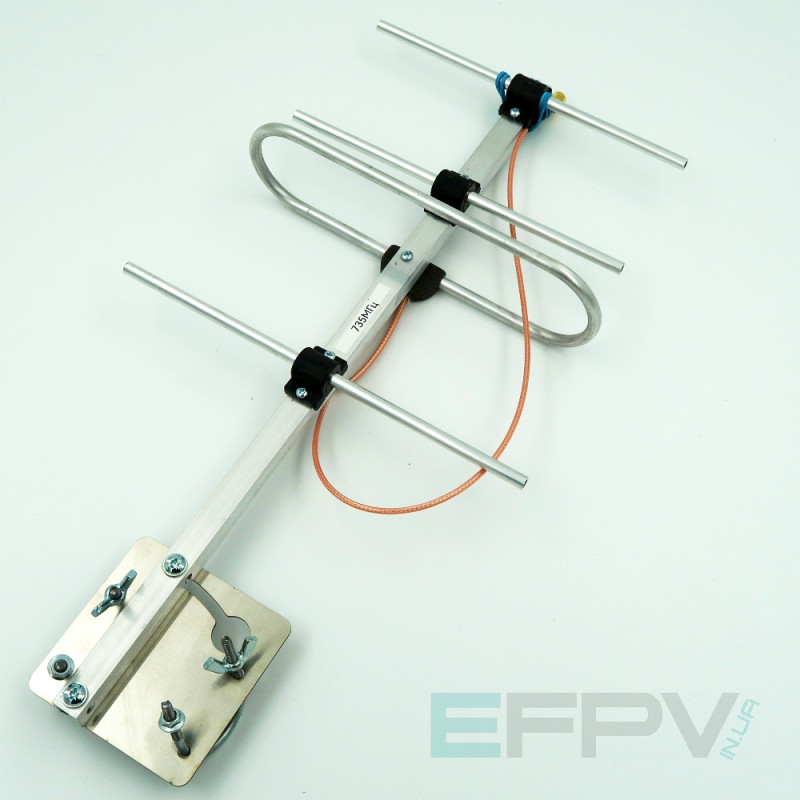

Yagi Antenna 735MHz 4 Sections 8.6 dBi from the manufacturer — is a directional design optimized for operation in the 735 MHz band. The device is designed to amplify signals in radio communication systems, television and wireless networks, as well as for specialized UAV systems and mobile networks. Product category: Antennas > Yagi Antennas.
Description and Advantages
The model provides a focused beam pattern with 8.6 dBi gain, which significantly improves reception and transmission quality in the desired direction. Linear polarization enhances compatibility with most receivers and transmitters in this frequency range, and good directional selectivity reduces the impact of noise and interference from side directions. The frame and elements of the antenna are made of aluminum, which guarantees strength and light weight simultaneously, facilitating installation on roofs, masts, or open areas.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency | 735 MHz |
| Polarization | linear |
| Number of sections (directors) | 4 |
| Beam angle | 40° |
| Connector | SMA |
| Material | aluminum |
| Gain | 8.6 dBi |
| Dimensions | 373*200*56 mm |

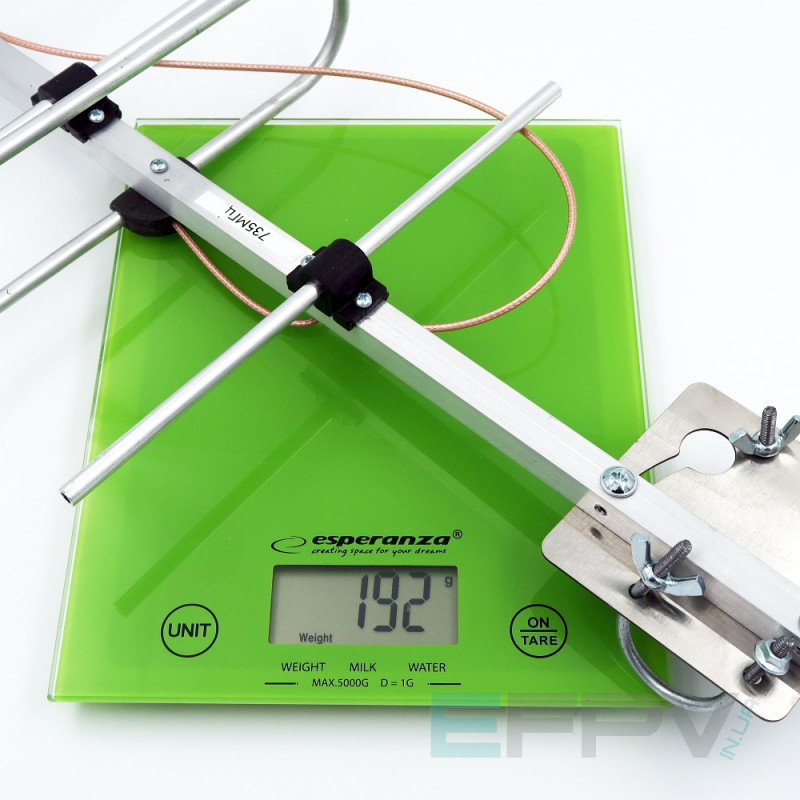

| Weight | 192 g |
Practical Application
The antenna is suitable for installation on standard brackets, masts, or roofs. Thanks to its directionality and 8.6 dBi gain with a 40° beam angle, it effectively increases the signal level in the chosen direction, which is especially important for remote or weak transmitters. The SMA connector ensures simple integration with a wide range of equipment, and the aluminum construction allows the antenna to be operated outdoors with a long service life.
Advantages of this model:
- high signal-to-noise ratio due to the directional beam;
- stable linear polarization for compatibility with most devices;
- lightweight and durable aluminum construction for easy mounting;
- standard SMA connector for universal connection;
- compact dimensions 373*200*56 mm and weight of only 192 g, simplifying installation and adjustment.
The Yagi Antenna 735MHz 4 Sections 8.6 dBi will be an excellent choice for both professional installations and amateur projects requiring reliable and directional signal amplification. It ensures easy integration into existing systems and long-term operation thanks to its quality material and thoughtful design.
