Yagi Antenna 1900 MHz Plastic 8-9dBi ()

The Yagi Antenna 1900 MHz Plastic 8-9dBi from the manufacturer is a directional, high-efficiency antenna that combines a classic Yagi design with a lightweight plastic support base and thin metal conductors. The model is designed to operate in the 1900 MHz band and provides 8-9 dBi gain with linear polarization, making it an optimal choice for tasks where weight, mobility, and low visibility are important.

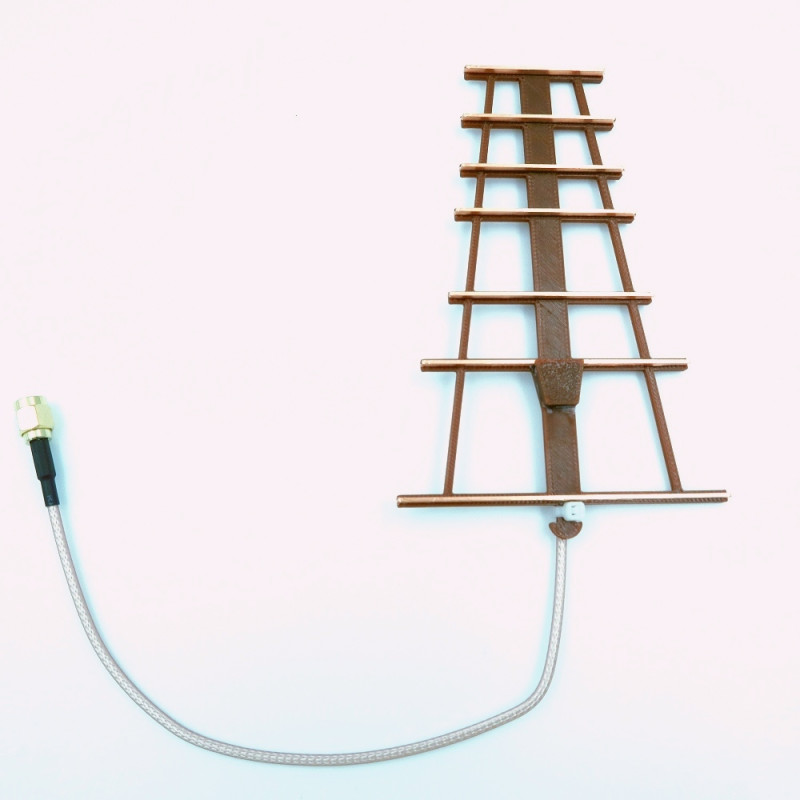

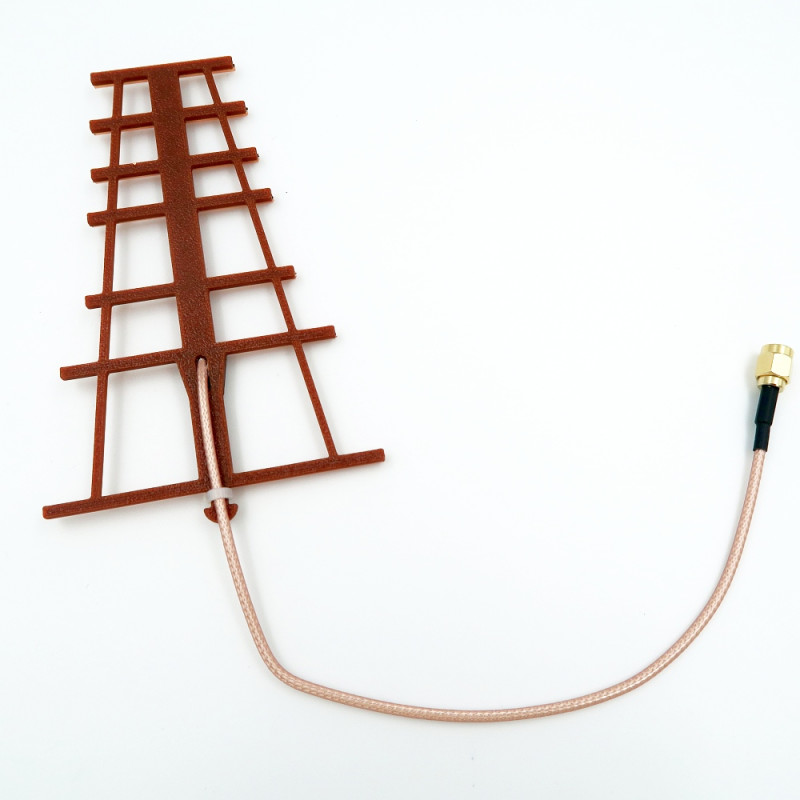

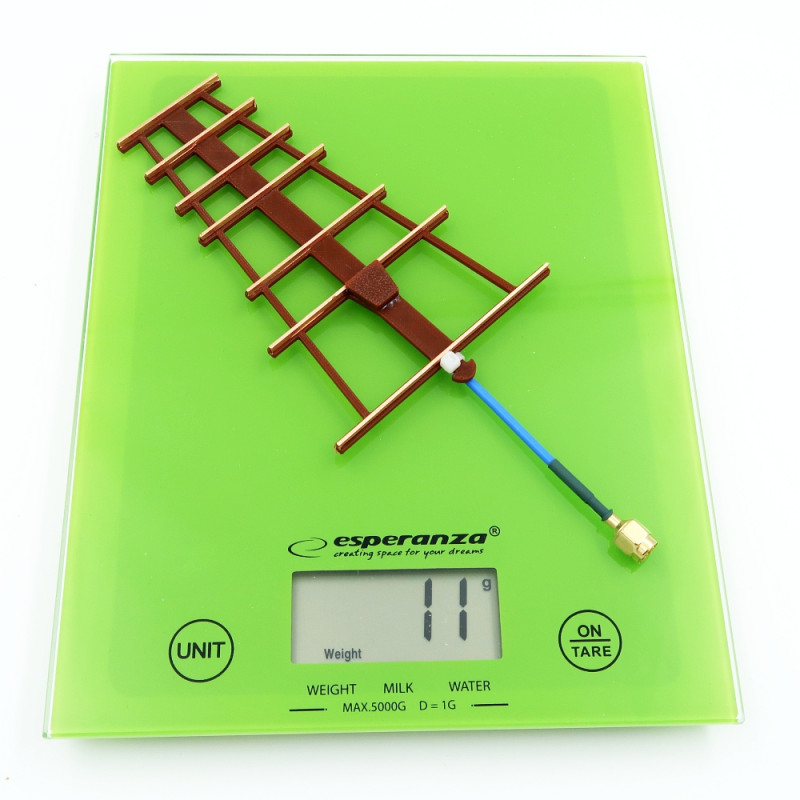

Structurally, the antenna features an active element (dipole), a reflector, and 7 directors, which allows it to form a narrow beam angle of 37° and focus energy in the desired direction. Material: plastic with metal conductors on a plastic base, ensuring low weight — only 11 g — and compact dimensions of 122*80*3 mm. The SMA connector and flexible pigtail make connection simple and convenient for mounting on ground platforms, antenna masts, or unmanned aerial vehicles.

Features and Benefits

• Frequency range: 1900 MHz;
• Gain: 8-9 dBi — effective signal amplification for medium distances;
• Polarization: linear — stable reception and transmission;
• Number of sections (directors): 7 — for a narrow and stable beam;
• Beam angle: 37° — focused coverage without unnecessary scattering;
• Connector: SMA — compatibility with a wide range of transceivers;
• Cable characteristic: flexible pigtail — ease of installation and setup;
• Material: plastic with metal conductors — low weight and increased resistance to mechanical stress.

The antenna is designed for operation in field and challenging conditions, making it suitable for both civilian telecommunications and radio communication tasks, as well as specialized military applications: directional interception of radio transmissions, reliable communication between units, mounting on drones for reconnaissance and signal retransmission. Plastic elements reduce the antenna's visibility in the field, while metal conductors ensure the necessary radiation and reception efficiency.

Technical Specifications

Thanks to the parameters of this antenna, it can be successfully used for extended communication over medium distances with energy focused in a specific direction. The lightweight body and small dimensions make mounting on unmanned platforms less critical in terms of load on the frame or platform. The SMA connector ensures quick connection to existing equipment without additional adapters in most cases.

If you need a low-profile, lightweight, yet effective directional antenna for special tasks — the Yagi Antenna 1900 MHz Plastic 8-9dBi will be an excellent choice. Before purchasing, we recommend clarifying compatibility with your equipment and possible mounting solutions for your specific task with a manager.
