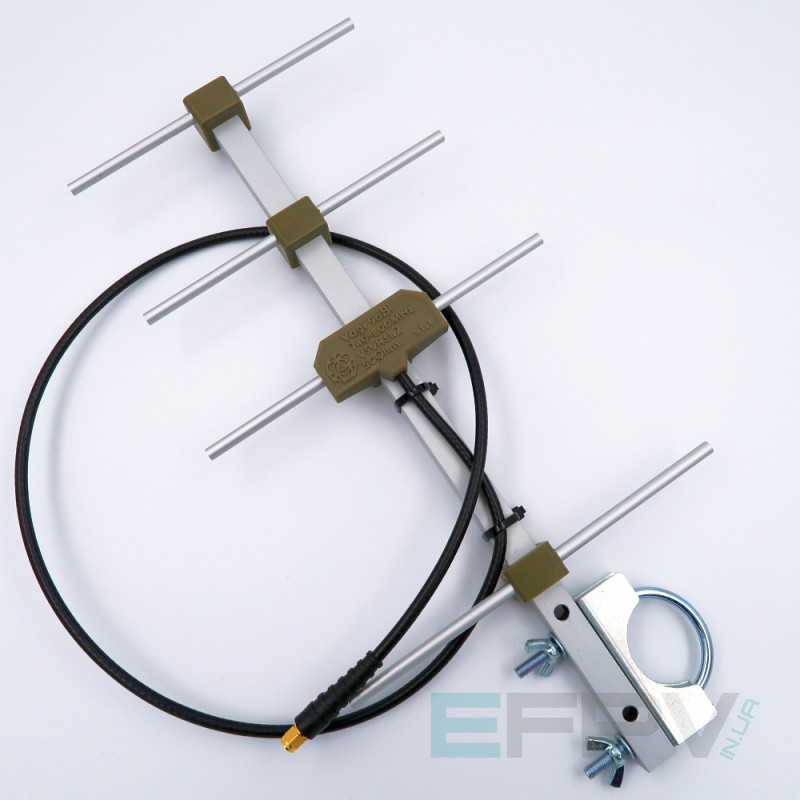

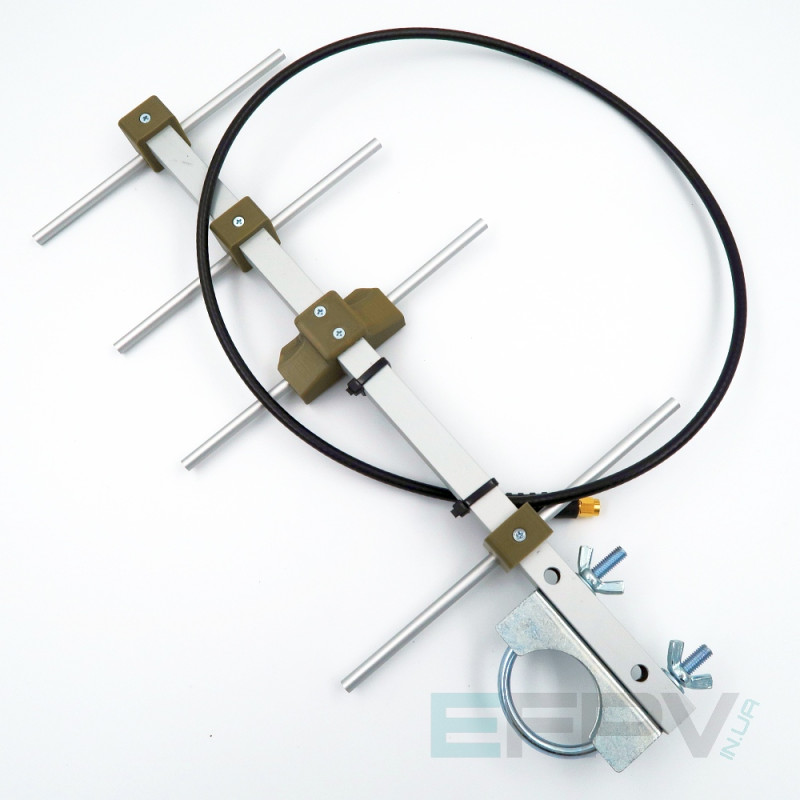

Yagi Antenna 720-800MHz 4 Sections, 8.6 dBi from
The Yagi antenna series is a directional, high-efficiency radio element designed to amplify reception and transmission in the 720-800 MHz range. This model is ideal for improving mobile signal, local radio communication, specialized wireless solutions, and systems requiring high directivity and communication stability. The aluminum construction ensures lightness, corrosion resistance, and durability in outdoor conditions.
The antenna has a nominal gain of 8.6 dBi and linear polarization, allowing for stable, high-quality signal reception at a significant distance from the source. Compact dimensions (371×191×31 mm) and low weight (276 g) simplify installation and orientation without the need for bulky mounting. The standard SMA connector ensures compatibility with a wide range of equipment and ease of connection.
Key Advantages
- High directivity and communication stability for remote and directional installations;
- Aluminum body and elements — strength with low weight;
- Compact dimensions 371×191×31 mm and weight 276 g for easy installation;
- Four sections (directors) provide an optimal balance between gain and beamwidth;
- SMA connector for simple integration with equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range | 720-800 MHz |
| Gain | 8.6 dBi |
| Polarization | Linear |
| Number of Sections (Directors) | 4 |
| Beam Angle | 40° |
| Connector | SMA |
| Material | Aluminum |
| Size | 371*191*31 mm |
| Weight | 276 g |
Model: Yagi Antenna 720-800MHz 4 Sections 8.6 dBi. Manufacturer:. Product Type: Antennas > Yagi Antennas. The antenna is designed for installations where precise signal directivity, reliability, and ease of connection via a standard SMA connector are important. Before installation, ensure the 720-800 MHz frequency band is compatible with your equipment.
Mounting and Setup: Due to its low weight and dimensions, mounting does not require complex holders; however, to achieve maximum gain, the antenna must be correctly oriented relative to the signal source — in case of unstable reception, it is recommended to test the position and fine-tune the direction. The aluminum construction guarantees long-term outdoor operation under conditions of regular inspection of fasteners and the connector.
Application: Effective for amplifying mobile communications, local radio networks where directivity with a moderate beamwidth of 40° is required, as well as for specialized solutions in industrial and domestic installations. The antenna allows for stable signal reception at a significant distance from the transmitter with proper aiming.
This antenna can be purchased at the Flash Army online store — it will be a reliable solution for improving communication quality in your system. With its characteristics: 720-800 MHz range, 8.6 dBi gain, 4 sections, SMA connector, aluminum material, size 371×191×31 mm, and weight 276 g — the model combines compactness and efficiency.
Other recommendations: The antenna is optimal for applications where directivity with a moderate beamwidth of 40° is important; in case of unstable signal, adjust the antenna's position and re-measure to achieve maximum reception level.
