Yagi Antenna 2700-2800 MHz Plastic 8-9dBi ()

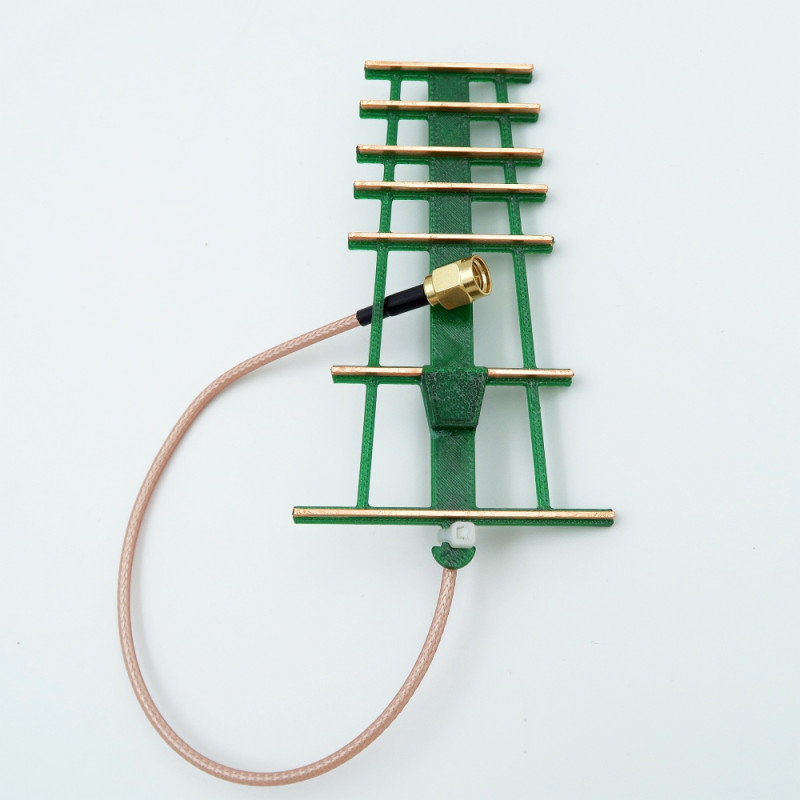

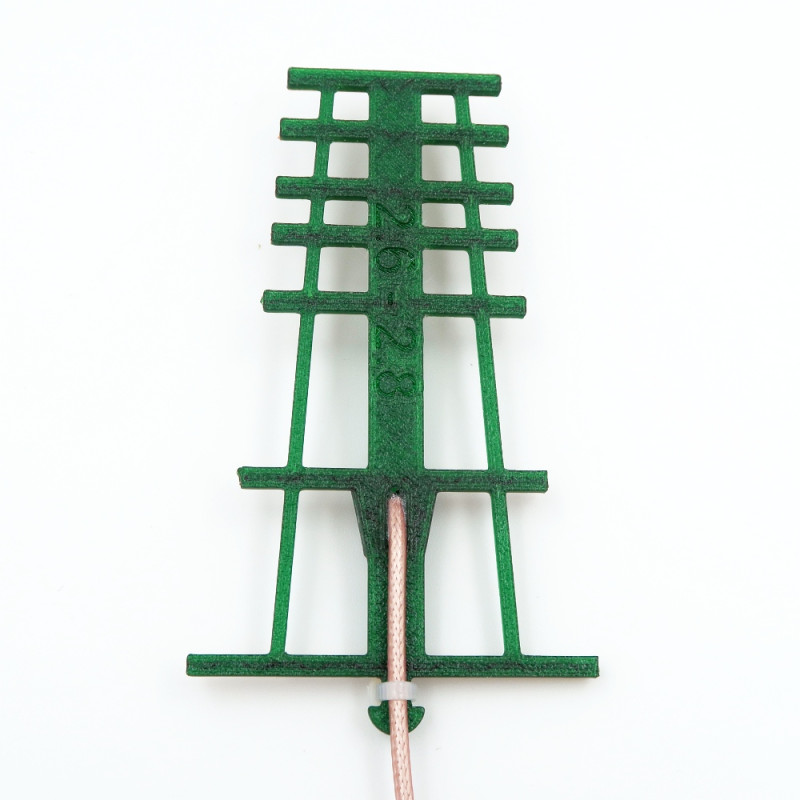

Introducing the Yagi directional antenna, model Yagi Antenna 2700-2800 MHz Plastic 8-9dBi from manufacturer. This is a lightweight and compact directional antenna designed for efficient operation in the 2700-2800 MHz range with a nominal gain of 8-9dBi. The design is based on an active element (dipole), a reflector, and seven directors mounted on a plastic carrier base with integrated thin metal conductors, ensuring a combination of small dimensions and reliable electrical characteristics.

Design Features and Interfaces

The antenna features linear polarization and is equipped with an SMA connector. The cable part is made as a flexible pigtail, simplifying connection to various devices. The beam angle is 37°, providing narrow directivity for targeted signal reception and transmission. The antenna's overall dimensions are 100*57*4 mm, and its weight is only 8 g, making it ideal for mobile and field applications.

Key Features

• Frequency range: 2700-2800 MHz.
• Gain: 8-9dBi.
• Number of sections (directors): 7.
• Polarization: linear.
• Connector: SMA.
• Cable characteristic: flexible pigtail.
• Dimensions: 100*57*4 mm; weight: 8 g.
• Housing material: plastic with integrated thin metal conductors.

Application

This form-factor Yagi antenna is widely used in military and specialized conditions to ensure reliable radio communication and electronic reconnaissance (SIGINT). Thanks to its narrow directivity and high gain, it is suitable for directional interception or focused signal transmission, installation on unmanned platforms for reconnaissance and relay, as well as for field and portable communications. The plastic housing with integrated metal conductors makes the antenna less noticeable to reconnaissance assets and more resistant to corrosion and mechanical stress.

Technical Specifications

This model belongs to the category: Antennas > Yagi Antennas and is manufactured by brand. Thanks to its low weight and compact dimensions, the antenna is easily mounted on various platforms, including drones, handheld portable units, and stationary repeaters. The housing material ensures durability in field conditions, and high-quality metal elements provide stable radio frequency performance.

If you need a directional antenna with an optimal weight-to-efficiency ratio for specialized tasks — the Yagi Antenna 2700-2800 MHz Plastic 8-9dBi model from will be a reliable choice.
