EW SYSTEM «HYDRA»

OPERATING PRINCIPLE:

The system operates on the principle of automatic reaction to an enemy signal:
Auto-detection continuously scans the air in passive direction-finding mode.
Upon detecting a control or transmission signal (e.g., from a drone), it determines the frequency.
Automatically activates the entire EW system.
The jamming signal is instantly transmitted through the antenna located directly on the module, without losses through cables or connectors.

POWER AND CONTROL:

The entire system is powered by a 3 kW/120Ah Li-Ion battery, designed for long-term autonomous operation.
Control is performed via a wired remote with auto-detection, connected by a separate cable.
The system supports charging from both 220V and 12V from a car (with battery protection).

DESIGN FEATURES:

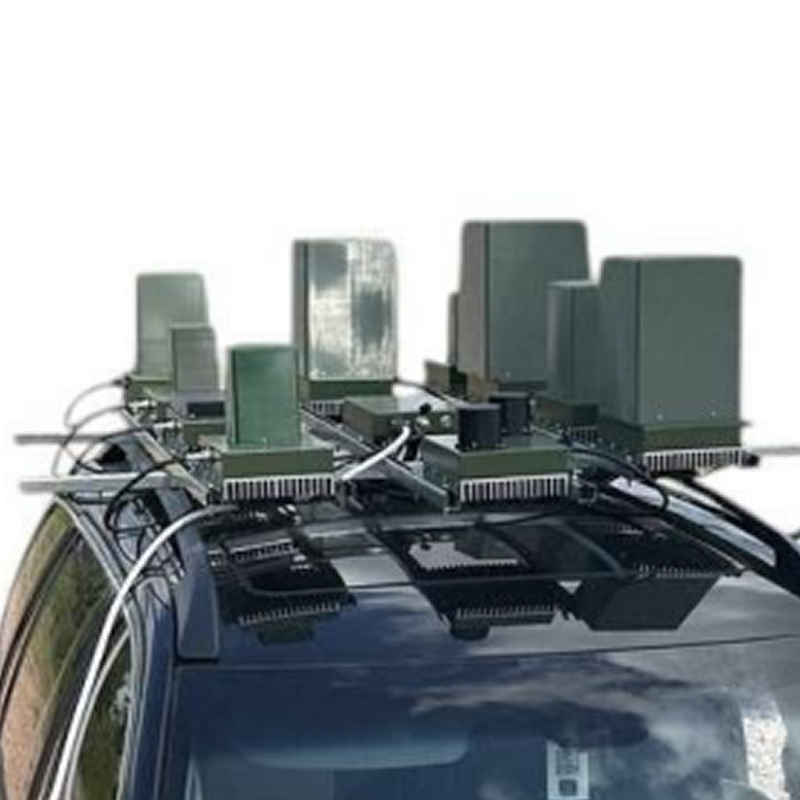

Each jamming unit is independent, compact, and easily installed on vehicle roofs or other platforms.
The antenna housing is manufactured using 3D printing, which reduces weight and allows adapting the shape to the desired radiation pattern.

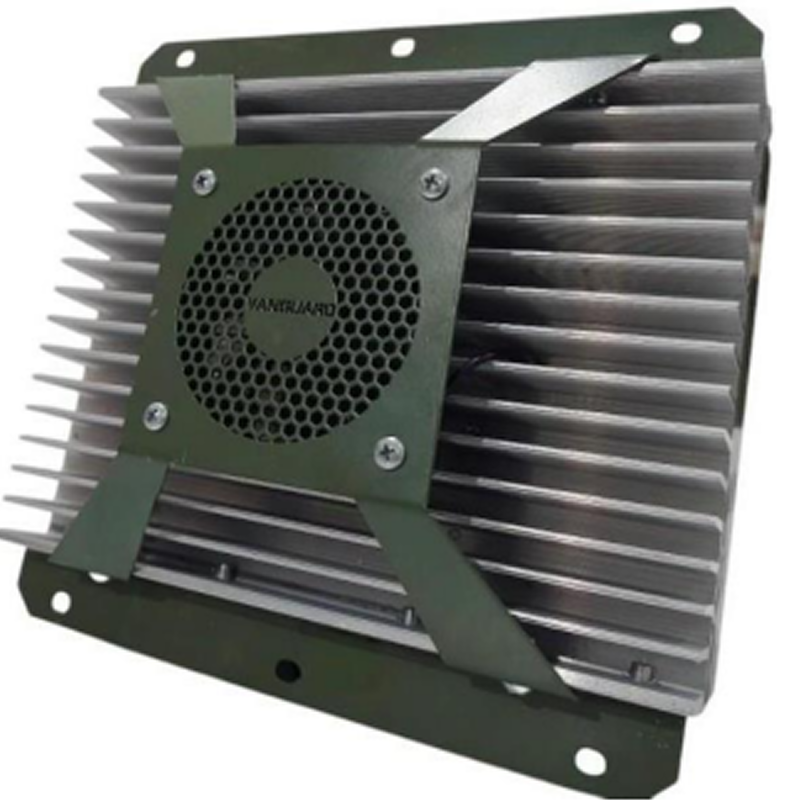

Active cooling of each module ensures stable operation under prolonged load.
The entire system is scalable – frequencies can be added or replaced, configuring the system for a specific mission.

ADVANTAGES OF THE «HYDRA» SYSTEM:

No losses on cables and connectors – the signal is fed directly to the antenna.
Autonomous operation of each module – failure of one element does not affect others.
Instant reaction to threats – due to automatic activation.
Inconspicuous placement – modules are dispersed, not creating a visually prominent system.
Flexible configuration – from 1 to 16 frequencies.
Suitable for both stationary and mobile applications.

1. KIT

Distribution box 1 pc
Omnidirectional antenna with integrated module (with power cable to each)
11 pcs (dome)
2 pcs (directional)

Wired remote with auto-detection 5m 1 pc
Rechargeable battery 3Kw 120Ah 1 pc
Car charging cable 12V 4m (Car battery discharge module. Undervoltage protection) 1 pc
AC power cable 220V 1 pc
Battery-EW connection cable (PVSng-LS) 4.5m 1 pc

2. TECHNICAL SPECIFICATIONS OF THE «Hydra» EW JAMMER

Total weight 60kg
Dimensions of server rack with control unit and battery 160x150x44cm
Total consumption 1300W
Total jamming output power 650W
Operating voltage range 24V-28V
Active cooling (fans) Yes
Waterproof control buttons Yes
Module temperature sensor Yes
DC-DC voltage stabilizer Yes
Jamming module 50W
300-400MHz, 400-500MHz, 500-600MHz, 700-800MHz, 800-900MHz, 900-1000MHz, 1000-1100MHz, 1100-1200MHz, 2100-2300MHz, 2100-2300MHz, 2500-2700MHz (dome antennas)
2.4GHz, 5.8GHz (directional antennas)

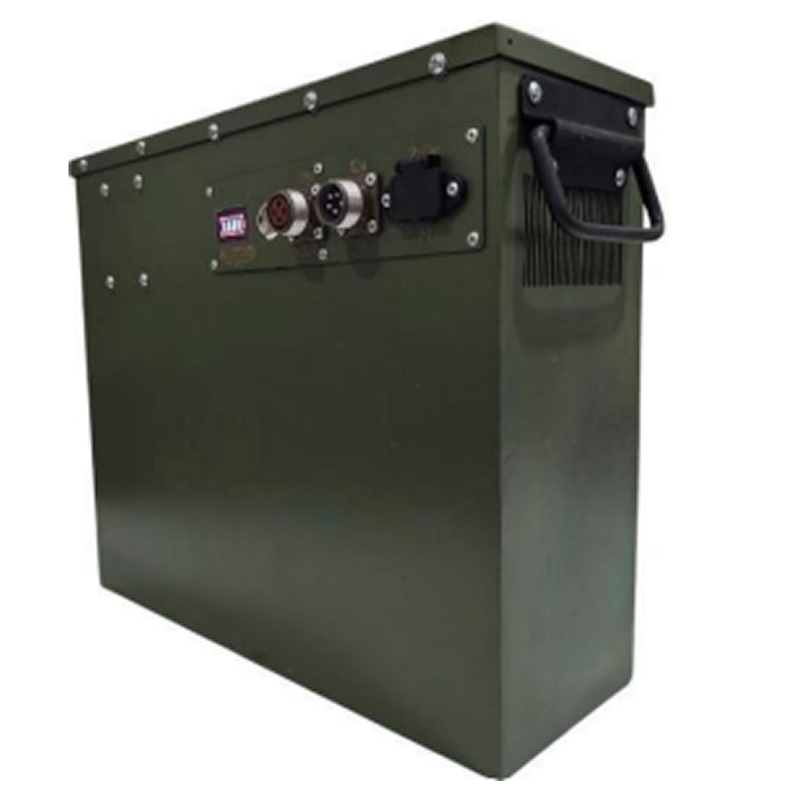

3. RECHARGEABLE BATTERY

Li-Ion (NMC) 7s2p battery
Dimensions 160x420x360
Weight 17kg
Charging from 220V mains. Full charging time for 120Ah battery 6h
Charging from 12V mains. Full charging time for 120Ah battery 6h
Battery charge indicator (with button) Yes
Car 12V battery discharge controller (charges only when engine is running) Yes
Housing Metal, IP60
220V AC-1 charger connector
Optional XT60, XT90, USB Type-C, cable with charge limiter from 12-24V.

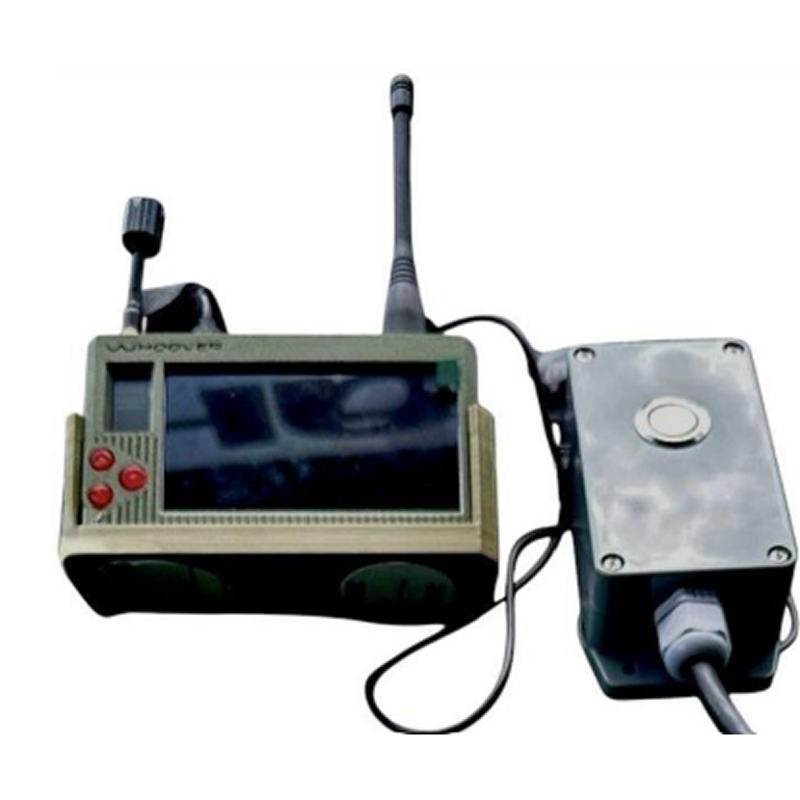

4. TECHNICAL SPECIFICATIONS OF THE WIRED CONTROL REMOTE

Cable type PVSng-LS
Cable cross-section 3x1
Cable length 5m.
Power indicator light Yes
Control remote connector GX-20 3pin
Auto-detection. Automatic system on/off Yes

5. TECHNICAL SPECIFICATIONS OF ANTENNAS

Antenna type Dome and directional
Cable type RG402/RG405
Connector type SMA
Jamming range 100-200m (at 1.5-2.5km 1W) 200-300m (at 3-4km 1W)
*The manufacturer reserves the right to make design changes in accordance with combat circumstances at the front, without violating the pricing policy of the product.
*The configuration and number of bands may vary, and accordingly, the price also changes. Also, the detection function works in conjunction with the Kozhan detector, so in the maximum configuration, we offer the Kozhan and EW kit
