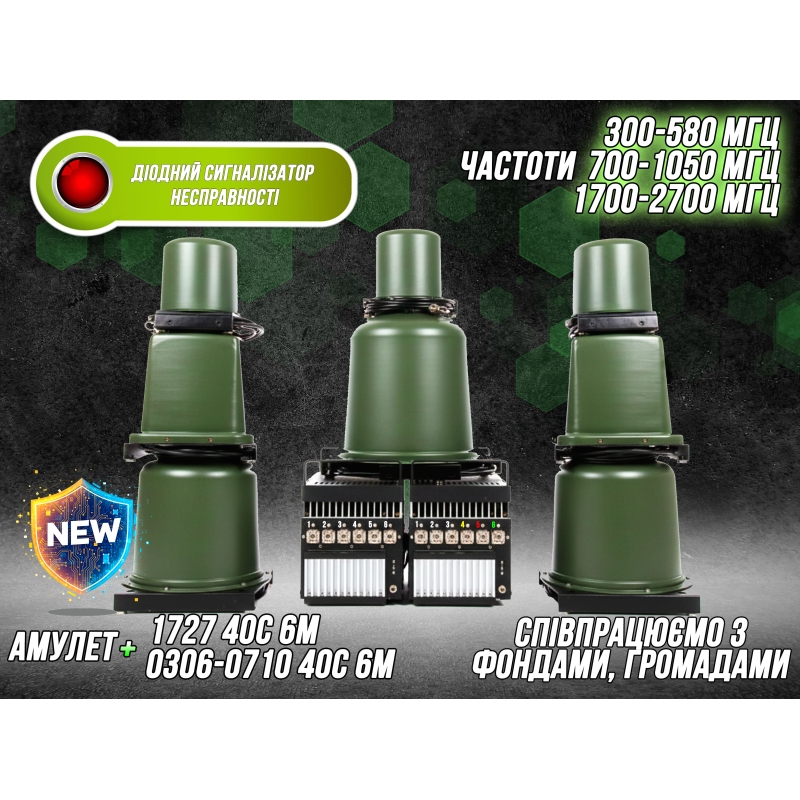

EW System AMULET 0306-0710 + 1727
The AMULET-0306-0710 40C 6M + AMULET-1727 40C 6M vehicle-mounted dome-type EW system is a high-tech solution for neutralizing kamikaze drones and other UAVs, designed for use in complex combat conditions. Thanks to innovative technologies, these devices provide complete protection within a radius of up to 150 m.

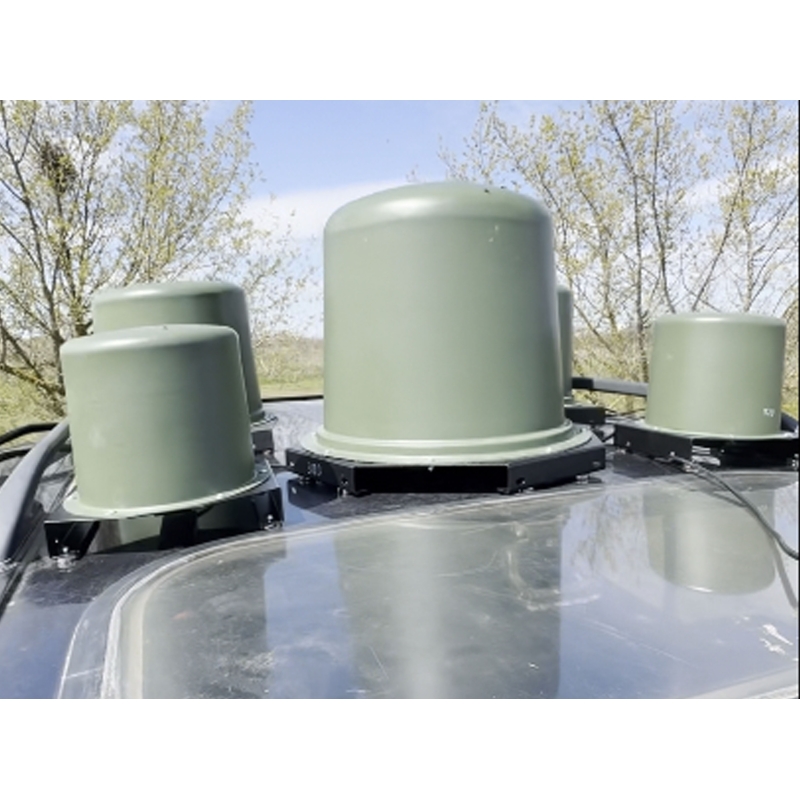

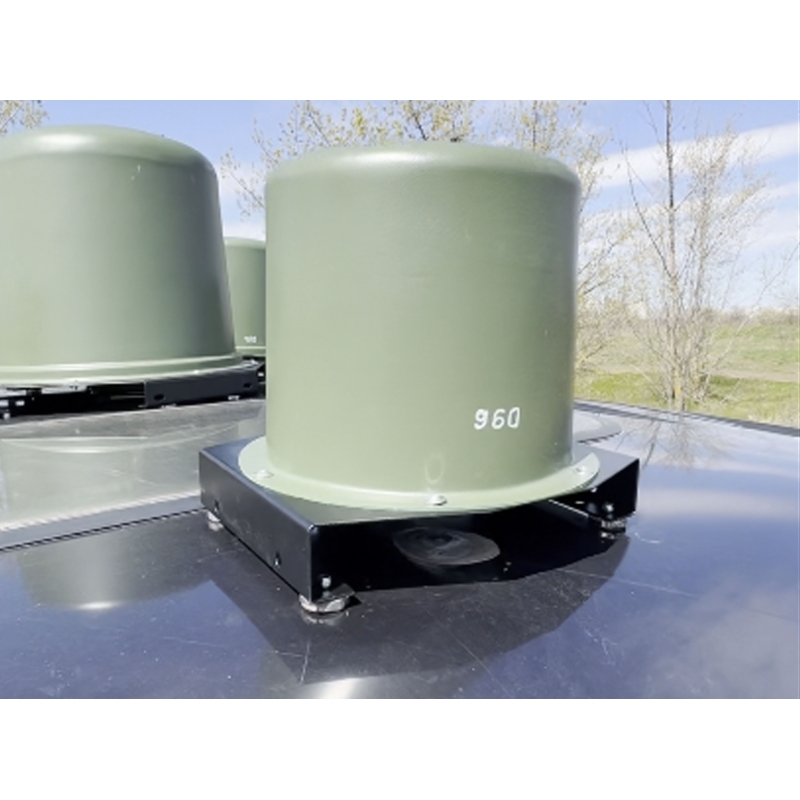

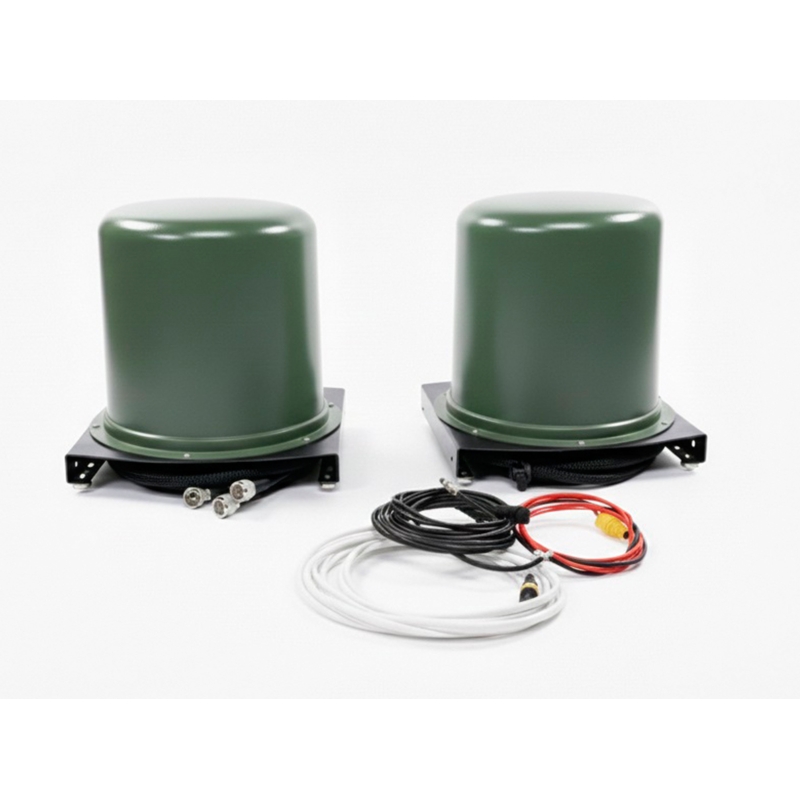

- Spherical Protection Field: The complex of twelve antennas (located in eight compact "domes" on the roof) creates an ideal dome field that effectively blocks drone control signals.
- High Reliability: Resistance to vibrations and shocks ensures stable operation even in harsh front-line conditions.
- Energy Efficiency: The devices are equipped with autonomous batteries that are easily charged both from a vehicle and from a standard power grid.
- Possibility of restoring all elements and components in case of damage or impact.
Key Features:
AMULET-1727 40C 6M
- Suppression frequency range: 1.7 - 2.7GHz (1700-2700MHz)
- Angular radiation sector 360 degrees
- Protection class IP 21
- Radiation generator power 6*40±5 W (all modules with circulators)
- Operating range: not less than 50 meters
- Continuous operation time: up to 60 min. (Li-ion 6S 25.2 V x 2)
- Weight: 15 kg
- Dimensions: 430 mm * 260 mm * 196 mm

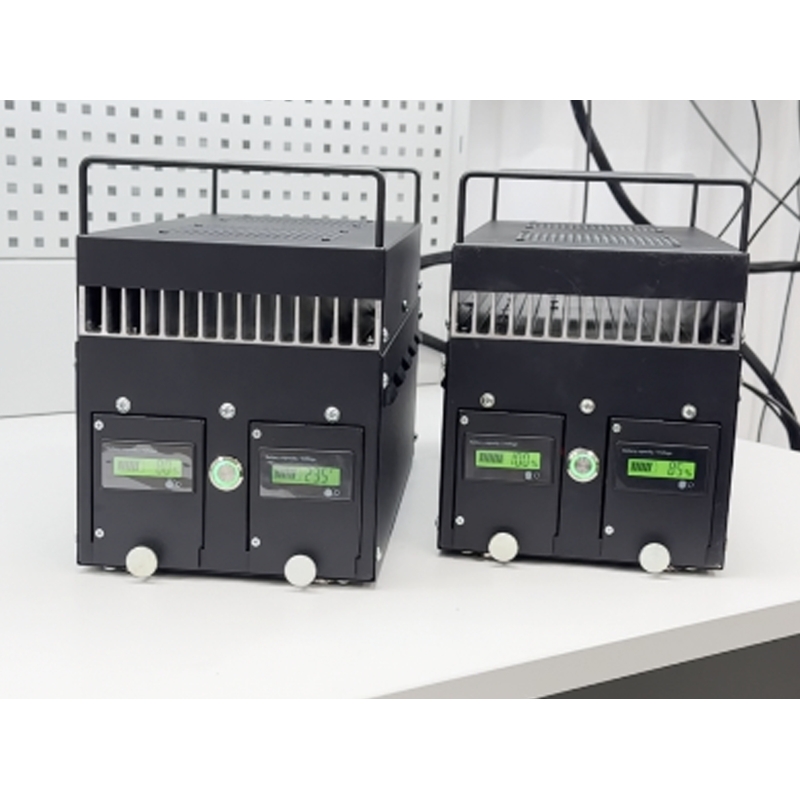

- Audible low battery indication
- LED indication in case of jammer module failure, which allows identifying the malfunction and seeking service if necessary.
AMULET-0306-0710 40C 6M
- Suppression frequency range: 300–580 MHz, 700-1050 MHz
- Angular radiation sector 360 degrees
- Protection class IP 21
- Operating range: not less than 50 meters
- Power: 6m×40±5 W, (all modules with circulators)
- Continuous operation time: up to 60 min. (Li-ion 6S 25.2 V x 2)
- Weight: 14 kg
- Dimensions: 430 mm * 260 mm * 196 mm
- Audible low battery indication
- LED indication in case of jammer module failure, which allows identifying the malfunction and seeking service if necessary.

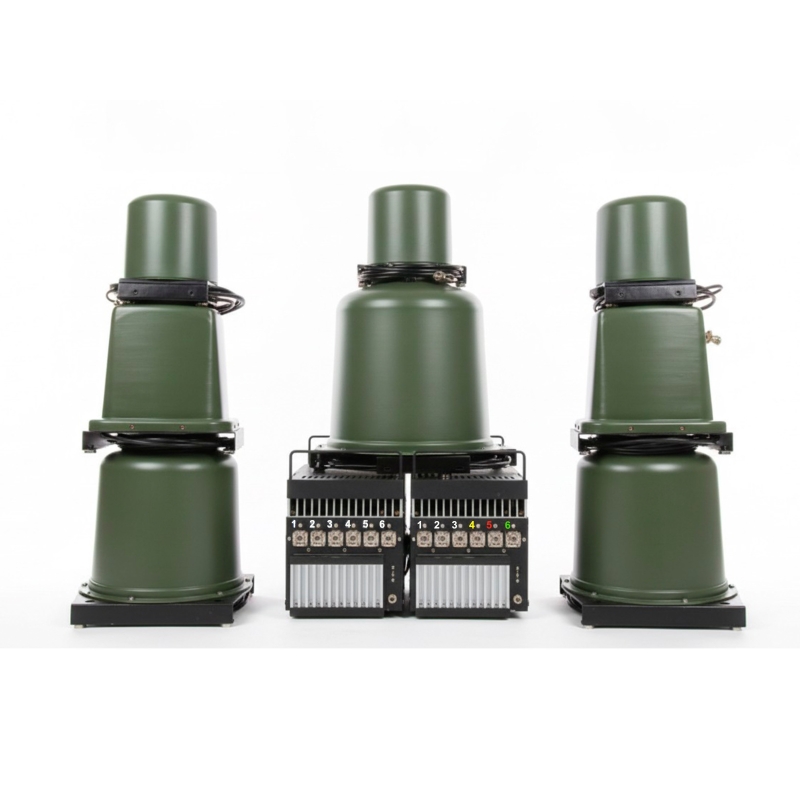

Package Contents:

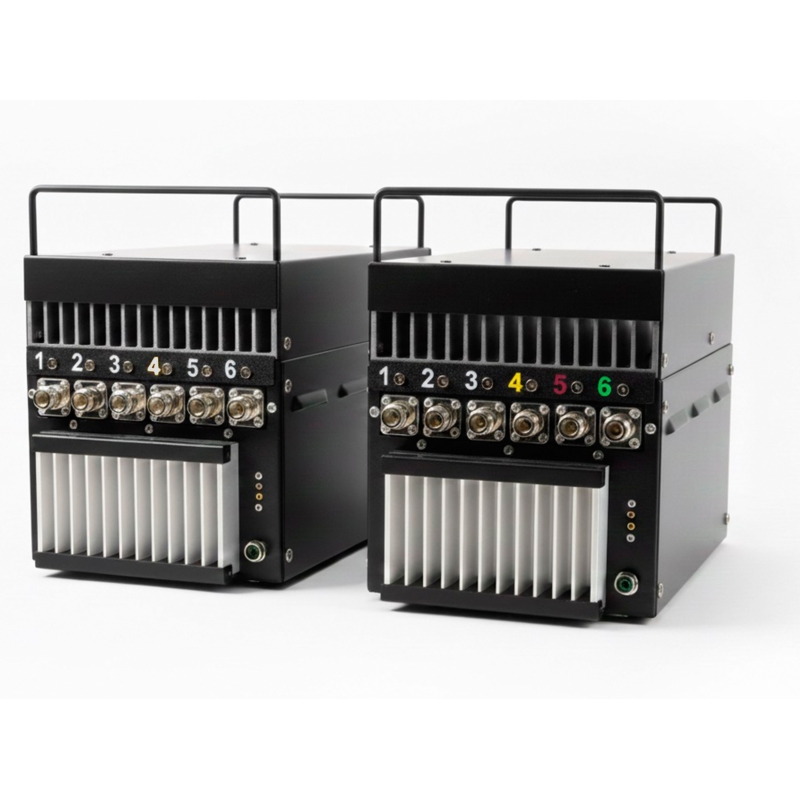

- jamming generator unit with batteries

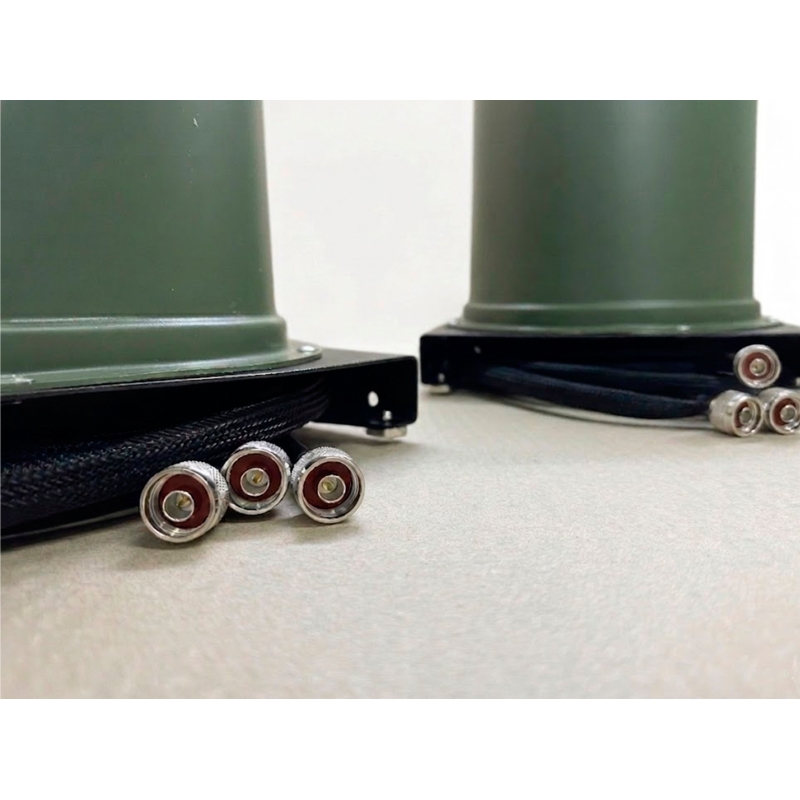

- external antennas with coaxial cables
- remote start button
- battery charger for 6s 220V assembly
- voltage converter from battery for recharging batteries while the vehicle or equipment is moving
- manual - instructions
Advantages of AMULET devices

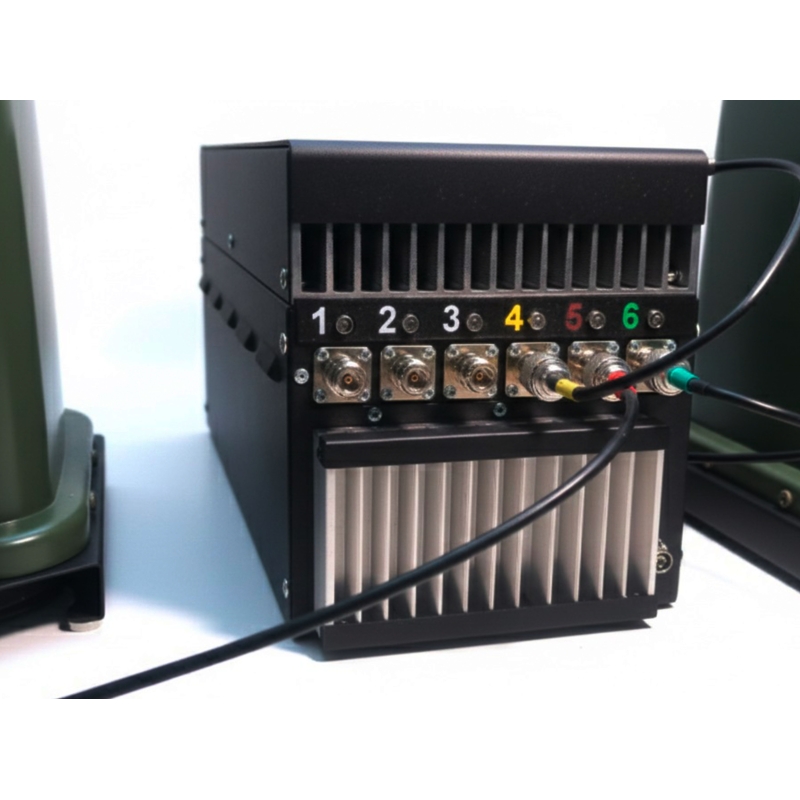

LED notification in case of module(s) malfunction. Now there is no need to check the device before each trip; in case of malfunction or partial damage, antenna loss, or device damage for other reasons, the LED indicator will notify which module and at what frequencies is not working.
- Versatility: Suitable for mounting on equipment or vehicles.
- Autonomy: The battery system supports alternative power sources (ECOFLOW, etc).
- Complete Set: Chargers, cables, fuses, instructions.
- Easy Installation: Does not require special technical knowledge.
- Two chargers for car and mains power

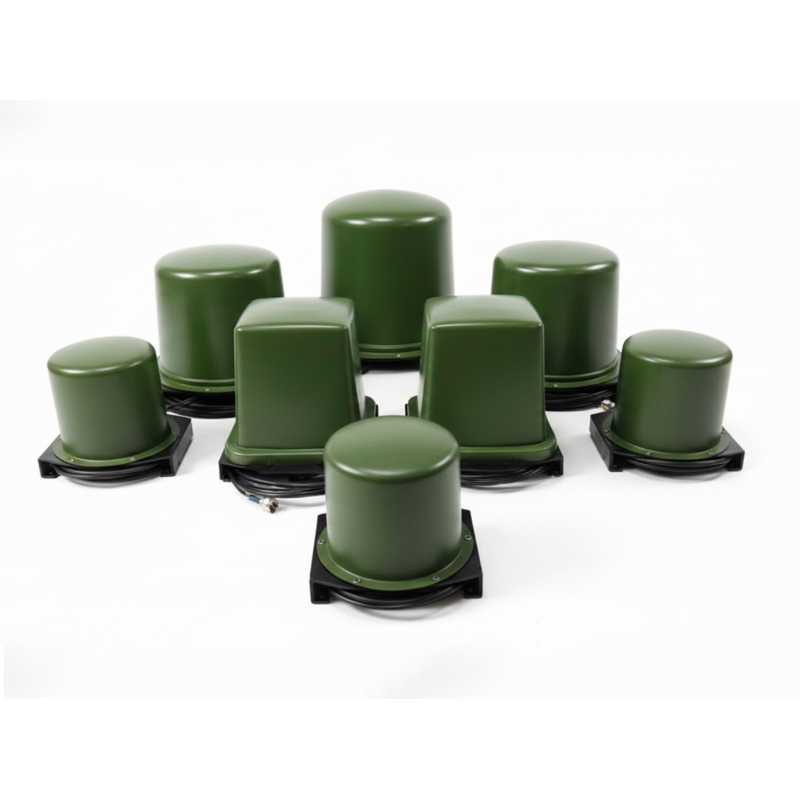

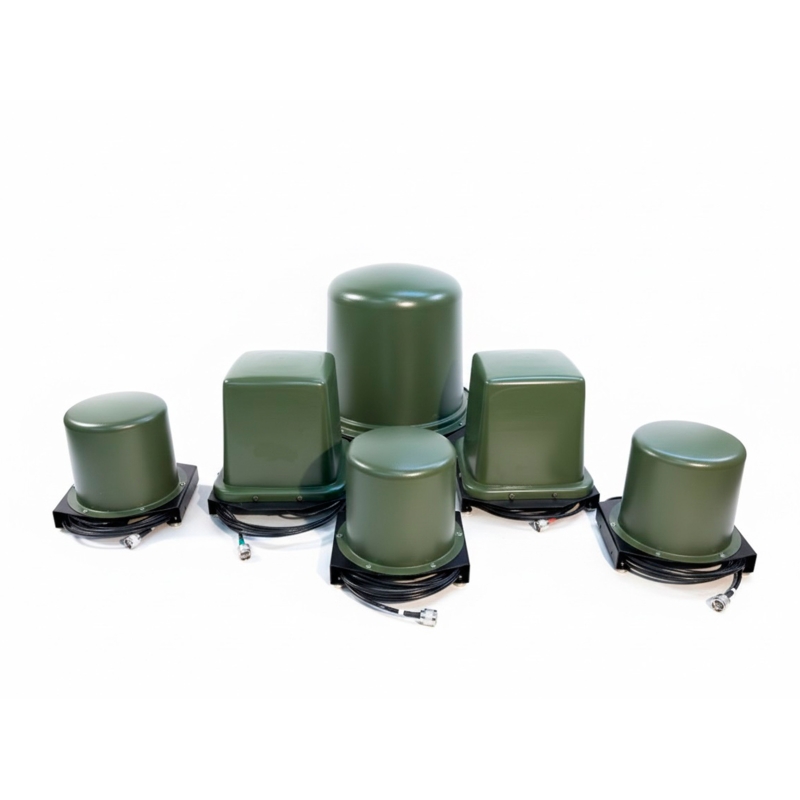

- External spherical action antennas
- Remote on-off button
- Calibration of each module, output power corresponds to declared, we do not assemble "out of the box" without measuring the actual output power.
- Calibration of each antenna with VSWR not higher than 1.5 (we have a full closed production cycle)
Before shipping to the client, each device undergoes a series of checks:
- checking fasteners, components, dimensions, wires
- checking frequency range and radiation power
- automated on-off stress test lasting 45 min.
- separate antenna check
