EW Jammer Babai 6M FPV 200-1100 MHz Trench/Vehicle Babai

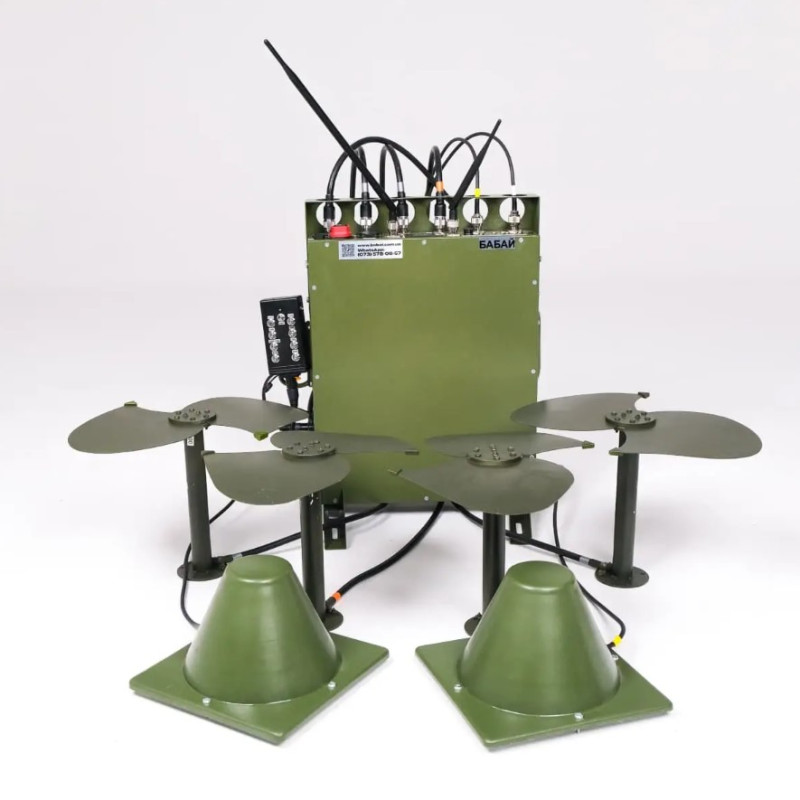

EW Jammer Babai 6M FPV — a specialized trench/vehicle electronic warfare system designed to protect positions from FPV drones. The device from the Babai brand is intended for deployment in fortifications, trenches, and stationary positions, providing effective suppression of control and video transmission channels in the 200–1100 MHz range.
The system is equipped with six effective jammers, which combined provide a total radiated power of over 370+ W. This allows for the creation of a protective dome with 360° coverage and a suppression range of 50 to 200 m, ensuring reliable protection for infantry positions and command posts.
Automation and Intelligence
A key feature is its full automatic operation. The built-in spectrum analyzer continuously scans the air, instantly detects FPV drone signals, and automatically activates the corresponding jammer or all modules simultaneously for maximum effectiveness. The system supports diagnostics and configuration via Wi-Fi, features voice alerts, and a digital battery charge indicator display.
Power, Autonomy, and Dimensions
The device is powered by a built-in 40 Ah (24 V) battery or FPV batteries. The battery provides autonomy from 40 to 60 minutes depending on the operating mode and the number of active jammers. The system's power consumption is 1 KW. A 25.2 V 10 A power supply unit for fast battery charging is included. The readiness time for operation is 30–60 seconds after power-on.
Durability and Performance

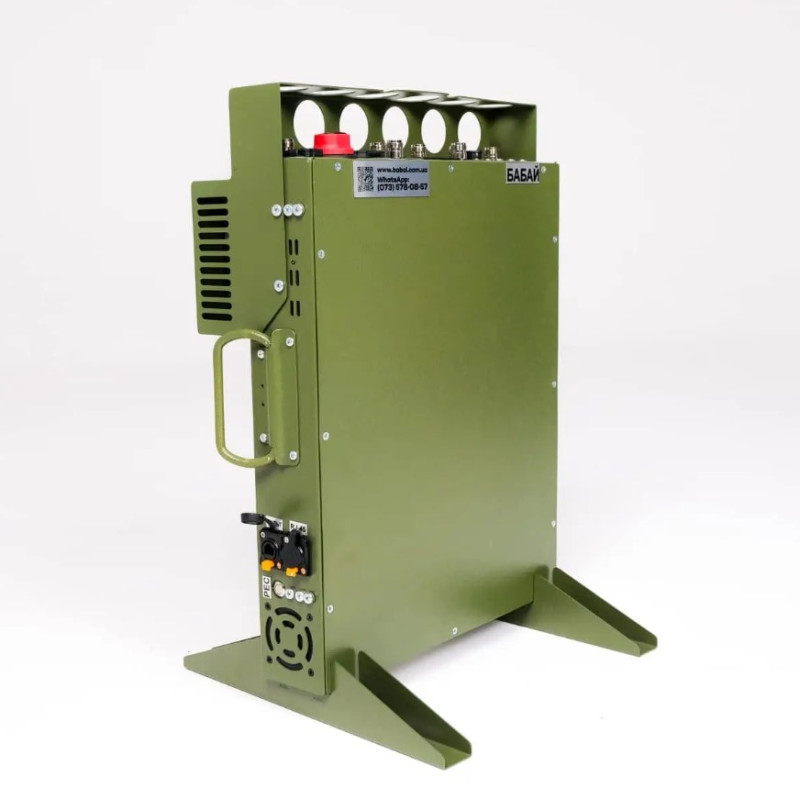

The system's casing has an IP54 protection rating, making it resistant to water splashes, dust, and vibrations. The device can operate in a temperature range from -20°C to +40°C. The EW jammer has feet for vertical placement and optional mounts for installation in trenches or on vehicles. The device weighs 30 kg, and its casing dimensions are 52x38x8 cm.
Control and Interfaces
The system can be controlled via a remote (up to 3 m), twisted pair cable (up to 100 m), or Wi-Fi. Voice prompts are provided for operational status updates, and a digital display indicates battery charge.
System Advantages
- Full Automation: instant detection of FPV signals and automatic activation of corresponding jammers in the 200–1100 MHz range.
- Powerful FPV Band Blocking: six jammers cover frequencies from 200–1100 MHz with a total power of 370+ W.
- 360° Coverage: ensures drone neutralization from any direction.

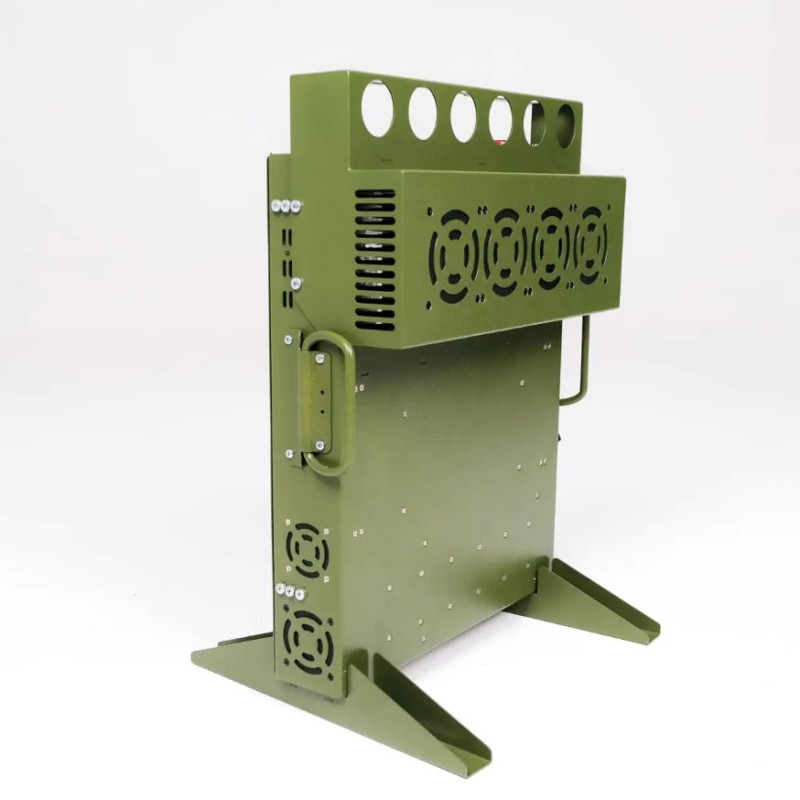

- Overheat Protection: built-in active cooling system prevents overheating during prolonged loads.
- Energy Efficiency: automatic mode optimizes power consumption without loss of effectiveness.
- Adaptive Power: can operate from an internal 40 Ah battery or FPV batteries.
- Smart Control: Wi-Fi, remote control, and twisted pair combined with voice prompts and a digital indicator.
- Instant Readiness: activation time of 30–60 seconds.
- Warranty until the end of the war: free repairs (excluding complete destruction, shrapnel damage, or flooding).
Frequency Ranges, Antenna Types, and Power

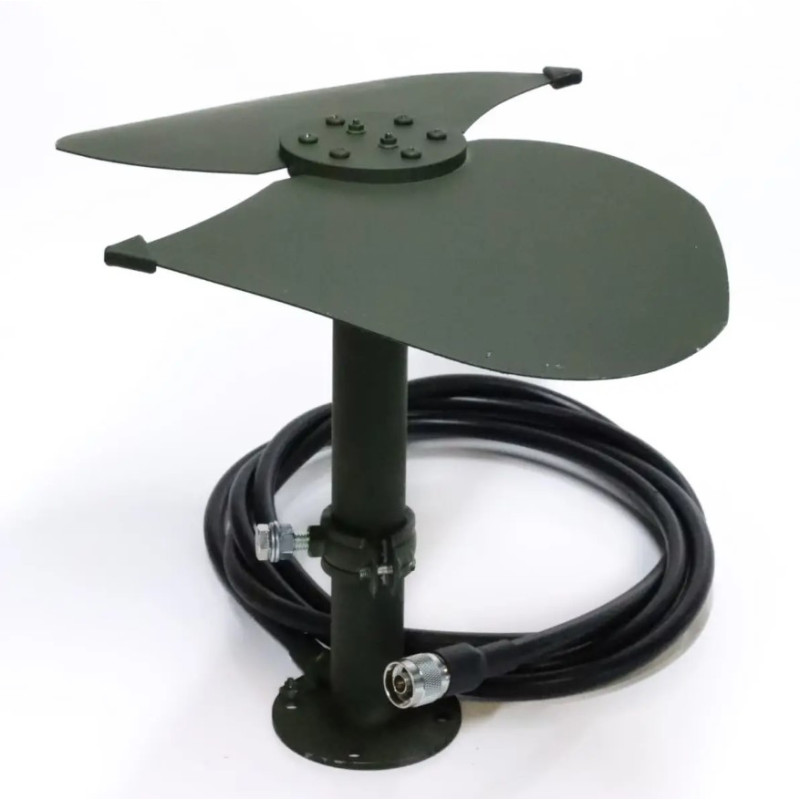

- 1. 200–300 MHz, 50+ W, Helical (Modified Dipole)
- 2. 300–400 MHz, 60+ W, Helical (Modified Dipole)
- 3. 400–500 MHz, 50+ W, Helical (Modified Dipole)
- 4. 500–700 MHz, 50+ W, Helical (Modified Dipole)

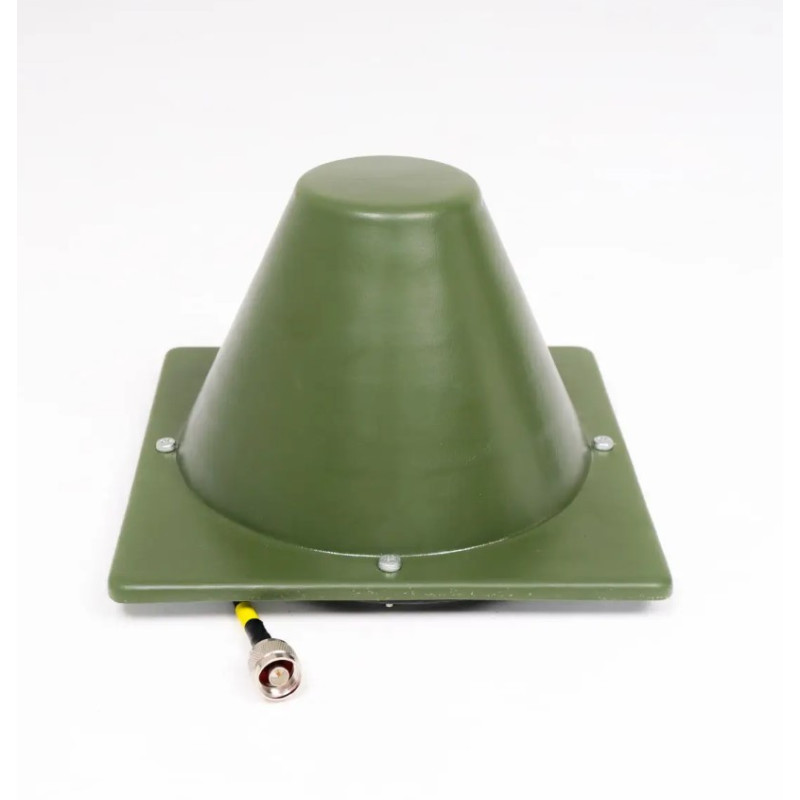

- 5. 700–1000 MHz, 110+ W, Mushroom
- 6. 1000–1100 MHz, 50+ W, Mushroom
Configuration adaptation is possible: you can choose other ranges and antenna types as needed.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Total Radiated Power | 370+ W |
| Power Supply | from battery, from FPV battery (220-24V) |
| Number of Antennas (Channels) | 6 |
| Casing Size (Dimensions) | 52x38x8cm |
| Weight | 30 kg |
| Suppression Range | 50-200m |
| System Coverage Radius | 360 degrees |
| Autonomy | 40 to 60 min (depending on operating mode and number of active jammers) |
| Built-in Battery Capacity | 40 Ah |
| Operational Readiness Time | 30-60 seconds after power-on |
| EW System Control | via Wi-Fi, via remote (up to 3 meters), twisted pair (up to 100 m) |
| Operating Temperature Range | -20C – +40C |
| Power Consumption | 1 KW |
| Protection Rating | IP54 |
| Charger Power | 10 A |
| Voice Operation Alert | yes |
| Digital Battery Charge Indicator Display | yes |
Package Contents
- EW device and antennas — 1 pc.
- Antenna mounting brackets — 6 pcs.
- Device corner mounts — 4 pcs.
- Remote control — 1 pc.
- Remote control connection cable — 1 pc.
- Ethernet RJ-45 cable — 1 pc.
- XT90 3m power cable and clamps — 1 pc.
- N-type antenna connection cable (optional)
- Power supply for battery charging 25.2 V 10 A — 1 pc.
- Feet for vertical placement — 2 pcs.
- Manual — 1 pc.
The EW Jammer «Babai 6M» (FPV version) is a reliable system for protecting military positions, combining automatic threat detection, rapid response, high power, and deployment mobility. The warranty until the end of the war confirms the manufacturer's attention to quality and operational reliability in extreme conditions.
