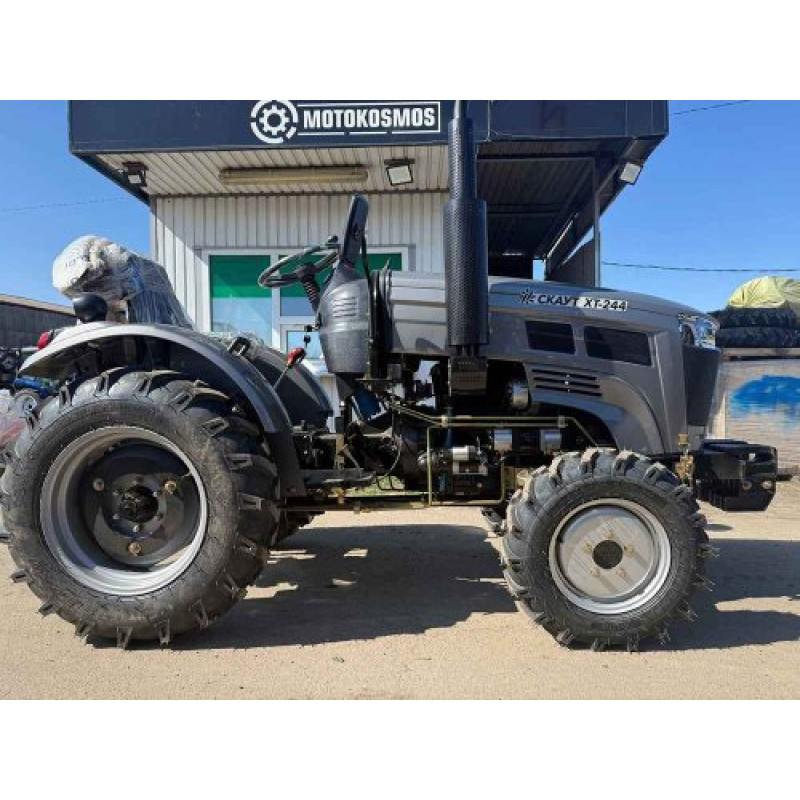

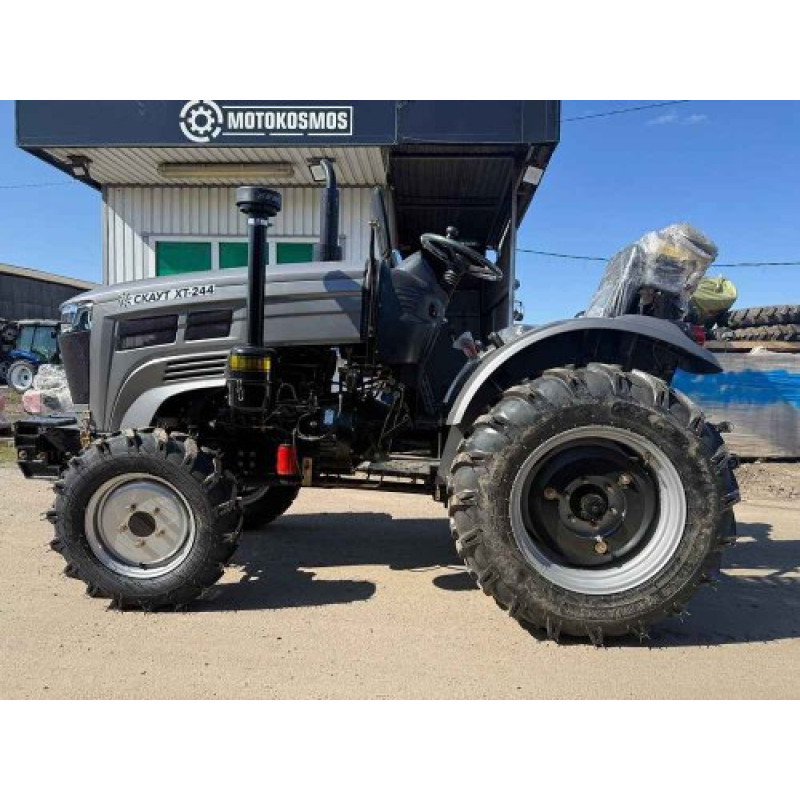

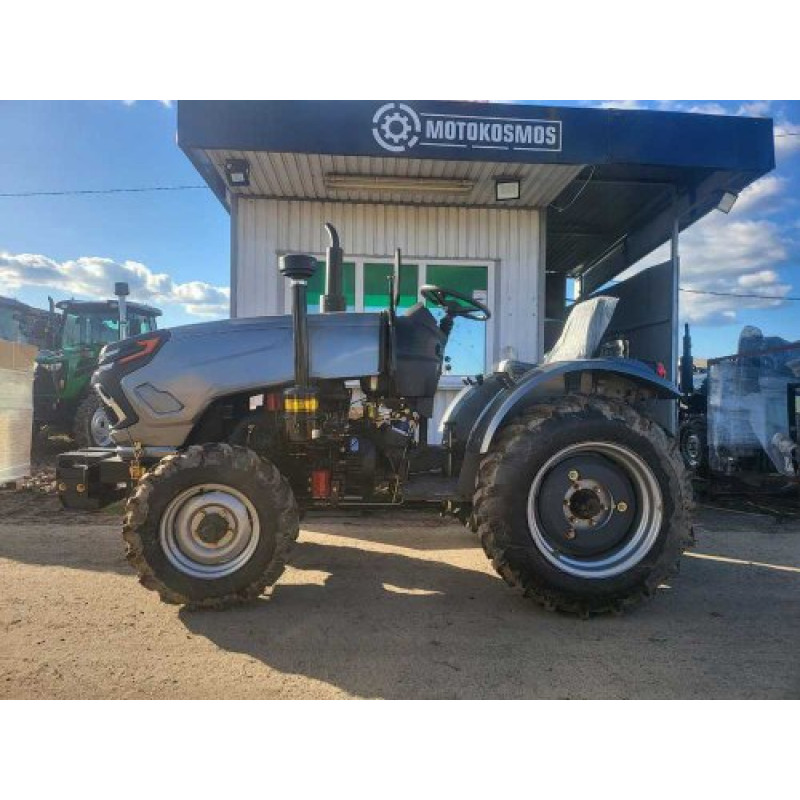

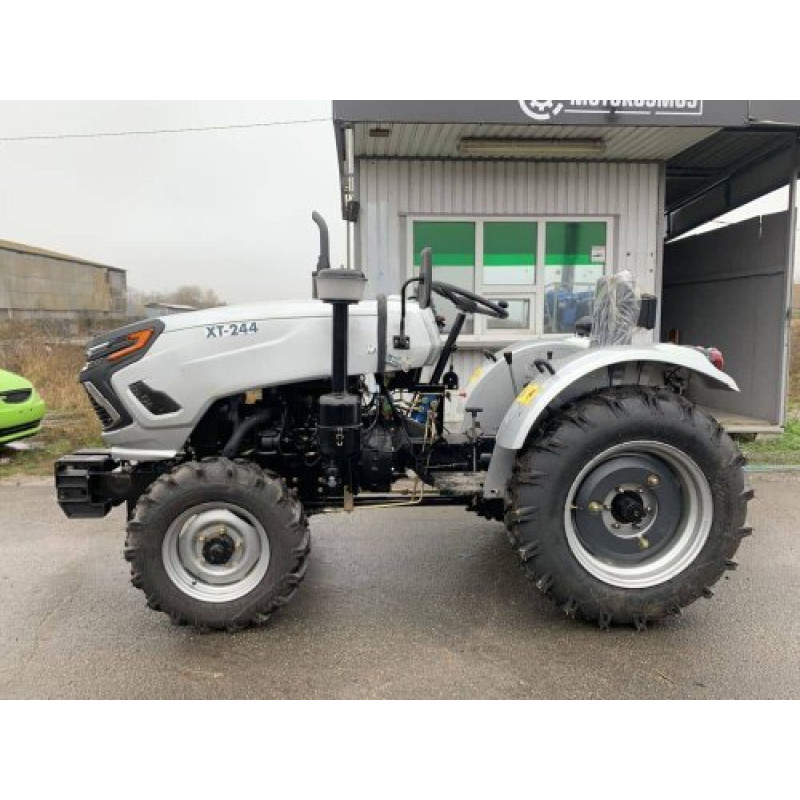

Mini Tractor Scout XT-244 — A Reliable Compact Assistant for Farm and Utility Operations
The mini tractor from the Scout brand is designed for intensive work in private households, utility facilities, construction, and fodder harvesting. The XT-244 model combines compact dimensions with high cross-country capability, maneuverability, and broad functionality, making it an optimal solution for daily agricultural and transport tasks.
Engine and Fuel System
The mini tractor is equipped with a three-cylinder KM385BT diesel engine with a power of 24 hp (17.6 kW) and a displacement of 1532 cm3. The cooling system is liquid-based with forced circulation. For easier starting in cold weather, an electric flame glow plug is provided for air heating in the intake manifold. The electrical system is powered by a battery and a 350 W generator. Nominal fuel consumption is 275 g/kWh, and nominal crankshaft speed is 2200 rpm.
Air Filtration and Preparation
The engine features a three-stage filtration system: a high air intake, an oil bath, and a metal mesh, which increases the unit's durability and ensures stable operation in dusty conditions.
Chassis and Transmission

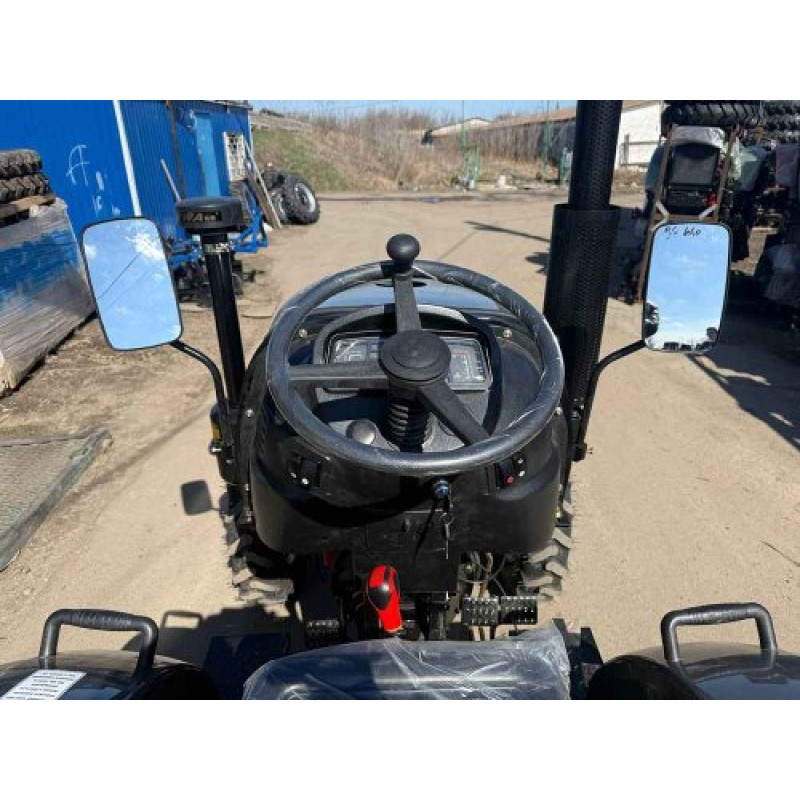

The mini tractor's chassis is reinforced: an improved gearbox, strengthened half-axles, and a differential with a locking mechanism. The clutch is dry, single-disc. The mechanical gearbox is implemented as 3 forward gears and 1 reverse, multiplied by 2. Wider wheels and a ground clearance of 300 mm provide better stability and cross-country capability on various terrains. The instrument panel displays coolant temperature, oil pressure, fuel level, battery voltage, and engine hours. Steering is made easier by power steering, for which a separate pump is provided, and there is also a separate pump for the hydraulic system.
Hydraulics and Attachments

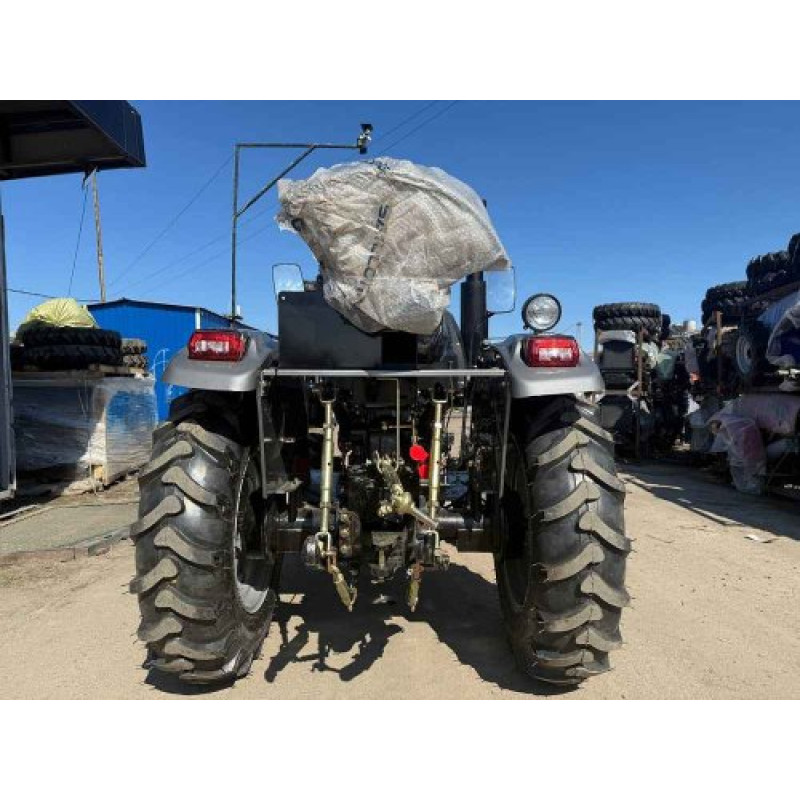

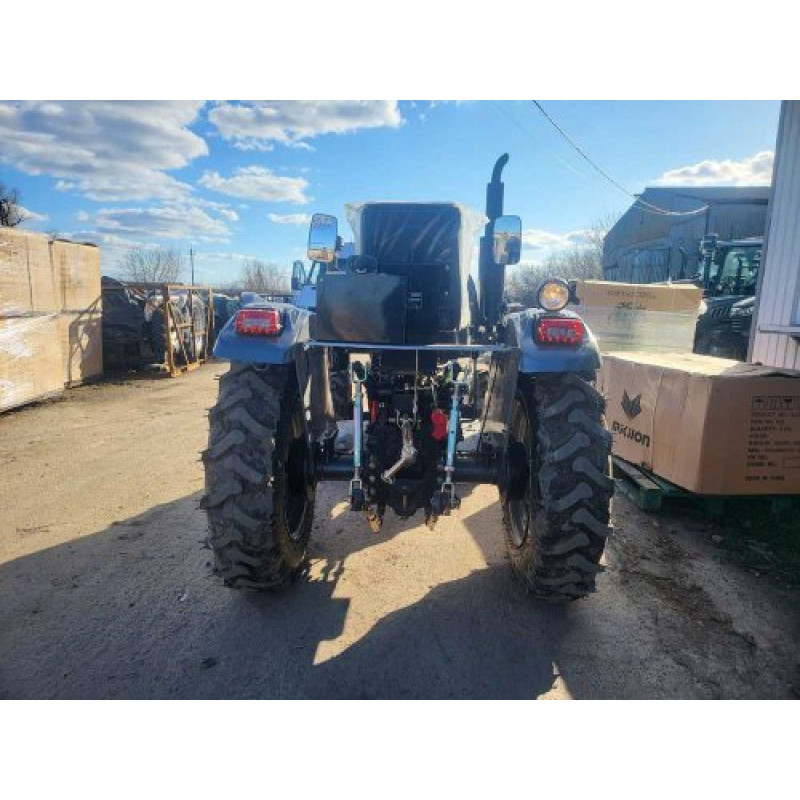

The hydraulic system has a separate gear pump, a pair of hydraulic outlets with quick couplers, and a reinforced three-point hitch system. The description states a maximum three-point load of 480 kg, while the technical table indicates 420 kg (possible differences due to measurement methods or configuration). The power take-off (PTO) shaft is single-speed — 540 rpm.
Configuration and Equipment

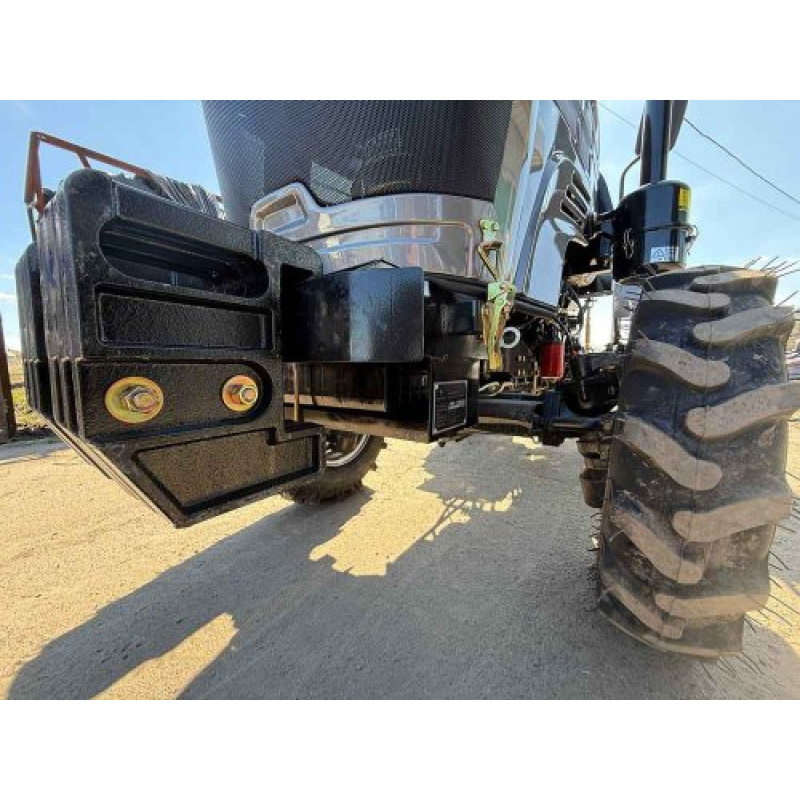

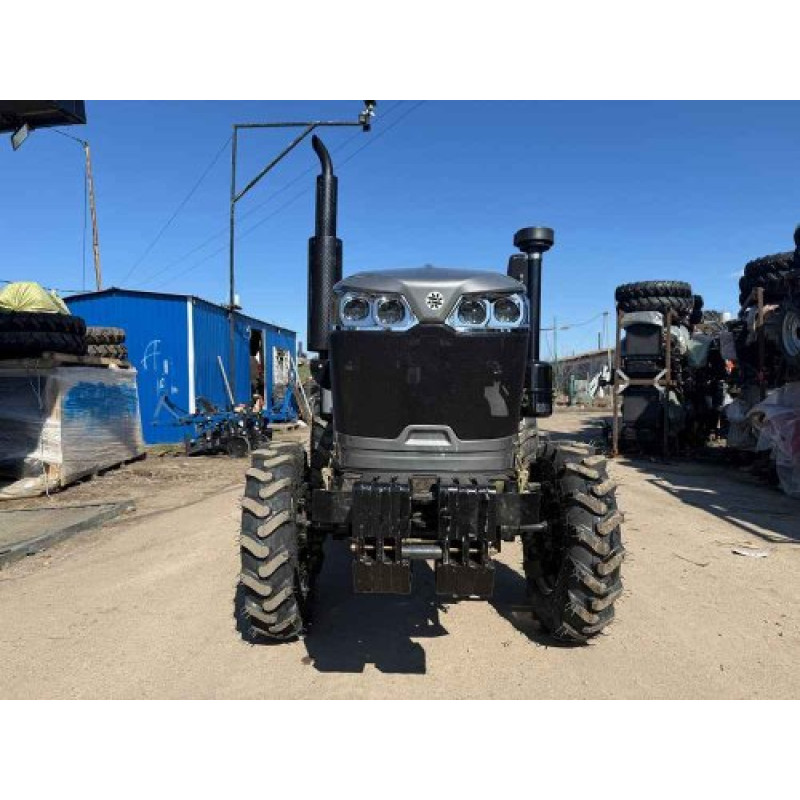

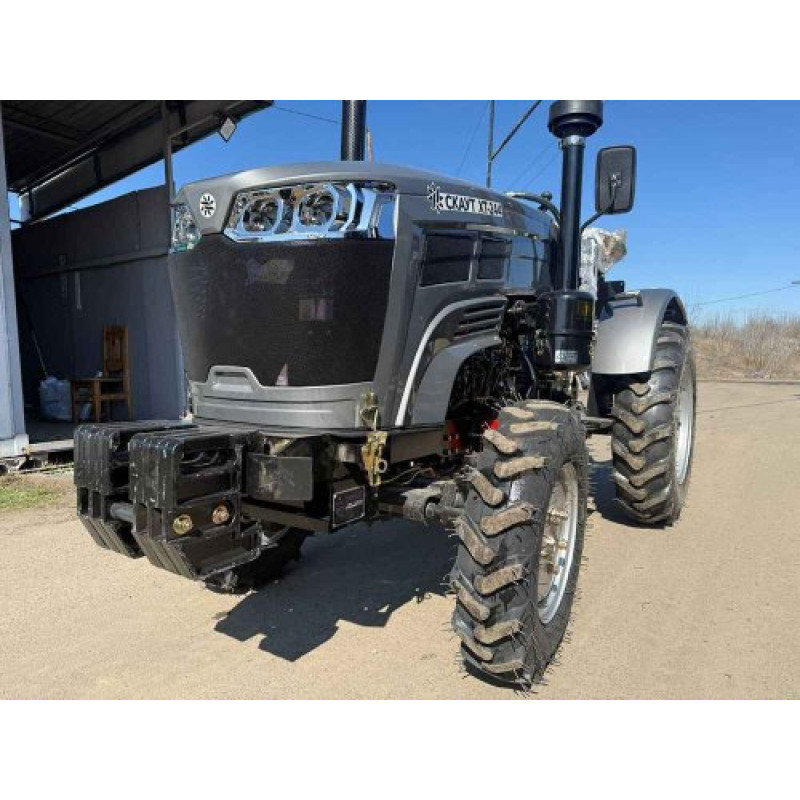

The basic configuration includes front and rear optics, turn signals, a horn, front and rear counterweights, wheel fenders, and a spare parts kit (ZIP) with consumables for initial use. The cabin and workplace ergonomics provide a spacious operator area, a shock-absorbing seat, and convenient placement of control levers.
Scope of Application
The SCOUT XT-244 is designed for a wide range of tasks: sowing operations, inter-row weeding, hilling, irrigation, mineral fertilizer application, harvesting, grass mowing, fodder harvesting, trailer work, site development, and utility tasks.
Parameters and Technical Specifications
Below are all technical parameters specified by the manufacturer and in the original specification:
| Engine power, hp (kW) | 24 (17.6) |
| Wheel formula | 4x4 |
| Engine type | 3 cylinders, KM385BT diesel engine |
| Engine displacement, cm3 | 1532 |
| Nominal fuel consumption g / kWh | 275 |
| Nominal crankshaft speed rpm | 2200 |
| Nominal traction force kN | 4.7 |
| Gearbox (transmission) | mechanical (3 forward + 1 reverse)x2 |
| Rear differential lock | Yes |
| Clutch | Dry, single-disc |
| Power steering | Yes |
| Braking mechanism | drum type |
| Power take-off (PTO) shaft speed rpm | 540 |
| Maximum lifting capacity of hitch mechanism, kg | 420 |
| Wheelbase, mm | 1600 |
| Front wheel track, mm | 1010-1210 |
| Rear wheel track, mm | 1000-1240 |
| Front tire size | 6.0-14 |
| Rear tire size | 9.5-20 |
| Theoretical forward speed, km / h | 2.6-27.0 |
| Theoretical reverse speed, km / h | 2.5-9.4 |
| Fuel tank volume L | 17 |
| Engine crankcase volume, L | 6.5 |
| Gearbox and rear axle crankcase volume, L | 12.0 |
| Lift housing volume, L | 5.0 |
| Engine cooling system volume, L | 20 |
| Overall dimensions (LxWxH), mm | 3000x1340x1950 |
| Structural weight, kg | 1050 |
You can buy the SCOUT XT-244 mini tractor in the Flash Army online store: the equipment comes with full configuration, technical documentation, and an official warranty. Free delivery throughout Ukraine; cash on delivery, cashless payments, credit, or installment options are available. Order placement or additional questions regarding configuration and service can be clarified by phone or on the website.
Additional technical features: 350 W generator, electric flame glow plug for air heating, three-stage air filtration, two separate pumps (for steering and hydraulics), single-speed PTO 540 rpm, front and rear counterweights, wheel fenders, and a ZIP kit for initial use.
