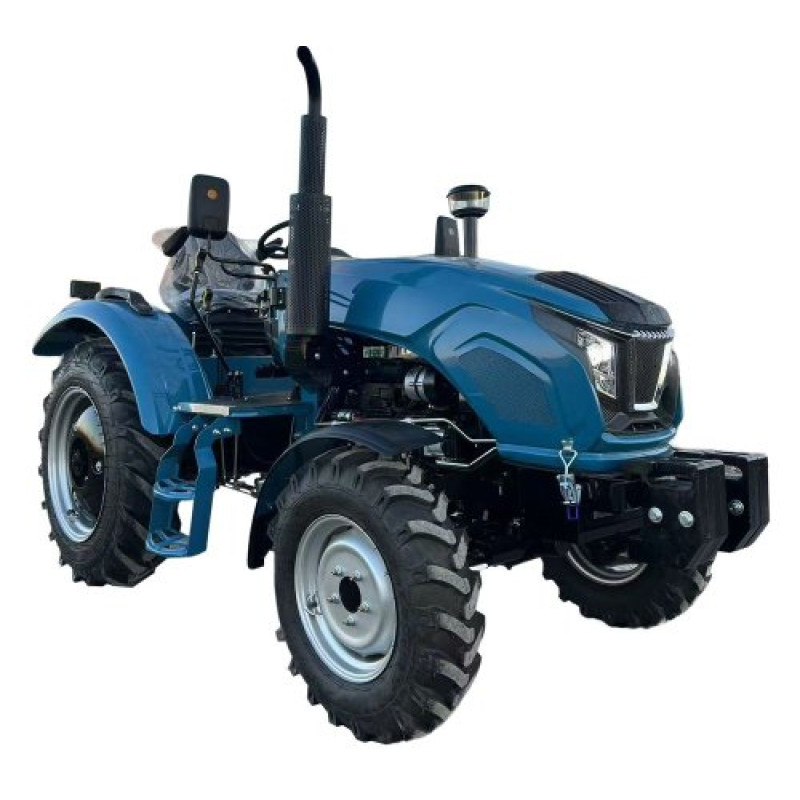

HORST G404 Mini Tractor — A Reliable 4x4 Assistant for Your Farm
The HORST G404 mini tractor from the HORST brand is a modern, compact mini-class tractor designed for work in fields, gardens, livestock farming, and municipal services. The model is equipped with a powerful JDM490T3 diesel engine with a displacement of 2543 cm3 and a nominal power of 40 hp (29.3 kW), ensuring an optimal combination of traction and fuel economy. The vertical 4-cylinder, 4-stroke engine with forced liquid cooling and direct injection, as well as a plunger-type in-line fuel pump, guarantee long and reliable operation under intensive use.
The HORST G404 features 4x4 all-wheel drive, a (4+1)x2 gearbox, and a dry single-disc clutch. The nominal engine speed is 2350 rpm. The cooling system is driven by a V-belt fan transmission, and the power steering is equipped with a separate pump and oil reservoir for comfortable and precise control. The braking mechanism is drum-type. The power take-off (PTO) shaft speed is 540/1000 rpm.
The hydraulic system is based on a gear pump; the maximum permissible lifting capacity of the three-point hitch is 550 kg. The tractor's minimum ground clearance of 350 mm allows it to work on uneven terrain. The minimum turning radius is 4.15 m with a one-sided brake and 4.45 m without a brake, ensuring good maneuverability in row crops and confined areas.
Practical capacities and technical volumes: fuel tank capacity — 48 L; engine crankcase volume — 6.0 L; gearbox, rear axle, and lift crankcase volume — 12.5 L; front axle crankcase volume — 8.0 L; engine cooling system volume — 5.0 L. The tractor's curb weight is 1450 kg. Overall dimensions (LxWxH) — 3540x1570x2050 mm, wheelbase — 1820 mm. Front and rear wheel track — 1200 mm each. Tire sizes: front 7.50-16.0; rear 11.2-24.0.
The HORST G404 combines a robust design, thoughtful ergonomics, and technical solutions that allow it to be effectively used with a wide range of mounted and trailed equipment. Thanks to power steering and a reliable transmission, the operator benefits from ease of control and a high service life of components. This model is suitable for private farms, municipal services, and small to medium-sized farms looking for an economical, durable, and versatile mini tractor.
Specifications:
| Tractor power, hp (kW) | 40 (29.3) |
| Wheel formula | 4x4 |
| Engine brand | JDM490T3 |
| Engine type | vertical, 4-cylinder, 4-stroke diesel with forced liquid cooling and direct injection |
| Engine displacement, cm3 | 2543 |
| Cylinder bore / piston stroke | 90 x 1000 |
| Nominal engine fuel consumption, g/kW*h | ≤238 |
| Fuel pump type | plunger, in-line |
| Nominal engine crankshaft speed, rpm | 2350 |
| Engine oil type | mineral or semi-synthetic for diesel engines |
| Gearbox (transmission) | (4+1)x2 |
| Front axle oil type | transmission oil |
| Clutch | dry, single-disc |
| Power steering | with separate pump and oil reservoir |
| Cooling system fan drive | V-belt transmission |
| Braking mechanism | drum-type |
| Power take-off (PTO) shaft speed, rpm | 540/1000 |
| Hydraulic system pump type | gear pump |
| Maximum lifting capacity of three-point hitch, kg | 550 |
| Minimum ground clearance, mm | 350 |
| Wheelbase, mm | 1820 |
| Wheel track, mm | front 1200; rear 1200 |
| Tire size | front 7.50-16.0; rear 11.2-24.0 |
| Minimum turning radius, m | with one-sided brake 4.15, without brake 4.45 |
| Fuel tank capacity, L | 48 |
| Engine crankcase volume, L | 6.0 |
| Gearbox, rear axle, and lift crankcase volume, L | 12.5 |
| Front axle crankcase volume, L | 8.0 |
| Engine cooling system volume, L | 5.0 |
| Overall dimensions (LxWxH), mm | 3540x1570x2050 |
| Curb weight, kg | 1450 |
