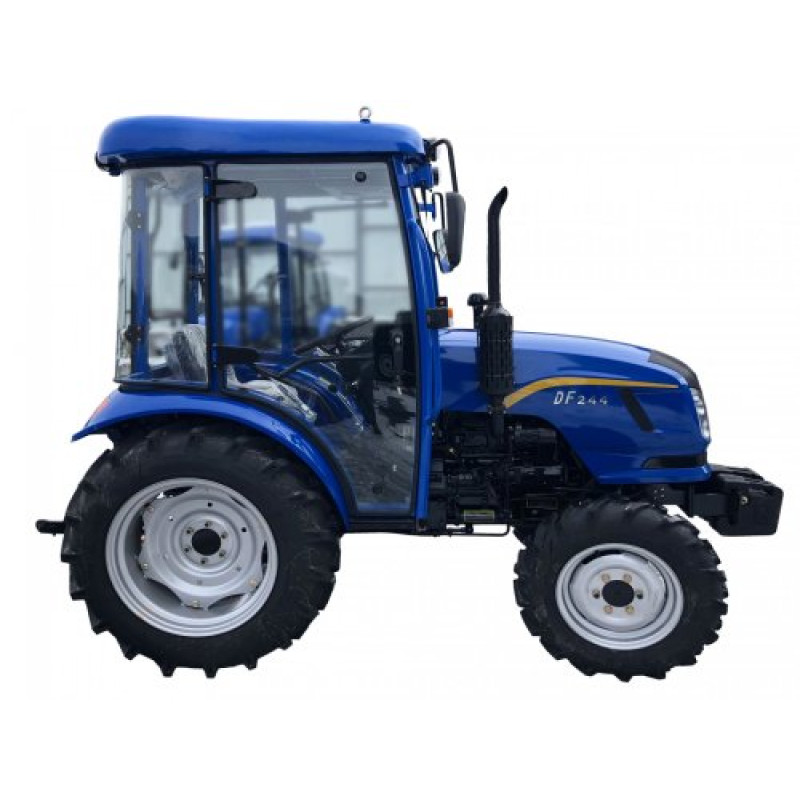

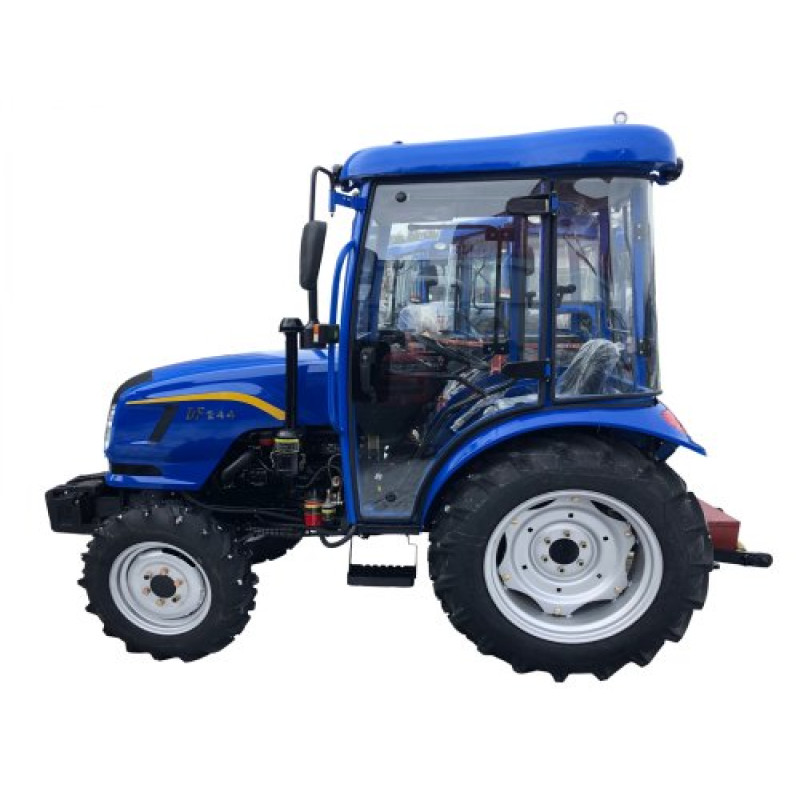

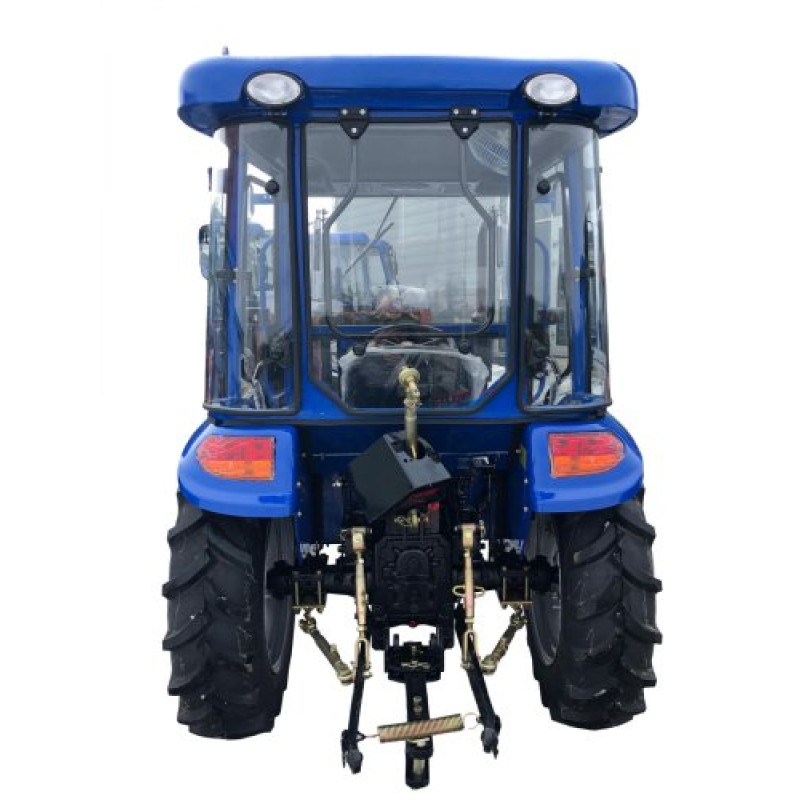

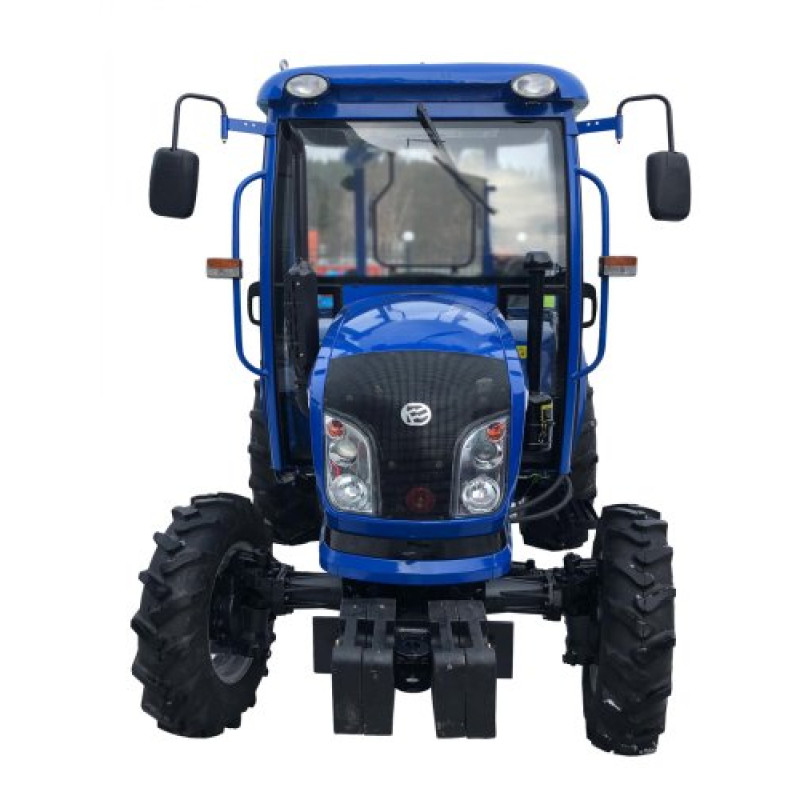

Mini Tractor Dongfeng DF 244 Cab
The Dongfeng DF244 Cab mini tractor from the renowned DongFeng brand is a compact, powerful, and versatile assistant for agriculture, private farms, and farming tasks. This machine combines a balanced power of 24 hp (18.4 kW), a reliable design, and a protected cabin (Cab), ensuring operator comfort during work in any weather. The model belongs to the Tractors > Mini Tractors category and is designed to work with a wide range of mounted and trailed equipment.
Key Features
- Engine: 4-stroke, 3-cylinder; engine model KM385WT (manufacturer — Chinese company DFAM).
- Power: 24 hp (18.4 kW).
- Cooling: Water cooling for stable operation under intense loads.
- Drive: 4WD (all-wheel drive) for enhanced cross-country capability on various soil types.
Dimensions and Transmission
- Dimensions: 2661 x 1158 x 1365 mm — compact dimensions for easy maneuvering in confined areas.
- Track: Front — 952 mm; Rear — 1020, 1120, 1220, 1320 mm (various rear track adjustment options for adapting to field conditions and crops).

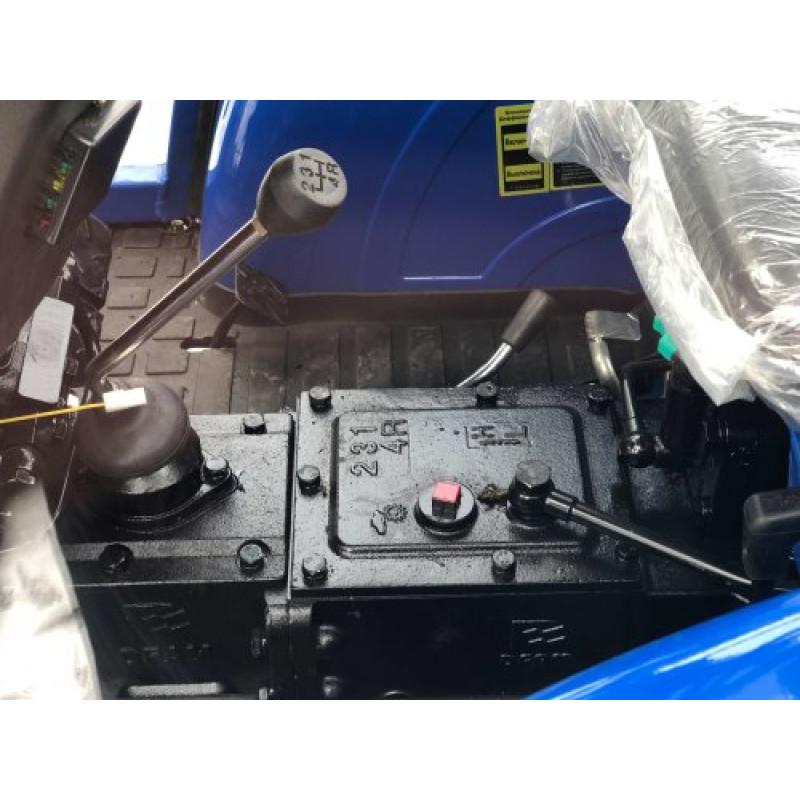

- Gearbox: 4+1 x 2 (8 forward and 2 reverse gears) provides a wide range of speeds for different types of work.
- Clutch: Single-disc, simple and reliable design.
Configuration Features
- Equipped with a cabin (Cab) — protects the operator from wind, rain, and dust, increasing comfort during prolonged operation.

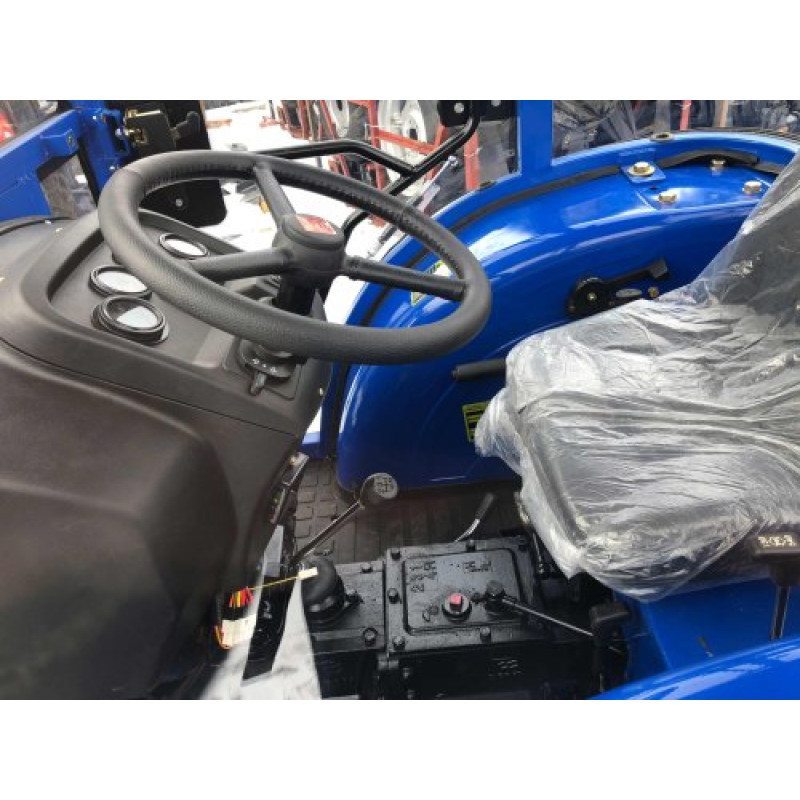

- Mechanical steering is included in the basic configuration; hydraulic steering is available as optional equipment for easier control.
- Differential lock improves cross-country capability and allows working on difficult terrains with uneven relief.
Technical Parameters
- Engine Model: KM385WT (manufacturer — Chinese company DFAM).
- Engine Rotational Speed: 40.00 rpm (specified in source data).
- Tractive Effort: Not specified in the source description.
- PTO Rotational Speed: Not specified in the source description.
The Dongfeng DF 244 Cab mini tractor is suitable for plowing, cultivation, trimming, sowing, and other agricultural tasks, as well as for use with various mounted equipment: plows, cultivators, trailed and mounted units. All-wheel drive and differential lock provide good traction and stability on difficult terrains, while the variable rear track and multi-stage transmission make the machine versatile for various tasks in the field and on the homestead plot.
Brand: DongFeng. Product Type: Tractors > Mini Tractors. All technical parameters and features provided were taken from the original product description. SKU is not included in the description text.
