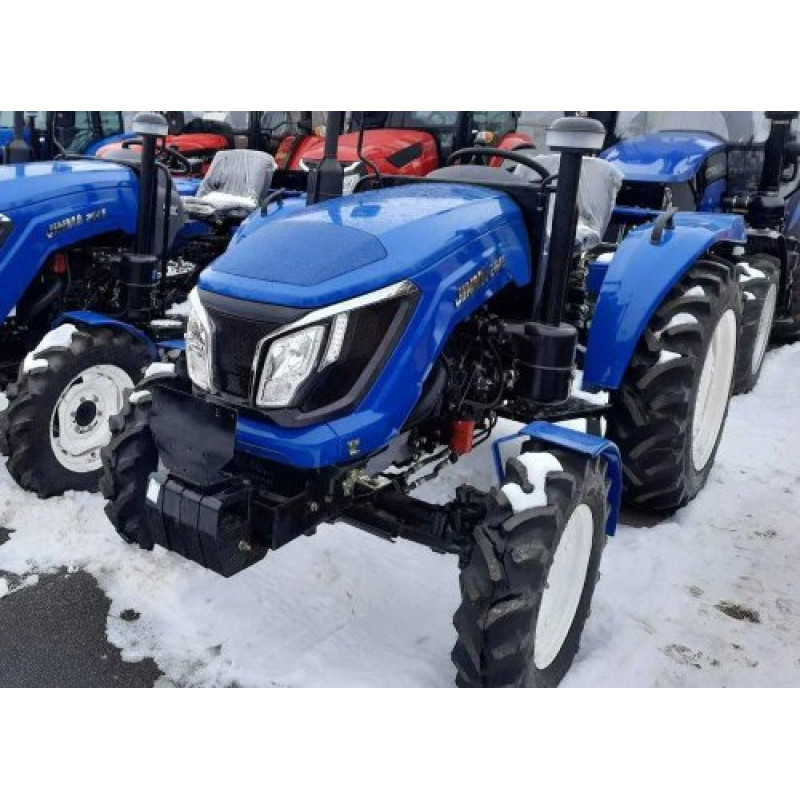

Mini Tractor JINMA 244 E Revers
Brand: Jinma. The JINMA 244 E Revers mini tractor is a reliable and versatile machine designed for agricultural, horticultural, and municipal tasks. The combination of a powerful diesel engine, 4x4 all-wheel drive, and a convenient transmission makes this model efficient on various soil types and in challenging operating conditions.
Key Advantages
- Powerful diesel engine: YD 385 or KM 385 model with a displacement of 1,532 cm3;
- High power: 24 hp (17.6 kW) due to a three-cylinder design for stable and smooth operation;
- Fuel efficiency: fuel consumption up to 275 g/kWh, ensuring lower operating costs;
- Reliable transmission: (4+4)x2 gearbox provides a wide range of speeds and maneuverability for various tasks;
- 4x4 all-wheel drive for improved traction and off-road capability on difficult terrains;
- Universal wheel sizes: front 6.50 - 16, rear 11.20 - 24 — suitable for various attachments;
- Two hydraulic outputs (2 couplings) for convenient connection of attachments;
- Compact dimensions and optimal weight — ideal for small and medium-sized farms.
Technical Specifications
| Engine Model | YD 385 or KM 385 |
| Engine Displacement, cm3 | 1,532 cm3 |
| Engine Power, hp and kW | 24 hp or 17.6 kW |
| Cylinders | 3 |
| Cylinder Diameter | 85 mm. |
| Piston Stroke | 90 mm. |
| Fuel Consumption | up to 275 g/kWh |
| Engine Dimensions, mm | 569 mm x 525 mm x 604 mm |
| Engine Structural Weight, kg | 234 kg. |
| Transmission | (4+4)x2 |
| Wheelbase, mm | 1,700 mm. |
| Overall Dimensions, mm | 3,080 mm. x 1,440 mm. x 1,510 mm. |
| Front Wheel Track, mm | 1,080 / 1,280 mm. |
| Rear Wheel Track, mm | 1,050 mm. - 1,310 mm. |
| Drive Type | 4x4 |
| Maximum Speed, km/h | 26.4 km/h |
| Front Wheel Size | 6.50 - 16 |
| Rear Wheel Size | 11.20 - 24 |
| Number of Hydraulic Outputs | hydraulic output (2 couplings) |
| Engine Oil Volume, L | 6.6 |
| Weight, kg | 1340 |
Engine and Fuel Economy: The YD 385 or KM 385 engine with a displacement of 1,532 cm3 and three cylinders provides stable traction and a long service life. The cylinder diameter is 85 mm with a piston stroke of 90 mm, the engine's structural weight is 234 kg, and its dimensions are 569 x 525 x 604 mm. The engine oil volume is 6.6 L. Fuel consumption of up to 275 g/kWh makes operation economical and beneficial for the farm.
Chassis and Dimensions: A wheelbase of 1,700 mm and overall tractor dimensions of 3,080 x 1,440 x 1,510 mm ensure stability and maneuverability. The adjustable front wheel track of 1,080 / 1,280 mm and rear wheel track of 1,050 - 1,310 mm, along with front tire size 6.50-16 and rear 11.20-24, allow the tractor to adapt to various tasks and attachments. The 4x4 all-wheel drive and a maximum speed of up to 26.4 km/h guarantee efficient operation in the field and on municipal roads.
Transmission and Hydraulics: The (4+4)x2 gearbox offers a wide selection of speeds for field, transport, and auxiliary work. The presence of two hydraulic outputs (2 couplings) facilitates the connection of plows, cultivators, mounted seeders, and other equipment, expanding the machine's functional capabilities.
The total weight of the tractor, 1340 kg, makes the JINMA 244 E Revers maneuverable yet stable under load. This model is ideal for owners of small farms, farmers, and municipal enterprises looking for a reliable, economical, and easy-to-maintain mini tractor.
Model: Mini Tractor JINMA 244 E Revers; Brand: Jinma; Category: Tractors > Mini Tractors.
