Product Code: 57338-999
In Stock
236 340 грн.
Buy this product in 1 click:
Main specifications
Antenna type:
external directional antennas
Connector type:
cable connection to the antenna complex (length up to 100 m)
Device type:
UAV Ground Control Station (Multi-channel GCS with 3 Independent Transmitters and Signal Redundancy)
Maximum range:
up to 50 km
Module type:
integrated system with 3 independent TX modules + VRX + LCD controller with encoder
All specifications
We will deliver this product:
Payment
Description

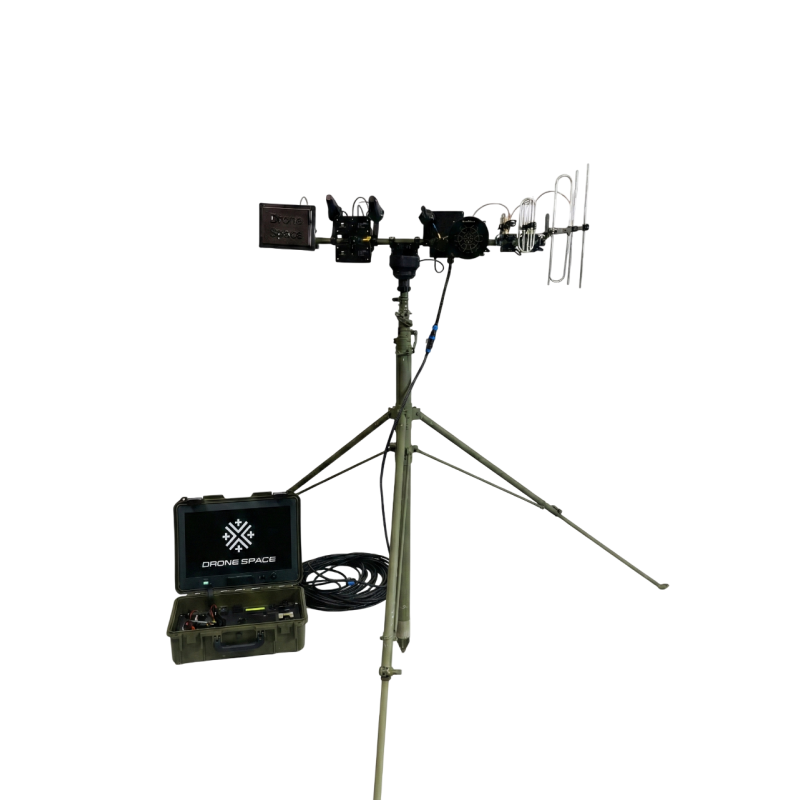

NSU "Dronarnya 5.0" - A solution that replaces an entire fleet of equipment. The system integrates three independent transmitters in one housing, allowing it to cover all drone control needs across various frequency ranges.
In conditions of strong radio interference, the station activates a triple signal redundancy mode. This ensures your drone receives commands even where other systems lose the link. An ideal choice for complex field missions where compactness and stability are crucial.
SPECIFICATIONS
| Battery life | 8 hours |
| 2 or more video receiver systems | 1.2 GHz and 5.8 GHz (3.3 GHz and digital systems) |
| Control systems | 3 systems (ERLS and others) |
| Cable length from control case to antenna complex | Up to 100m |
| Confirmed operating range | 50 km |
| In-flight video channel switching | + |
| Fast search for drone video frequency | + |
| No "blue screen" issue | + |
| Settings control via encoder and LCD info display in control case | + |
| Scrambler installation option | + |
| Mast height | up to 14 meters |
Specifications
Antenna type
external directional antennas
Connector type
cable connection to the antenna complex (length up to 100 m)
Device type
UAV Ground Control Station (Multi-channel GCS with 3 Independent Transmitters and Signal Redundancy)
Maximum range
up to 50 km
Module type
integrated system with 3 independent TX modules + VRX + LCD controller with encoder
Monitor availability
yes, LCD display in the control case
Operating frequency
1.2 GHz / 3.3 GHz / 5.8 GHz + digital systems
Operating time
up to 8 hours
Power source
autonomous
