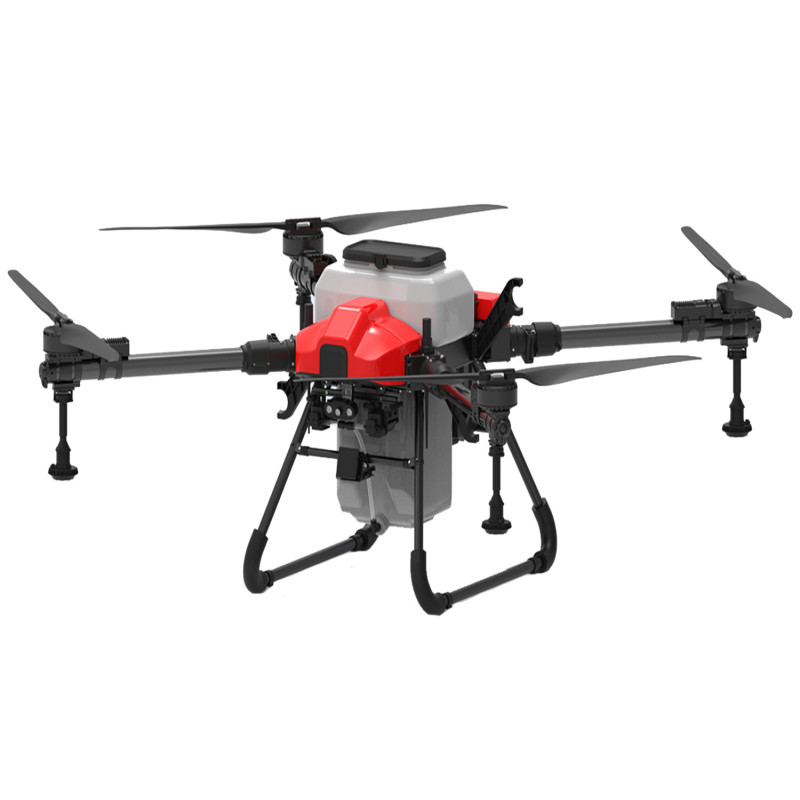

Agrodrone FPVXSF JK4-40 40L Plant Protection UAV from the FPVXSF brand — a professional agrodrone for crop protection and liquid substance application. This model is designed for large-scale field operations, agronomic services, and contracting organizations. Product type: Drones & Quadcopters > Agrodrones. Delivery time from 15 to 30 days.
Key Advantages
The FPVXSF JK4-40 is designed for maximum autonomy, durability, and ease of maintenance. The main advantages of the model include:
- Fully autonomous operation with autonomous route planning and GPS navigation
- Night flight function for flexible treatment schedules
- 50mm thick carbon arm for increased durability in falls
- Payload 18.14 kg, maximum takeoff weight 36.29 kg (specified in the advantages block)
- Tilt folding for convenient transport and minimal dimensions when folded
- Main spray width — 8 m, maximum — 10 m
- Fully waterproof body and waterproof brushless pump and ESC
- Powerful 18S 30000 mAh battery (high-voltage version)
- 4 super atomizing nozzles with 16 l/min flow and high atomization quality
- Remote controller with a bright 5.5-inch screen
- Modular design for quick component replacement
Technical Specifications
- Material: aviation carbon + aluminum
- Chassis span: 2050 mm
- Folded size: 845×860×810 mm
- Maximum takeoff weight: 81.7 kg
- Maximum payload: 40 kg
- Drone weight: 25 kg
- Tank capacity: 40 l
- Flight height: ≤20 m
- Flight radius: ≤5000 m
- Flight duration: 12-25 min
- Flight speed: 1-13 m/s
- Motor lifespan: ≥100,000 hours
- Frame lifespan: ≥10 years
- Spray width: 8-10 m
- Propeller: foldable, 48"
- Operation at full load: 8-12 min
- Hovering: in any position
- Spraying performance: 8-16 l/min
- Spraying system: high-speed atomizing nozzle
- Treatment efficiency: ≤1200 mu/day
- Permissible wind speed: ≤7 Beaufort
- Battery: 18S30000 mAh
- Flight stability: √√√
- Fall protection: √√√
Flight Functions and Safety
The drone is equipped with a full set of intelligent functions to enhance efficiency and safety of field flights:
- Automatic point setting and automatic altitude setting
- Automatic return (including in cases of signal loss or low battery)
- Automatic obstacle avoidance; obstacle avoidance radar — optional
- AB point route memory and breakpoint memory with the ability to resume spraying after a break
- Autonomous route planning, GPS system, and ground station
- Video transmission for process control
- Flight modes: manual, intelligent, automatic; beyond visual line of sight (BVLOS) flights possible
- Wave radar — optional equipment for enhanced safety
Package Contents
Basic kit:
- JK4-40 drone (X13 power unit) — 1 pc
- 18S30000 mAh battery — 1 pc
- Charger — 1 pc
- Spreader — 1 pc (for an additional fee, price to be confirmed with manager)
Additional modules (for an additional fee, price to be confirmed with manager):
- Avoidance radar — 1 pc
- CANHUB — 1 pc
- Ground simulation radar — 1 pc
- Pro atomizing nozzle ×2 — 1 set
Who is this unit suitable for
The FPVXSF JK4-40 agrodrone is ideal for farms, agronomic services, and contracting companies that perform treatments over large areas. The capacious 40L tank, spraying performance up to 16 l/min, high moisture resistance, and durable frame ensure fast, precise, and reliable crop protection even in challenging conditions.
Brand: FPVXSF. Category: Drones & Quadcopters > Agrodrones.
