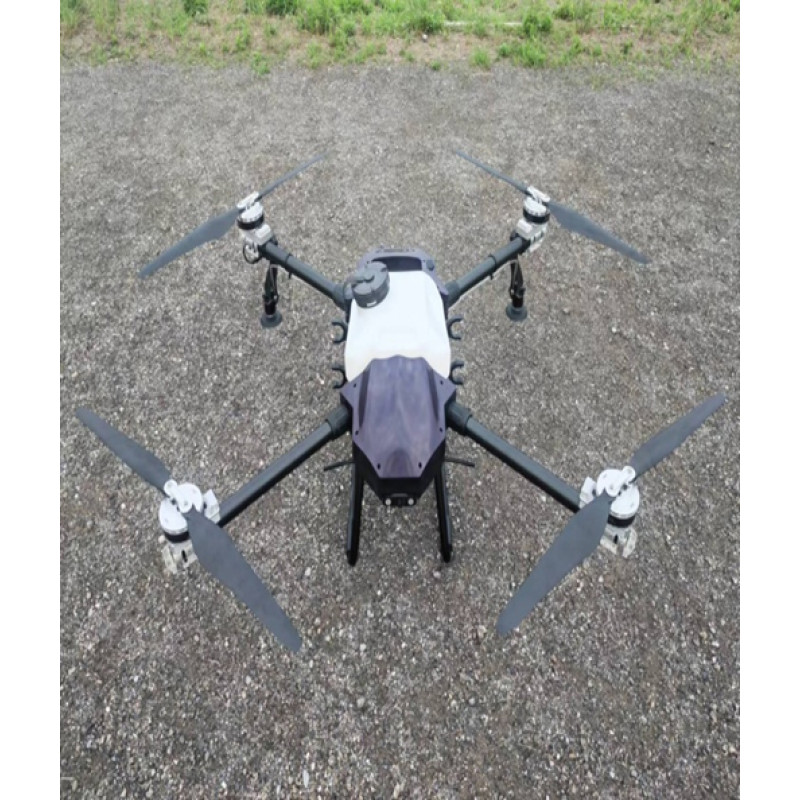

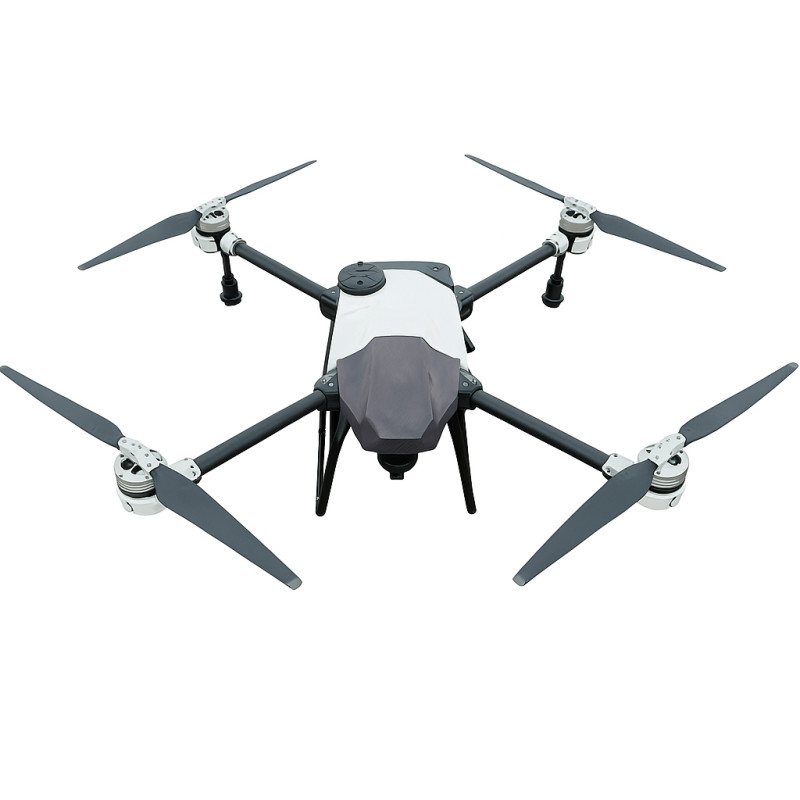

Agro-drone FPVXSF JK4-16 16L Plant Protection UAV — professional agricultural drone from FPVXSF

The FPVXSF JK4-16 agro-drone is a specialized device for precise spraying and application of plant protection products with a 16 L tank. Manufacturer: FPVXSF. Delivery time: 15 to 30 days. The model combines a modular waterproof design, high payload capacity, and fully autonomous operation. This device is suitable for farmers who need a reliable, durable, and productive solution for field treatment.

Key advantages

• Fully autonomous operation with autonomous route planning.
• Night flight support.
• Reinforced construction: 40 mm thick carbon arm provides increased drop resistance.
• High payload — 14 kg, maximum takeoff weight up to 36.3 kg; specifications also indicate a maximum takeoff weight of 40 kg and a maximum payload of 16 kg — please note the configuration.
• Horizontal folding design for convenient transport and compact folded dimensions.
• Working spray width from 4 to 6 m.
• Fully waterproof modular design, waterproof brushless pump, and waterproof ESCs.
• Powerful high-voltage 12S16000 mAh battery (high-voltage version) for short, intensive work cycles.
• Optional super-aerosol nozzle: 5 L/min with excellent atomization.
• Standard remote control with a bright 5.5-inch screen.

Technical specifications

• Material: aviation carbon + aluminum.
• Chassis span: 1580 mm.
• Folded dimensions: 101×610×575 mm.
• Maximum takeoff weight: 40 kg.
• Maximum payload: 16 kg.
• Drone weight: 18 kg.
• Tank capacity: 16 L.
• Flight height: ≤ 20 m.
• Flight radius: ≤ 5000 m.
• Flight time: 7–20 min.
• Flight speed: 1–12 m/s.
• Engine lifespan: ≥ 100,000 hours.
• Frame lifespan: ≥ 10 years.
• Spraying width: 4–6 m.
• Propellers: foldable, 34 inches.
• Spraying duration at full load: 7–9 min.
• Hovering capability: in any position.
• Spraying performance: 5 L/min.
• Spraying system: aerosol high-speed / pressure nozzle.
• Treatment efficiency: ≤ 500 mu/day.
• Allowed wind speed for takeoff/landing: ≤ 7 levels.
• Battery: 12S16000 mAh.
• Flight stability: √√√.
• Fall protection: √√√.

Flight functions

• Automatic point fixation.
• Automatic return.
• Automatic obstacle avoidance.
• Return upon signal loss.
• Return upon low battery.
• AB-point memory.
• Autonomous route planning.
• Memory of spray interruption point and resumption of spraying after stop.
• GPS system and ground station.
• Real-time video transmission.
• Obstacle avoidance radar (optional), wave radar (optional).
• Beyond Visual Line of Sight (BVLOS) flights.
• Modes: manual, intelligent, fully automatic.
• Automatic altitude setting.

Package contents

• Basic kit:
  • JK4-16 drone — 1 pc.
  • 12S16000 mAh battery — 1 pc.
  • Charger (dual) — 1 pc.
• Optional modules (for an additional fee, check with the manager):
  • Obstacle avoidance radar — 1 pc.
  • CANHUB — 1 pc.
  • Terrain following radar — 1 pc.
  • Pro aerosol nozzles ×2 — 1 set.

The FPVXSF JK4-16 model is ideal for those who need high performance and durability: its robust carbon-aluminum construction, waterproof components, and quick module replacement capability simplify operation and maintenance. Configuration options affect maximum takeoff weight and payload — please clarify the configuration with the manager before ordering.

If you need advice on selecting a configuration or additional modules (radar, Pro nozzles, etc.), please contact the manager to clarify delivery details and option compatibility. The delivery time is 15 to 30 days, so plan your order in advance.
