EW System Kulbaba AB 300-410 MHz (Kulbaba) — AWEDYNE

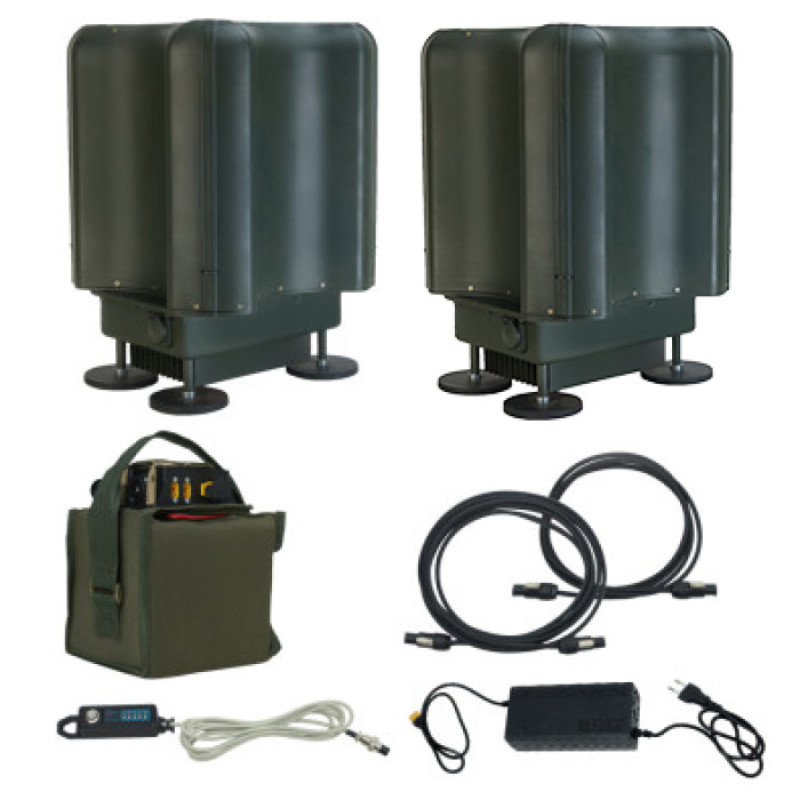

The FPV control suppression system Kulbaba AB from AWEDYNE is designed for effective protection of rolling stock, trenches, and stationary objects from kamikaze drone attacks. The system consists of autonomous, independent blocks: each block has its own casing, a built-in non-removable antenna, and a connector for power supply from a portable 24 V LiFePo4 battery, and is designed to operate without connection to the vehicle's onboard network.
The antennas of each block are designed for a specific frequency and are non-removable, which prevents the module from operating without an antenna and protects the amplifying elements from burnout. The antenna design is reinforced to maintain geometry under the influence of weather conditions and vibrations. Neodymium magnets impregnated with rubber are provided in the block for quick and reliable attachment to the vehicle body.
Parameters and Technical Specifications
| Parameter | Value |
|---|---|
| Frequency Range, MHz | 300-410 |
| Codification | Yes |
| Module Power, W | 50 |
| Supply Voltage, V | 24 |
| Battery Capacity, A·h | Each 24 V LiFePo4 battery — 12 A·h; total capacity of two batteries — 24 A·h |
| Number of Modules, pcs. | 2 |
The system is powered exclusively by the portable battery included in the kit. The operating time from one battery when using two blocks is approximately 2.5 hours. It is not recommended to modify the system for the vehicle's network; if a longer operating time is needed, it is advisable to purchase an additional battery and block kit.
Important Recommendations and Warnings
- 1. Many devices outwardly resemble "Kulbaba", but the original manufacturer is AWEDYNE. Other products may not meet the quality and characteristics of the original.
- 2. Devices with multiple bands in one casing and multiple antennas may not work correctly — antennas must be spaced apart for proper operation. Do not choose "universal" solutions that reduce protection effectiveness.
- 3. Collinear dipole antennas form a "doughnut-shaped" field with a vulnerable zone above the device; for dome protection, use proper antennas, not collinear rods.
- 4. Power — only from the included battery. Do not modify for the vehicle's network. If operating time is insufficient, purchase an additional block and battery kit.
- 5. Avoid solutions with active cooling: fans and active coolers can fail due to rain, snow, dirt, or jamming; in case of cooling failure, the device quickly overheats. Choose only passive cooling.
The Kulbaba AB 300-410 MHz EW system combines ease of installation, autonomy, and reliable antenna and mounting design, making it an effective solution for protection against FPV-controlled threats during movement or on the battlefield. Manufacturer: AWEDYNE. Product type: EW systems.
