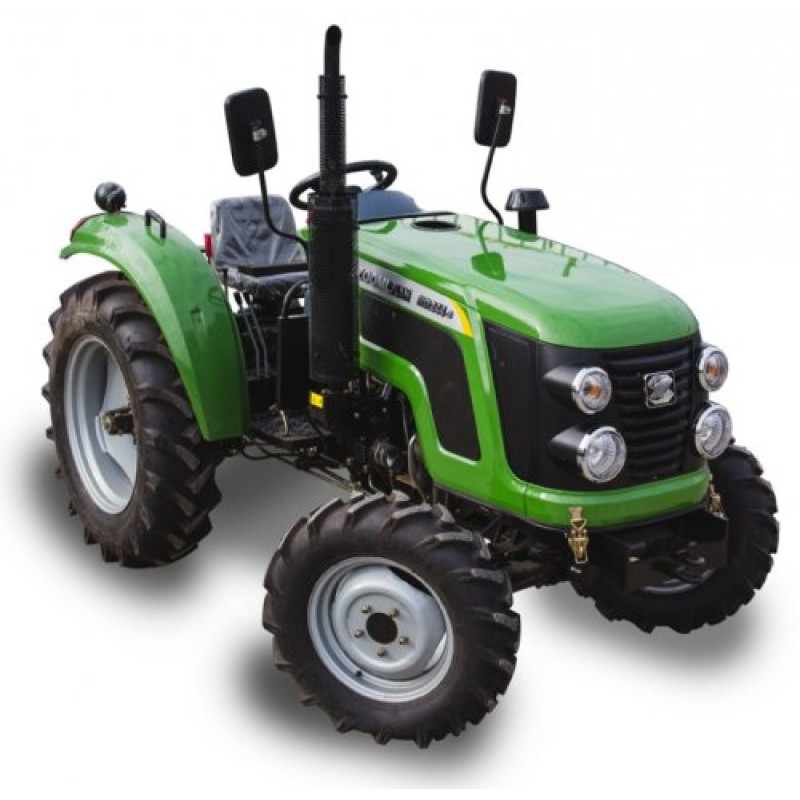

Mini Tractor Zoomlion RD 244 R
Introducing the all-wheel-drive mini tractor Zoomlion RD 244 R from the brand Zoomlion — a versatile and reliable machine for household and agricultural work. This model combines compact dimensions with a power of 24 hp (17.6 kW) and a 4x4 wheel formula, ensuring excellent cross-country capability on various soil types and stability under load. The engine is a 4-stroke, three-cylinder diesel with liquid cooling and a volume of 1532 cm3, nominal crankshaft speed is 2350 rpm, and starting is performed by an electric starter with safe start.
Configuration and Transmission
The gearbox is mechanical, non-synchronized, configured as (4 forward + 4 reverse) x 2, which effectively provides 8 forward and 8 reverse speeds thanks to the reverser. The reverse lever is located under the steering wheel for convenient and quick change of direction. The clutch is dry, twin-disc; a rear differential lock is present for improved traction on difficult terrain. The steering is equipped with power steering, making maneuvering easy even when working with attachments.
Purpose and Ergonomics
The Zoomlion RD 244 R mini tractor is ideal for plowing, soil preparation for sowing, trenching, sowing and harvesting, as well as for transporting goods on the site. The tractor is compatible with a wide range of mounted and trailed equipment. The driver's cabin is equipped with an adjustable seat, an hour meter, a voltage plug, and a socket for connecting a trailer. An opening is provided on the hood for access to the fuel tank filler neck.
Model Advantages
- Power steering for comfortable control.
- Electric starter for quick and reliable engine start.
- Economical fuel consumption: ≤278 g/kWh.
- Rearview mirrors for better visibility around the machine.
- Optimal price-quality ratio in the Ukrainian market.
The braking mechanism is dry, shoe-type; there is a parking brake. The power take-off (PTO) shaft operates at 540/1000 rpm, allowing various agricultural implements to be connected. The theoretical forward speed ranges from 1.4 to 32.00 km/h, and reverse from 1.78 to 9.40 km/h. The structural weight is 1220 kg, which, combined with compact dimensions, makes the tractor maneuverable in confined areas.
Additional Purchase Information
Payment options available: cash to the courier upon receipt or transfer to the company's account. Delivery is carried out to Kyiv, Kharkiv, Vinnytsia, Poltava, Chernihiv, and other cities. To place an order, leave a request on the website or contact the sales department.
Technical Specifications
| Engine power, hp (kW) | 24 hp (17.6) |
| Wheel formula | 4x4 |
| Engine type | 4-stroke water-cooled diesel engine, three-cylinder |
| Engine start | electric starter with safe start |
| Engine displacement, cm3 | 1 532 |
| Nominal fuel consumption g / kW * h | ≤278 |
| Nominal engine crankshaft speed rpm | 2 350 |
| Nominal traction force kN | 6.3 |
| Gearbox (transmission) | non-synchronized, mechanical (4 forward + 4 reverse) x 2 |
| Rear differential lock | Yes |
| Clutch | Dry, twin-disc |
| Power steering | Yes |
| Braking mechanism | dry type, shoe |
| Power take-off (PTO) shaft speed rpm | 540/1000 |
| Wheelbase, mm | 1706 |
| Front wheel track, mm | 1 215~1 050 |
| Rear wheel track, mm | 960~1 460 |
| Front tire size | 6.5-16 |
| Rear tire size | 11.2-24 |
| Theoretical forward speed, km / h | 1.4-32.00 |
| Theoretical reverse speed, km / h | 1.78-9.40 |
| Fuel tank volume L | 34 |
| Engine crankcase volume, L | 4.5 |
| Gearbox and rear axle crankcase volume, L | 20.2 |
| Lift housing volume, L | 10 |
| Front axle crankcase volume, L | 5.5 |
| Engine cooling system volume, L | 10 |
| Overall dimensions (LxWxH), mm | 3225/ 1440/ 2781 (description also states 3225x1440x1980 mm) |
| Structural weight, kg | 1220 |
