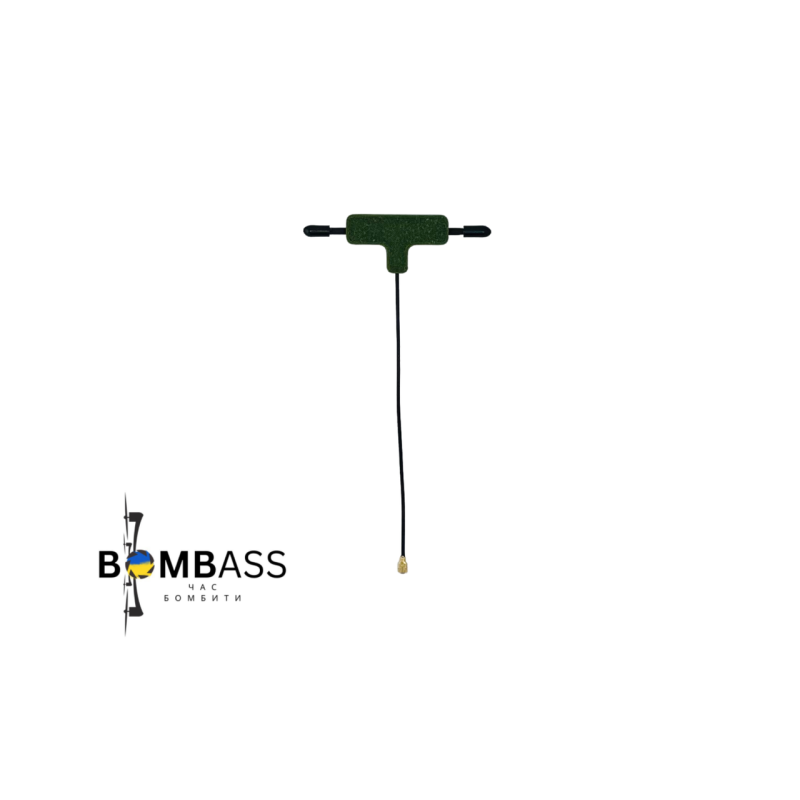

Dipole Antenna 2.3 GHz RX (for any frequency from 1.9 GHz to 2.8 GHz)
The professional dipole antenna from BombAss is a versatile solution for signal reception across a wide frequency range. The model is positioned as a 2.3 GHz RX version but is custom-made for any frequency from 1.9 GHz to 2.8 GHz, making it ideal for FPV projects, receivers, and other wireless systems requiring precise tuning to the operating frequency.
The antenna ensures stable operation thanks to optimized parameters: a bandwidth of approximately 150 MHz and a Voltage Standing Wave Ratio (VSWR) of less than 1.5, guaranteeing effective reception in the selected range. The standard gain is 2.15 dBi, providing consistent performance for omnidirectional tasks.
| Parameter | Value |
|---|---|
| Brand | BombAss |
| Product Type | Antennas > Dipole Antennas |
| Frequency Range | 1.9 GHz – 2.8 GHz (custom-made for any frequency) |
| Bandwidth | 150 MHz (VSWR < 1.5) |
| Connector Type | IPEX1 (1.13 mm) |
| Cable Length | 10 / 15 cm |
| Radiation Pattern | Toroidal |
| Gain | 2.15 dBi |
| Water Resistance | IP65 |
| Additional Information | Tuning to the desired frequency using a vector analyzer; TG - BombAssFPV |
The design allows for outdoor operation thanks to IP65 protection, so the antenna withstands moderate humidity and dust. The compact cable length — 10 or 15 cm — makes it convenient for integration into compact remotes or receivers without undue structural load. The reliable IPEX1 (1.13 mm) connector ensures simple and stable connection to modules and boards.
Each antenna unit can be individually tuned to the specified frequency using a vector analyzer, if necessary, which helps reduce VSWR and improve reception quality. This is especially important for projects where reflection indicators and maximally efficient use of bandwidth are critical.
- Universal manufacturing range: 1.9–2.8 GHz;
- Stable bandwidth of 150 MHz at VSWR < 1.5;
- Reliable IPEX1 (1.13 mm) connector and two cable length options: 10 or 15 cm;
- IP65 water resistance for outdoor use;
- Individual tuning to the specified frequency using a vector analyzer;
- Recommended for FPV projects, receivers, and radio transmission systems.
If you need a reliable dipole antenna from BombAss with the ability to precisely tune to the operating frequency — this model combines ease of integration, compactness, and quality protection from external factors. For additional questions and custom tuning orders for the desired frequency, contact TG - BombAssFPV.
