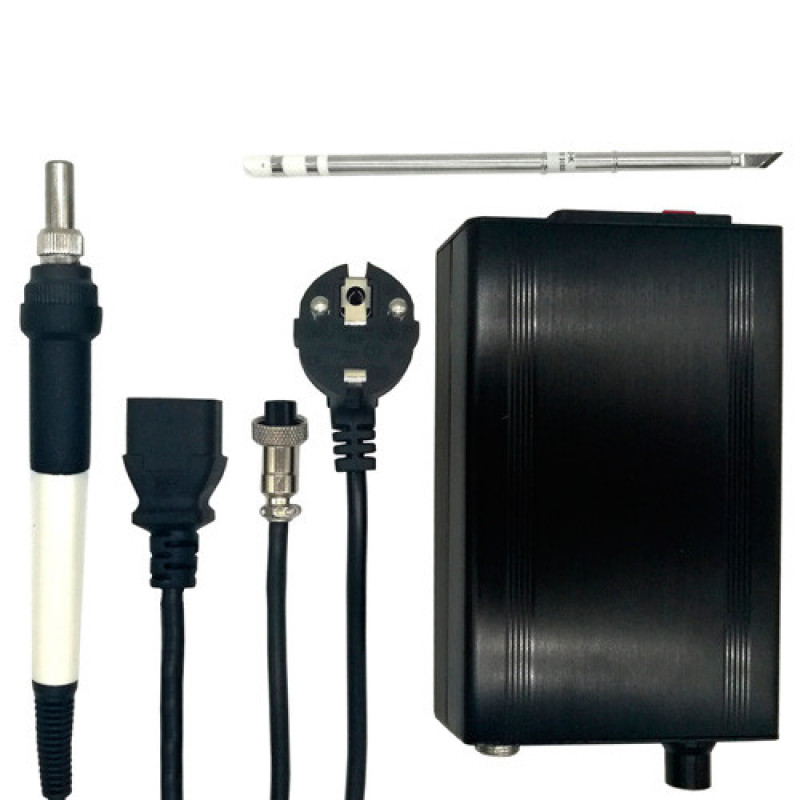

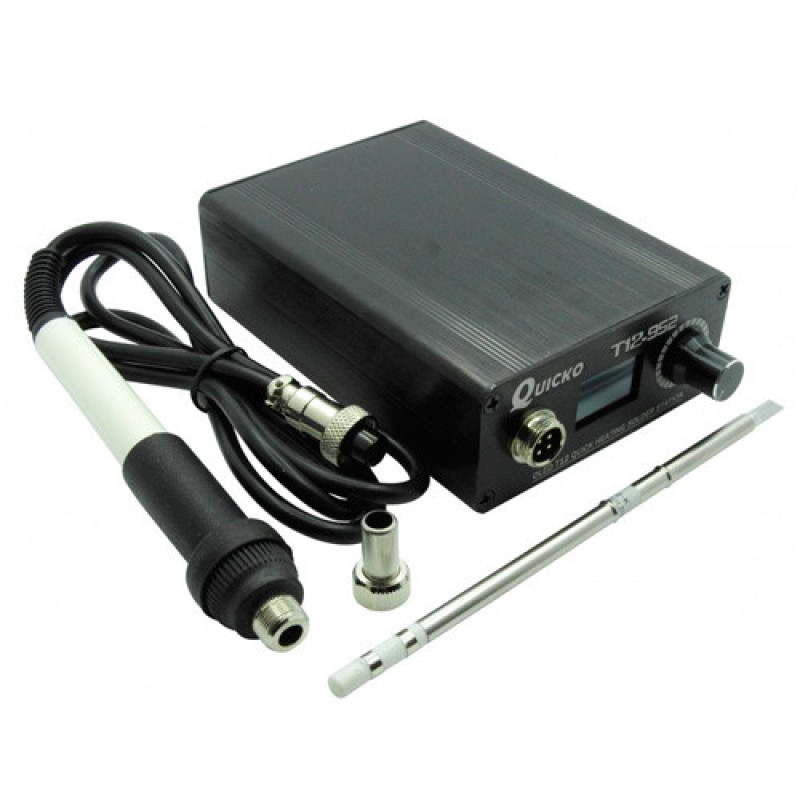

Soldering Station QUICKO T12-952 OLED for Hakko T12 Tips 108W with PSU
Product Code: FA112-1653774008-112
2 536 UAH
Main specifications
Compatibility with tips:
Hakko T12
Device type:
Compact Digital Soldering Station
Display type:
Color OLED display
Form Factor:
Compact desktop soldering station with integrated power supply
Heating rate:
Up to 8 seconds to operating temperature
All specifications
We will deliver this product:
Payment
Bought together with
Description
High-quality compact QUICKO T12-952 soldering station for Hakko T12 tips. It differs from its younger brother T12-942 by a built-in power supply (the station is slightly larger, but more convenient than with an external unit) and higher power (tip heating speed).
Color easy-to-read OLED display showing set and current tip temperature, internal station temperature, supply voltage, PWM duty cycle
Menu with calibration, auto-off settings, etc.; encoder control
907-type handle (aviation connector) with vibration sensor, silicone nozzle, and soft 1m cable
Temperature adjustment range: 200-480 °С (it's worth remembering that Hakko T12 tips should not be heated above 380 °С)
Power supply: from 220 V mains (built-in 24 V 4.5 A power supply, mains cable included)
Maximum power: 108 W (heats to solder melting temperature in 8 seconds)
Case size (excluding encoder): 12.8 x 8.8 x 3.8 cm
Weight: 0.3 kg
Hakko T12-K tip included
Color easy-to-read OLED display showing set and current tip temperature, internal station temperature, supply voltage, PWM duty cycle
Menu with calibration, auto-off settings, etc.; encoder control
907-type handle (aviation connector) with vibration sensor, silicone nozzle, and soft 1m cable
Temperature adjustment range: 200-480 °С (it's worth remembering that Hakko T12 tips should not be heated above 380 °С)
Power supply: from 220 V mains (built-in 24 V 4.5 A power supply, mains cable included)
Maximum power: 108 W (heats to solder melting temperature in 8 seconds)
Case size (excluding encoder): 12.8 x 8.8 x 3.8 cm
Weight: 0.3 kg
Hakko T12-K tip included
Specifications
Compatibility with tips
Hakko T12
Device type
Compact Digital Soldering Station
Display type
Color OLED display
Form Factor
Compact desktop soldering station with integrated power supply
Heating rate
Up to 8 seconds to operating temperature
Power
up to 108 W
Power source
220V AC (built-in 24V 4.5A power supply)
Purpose
Professional electronics repair, SMD component soldering, board servicing, precision assembly work
Temperature range
200°C – 480°C (recommended up to 380°C for T12 tips)
