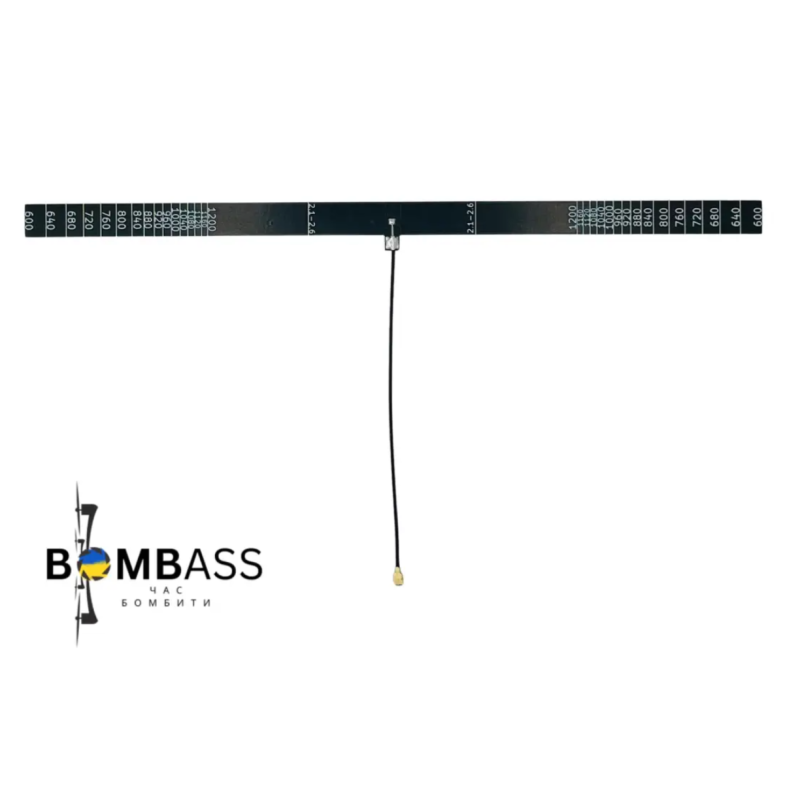

Cut Dipole RX 580-2600MHz

Manufacturer: BombAss
Antenna Type: Dipole
Bandwidth (VSWR less than 1.5): 580 MHz — 2600 MHz
Connector Type: IPEX1
Cable Length: 10 cm
Radiation Pattern: Toroidal
Gain: 2.15 dBi
Water Resistance: IP65
TG: BombAssFPV

Brief Overview

The Cut Dipole RX 580-2600MHz from BombAss is a compact and versatile receiving antenna designed for stable reception across a wide frequency range. With an operating band from 580 MHz to 2600 MHz at a VSWR of less than 1.5, this model is suitable for various applications: receivers, telemetry, FPV systems, communication modules, and multi-band solutions where compactness and reliability are essential.

Features and Benefits

• Wide band 580–2600 MHz ensures compatibility with many bands and devices.
• Toroidal radiation pattern guarantees uniform coverage in all directions around the antenna, which is important for mobile systems.
• Gain of 2.15 dBi provides balanced reception without strong beam focusing.
• Short 10 cm cable with IPEX1 connector facilitates integration into compact boards and enclosures.
• IP65 protection rating allows the antenna to be used outdoors in conditions of high humidity and dust (not for prolonged submersion in water).

The antenna is equipped with an IPEX1 connector, making it compatible with a large number of modern boards and receivers that require a compact external antenna. The 10 cm cable length is optimal for mounting inside an enclosure or in confined spaces, which is especially important for FPV enclosures and small receivers. The model is marked TG BombAssFPV, which helps quickly identify compatible solutions and accessories.

Operating Recommendations

For best reception quality, position the antenna vertically or according to the receiver's design requirements. Due to the IPEX1 connector, installation requires care: avoid excessive cable tension and sharp bends near the connection. IP65 provides protection against rain and dust, but continuous submersion in water or operation under prolonged aggressive conditions is not recommended. This model is suitable for both stationary and mobile installations where weight, compactness, and a wide reception band are important.
