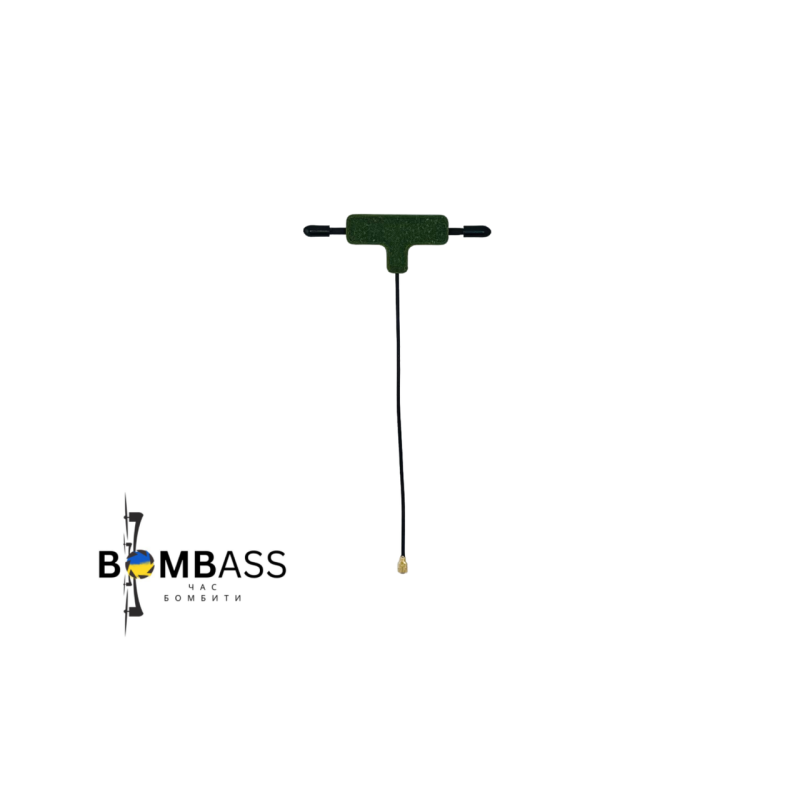

Dipole Antenna 2.0 GHz RX (tuned for 1.9–2.8 GHz)

We offer a high-quality BombAss brand dipole antenna, optimized for 2.0 GHz and manufactured for any operating frequency in the 1.9 GHz - 2.8 GHz range. Each antenna is individually tuned to the specified frequency using a vector analyzer to achieve the desired VSWR and bandwidth, ensuring stable signal reception in practical operating conditions.

Key Features

• Frequency Range: 1.9 GHz - 2.8 GHz (custom-made for any frequency in this range)
• Antenna Type: Dipole
• Bandwidth: 150 MHz (VSWR less than 1.5)
• Connector: IPEX1 (1.13 mm)
• Cable Length: 10 or 15 cm
• Radiation Pattern: Toroidal
• Gain: 2.15 dBi
• Water Protection: IP65
• Manufacturer / Brand: BombAss
• Tags / Markings: TG - BombAssFPV

The dipole design with a toroidal radiation pattern provides uniform coverage around the antenna, making it an ideal solution for drones, FPV systems, receivers, and other radio devices where reception quality and compact dimensions are important. With a gain of 2.15 dBi and a bandwidth of 150 MHz at VSWR < 1.5, the antenna demonstrates reliable performance across a wide range of operating frequencies.

The IPEX1 (1.13 mm) connector ensures compatibility with popular receivers and modules. Available cable length options are 10 cm or 15 cm, allowing you to choose the optimal solution for a specific mounting scheme. IP65 standard water protection guarantees resistance to dust and water jets, making the antenna suitable for outdoor use under moderate loads.

We perform fine-tuning on a vector analyzer, so you receive a finished product with transparent parameters: VSWR, bandwidth, and optimal gain. The antenna will be useful for FPV enthusiasts, radio module developers, design engineers, and service centers that require a tuned solution for a specific frequency within 1.9-2.8 GHz.

Order details: brand BombAss, product type: Antennas > Dipole Antennas. If you need a custom cable length or fine-tuning for non-standard operating conditions, please contact us, and we will select the optimal technical solution based on your requirements.

Technical parameters according to description: bandwidth 150 MHz at VSWR less than 1.5, IPEX1 (1.13 mm) connector, cable length 10 or 15 cm, IP65 water protection, gain 2.15 dBi. Tags: TG - BombAssFPV.
