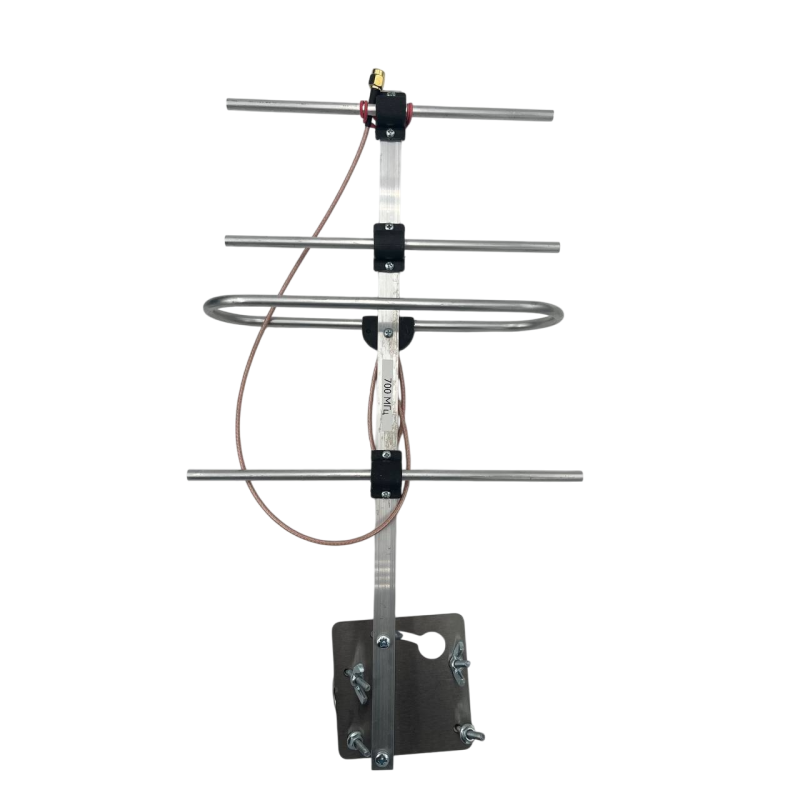

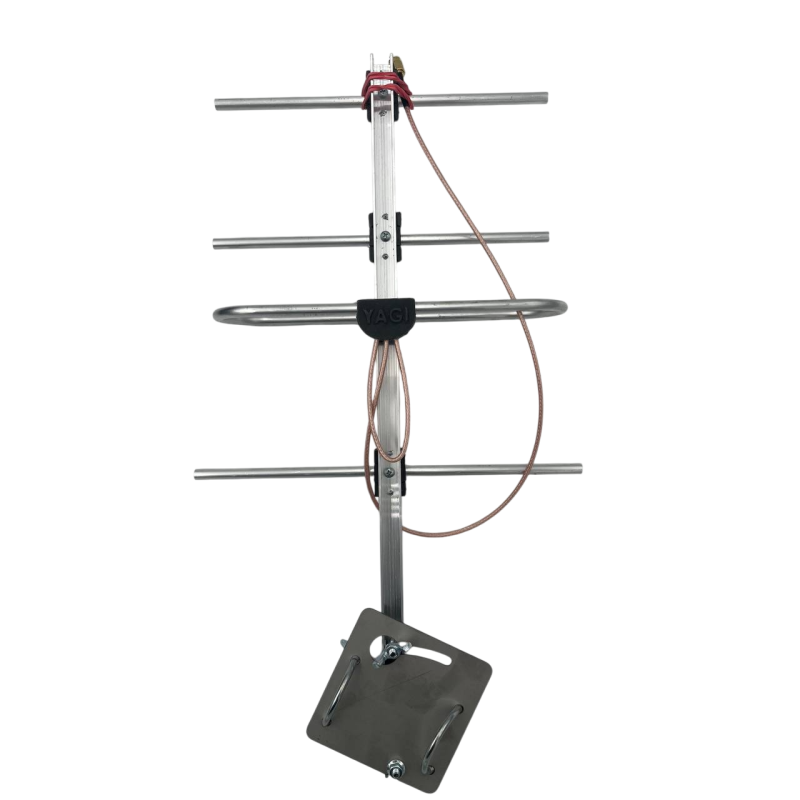

SkyReach mini Yagi Directional Antenna for 700 MHz

The Yagi directional antenna for 700 MHz is a compact and efficient design that combines lightness and reliability. This model from SkyReach is designed to operate in the 700 MHz frequency range and has a gain of 8.6 dBi, making it an excellent choice for signal transmission over medium and long distances. The antenna is made in a mini Yagi form factor with 4 sections and an SMA connector, ensuring easy connection to various equipment.

Device Description

This antenna ensures stable operation due to a low standing wave ratio — SWR of 1.1, which reduces losses during signal transmission. The beam angle is 40°, providing a precise directional beam to increase sensitivity in the desired direction. Polarization is linear, input impedance is 50 Ohms, and the design includes 2 directors to improve the radiation pattern.

Specifications:

• Frequency: 700 MHz
• Gain: 8.6 dBi
• Beam Angle: 40°
• SWR: 1.1
• Polarization: Linear
• Input Impedance: 50 Ohms
• Number of Directors: 2
• Connection Cable Length: 410 mm
• Connector: SMA
• Material: Aluminum (light, durable)
• Size: 370 x 210 x 55 mm
• Weight: 190 g
• Design: 4 sections
• Manufacturer: SkyReach

Advantages:

• Lightweight and Durable Construction: Aluminum ensures a long service life and resistance to weather conditions.
• High Gain (8.6 dBi): Allows for stable communication over longer distances and improves reception/transmission levels.
• Low SWR (1.1): Minimizes signal loss and increases system efficiency.
• Precise Directionality (40° angle): Ideal for tasks where signal direction selectivity is important.
• Universal Connectivity: The SMA connector allows for easy integration of the antenna with various equipment.

Overall, the SkyReach mini Yagi directional antenna is an excellent solution for users who need a compact, lightweight, yet powerful external antenna for operation at 700 MHz. It is suitable for radio communication, wireless data transmission systems, television reception, and other applications where signal directionality and stability are important.
