Yagi Antenna 2300-2600 MHz — Directional Plastic Antenna 8-9 dBi

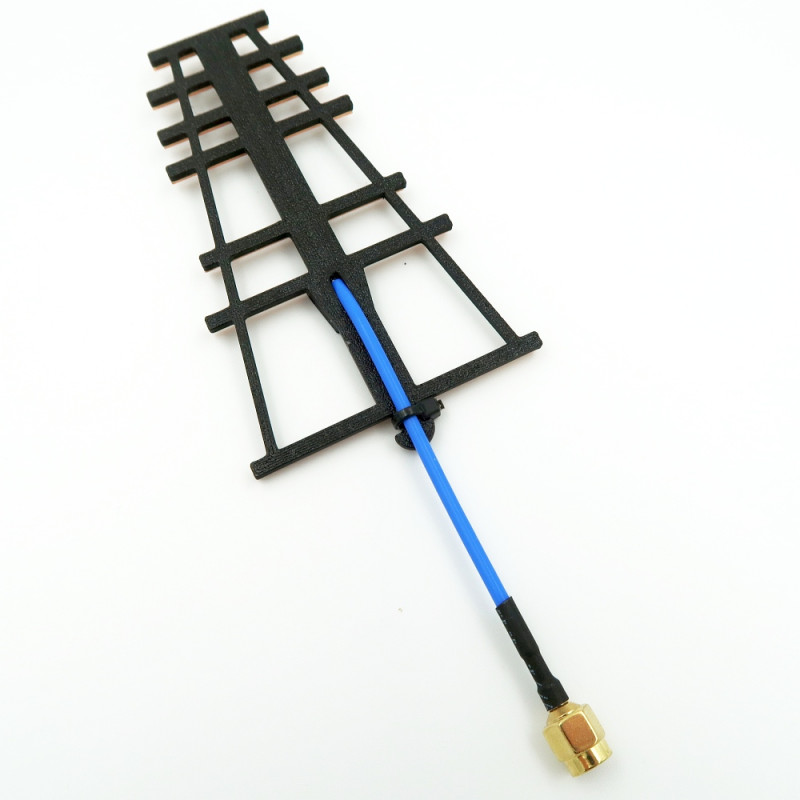

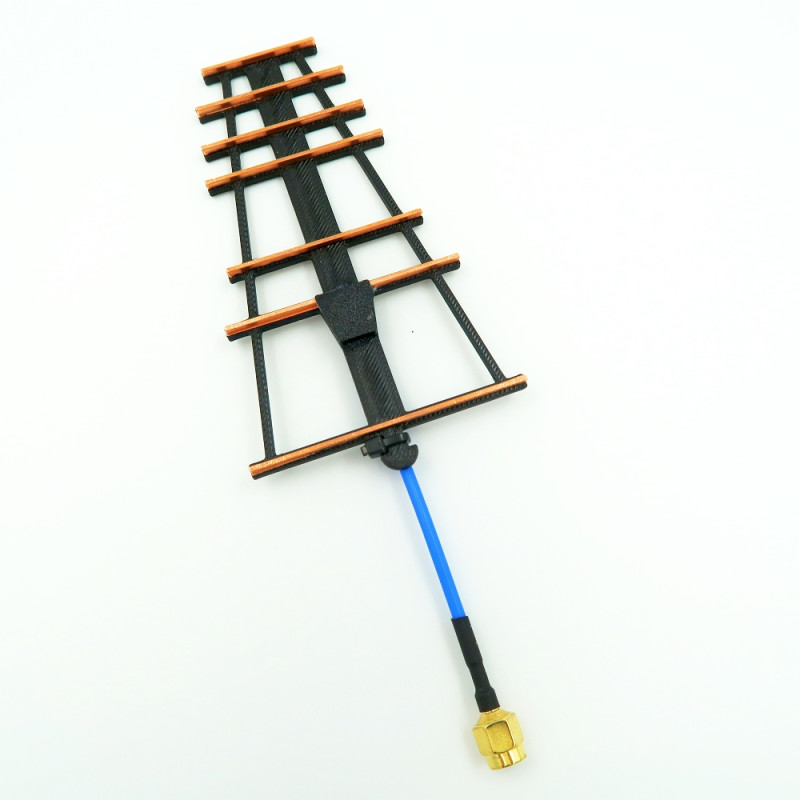

The Yagi Antenna from [brand] is a compact and efficient directional antenna designed to operate in the 2300-2600 MHz range. Structurally, the antenna consists of an active element (dipole), a reflector, and seven directors (sections) mounted on a plastic support base, where the metal conductors are directly attached to the plastic. This combination provides good mechanical lightness, corrosion resistance, and reduces the weight of the structure while maintaining high electrical performance.

The model has a gain of 8-9 dBi, which allows it to focus radiation energy into a narrow beam with a beam angle of approximately 37°. Thanks to linear polarization, the antenna is compatible with most radio systems that use single polarization. The design includes an SMA connector for reliable connection, and the cable is characterized as a hard pigtail (permanent rigid cable lead), which simplifies installation and connection to equipment.

Advantages and Applications

• High directivity and gain for improved communication range and quality.
• The polymer (plastic) base ensures low weight — only 12 g, which is important for mobile applications and drone mounting.
• Low visibility and resistance to external influences — plastic reduces glare and corrosion risks.
• Optimal for telecommunications, radio communication between units, signal relay, and electronic reconnaissance (SIGINT).
• Can be used for directional interception or signal amplification when performing special tasks.

The antenna is well-suited for installation on stationary masts, mobile platforms, and unmanned aerial vehicles (UAVs) where compactness, low weight, and reliable connections are important. It combines ease of installation and mechanical reliability with high electrical performance in the 2300-2600 MHz operating range.

Detailed technical specifications are provided below:

The plastic Yagi antenna is an optimal choice for cases where a combination of directivity, low weight, and ease of installation is important. It allows for improved signal reception and transmission within the 2300-2600 MHz operating range, while remaining compact and convenient to use. This model can be purchased at the Flash Army online store, which offers a wide range of directional antennas for various tasks.
