Yagi Antenna 960MHz by — 4 Sections, 8.6 dBi

The Yagi Antenna 960MHz by — is a directional radio frequency device designed to improve reception and transmission in the 960 MHz band. Its four-section (director) design ensures stable directionality and a concentrated beam pattern with a 40° beamwidth, allowing for effective energy focusing in the desired direction and reducing the impact of side interference. The antenna's gain is 8.6 dBi, making it suitable for medium and long-range links, local networks, video surveillance systems, and specialized wireless solutions.

The antenna features linear polarization, which enhances compatibility with most receivers and transmitters in this frequency range. A standard SMA connector is used for connection, ensuring simple integration with typical RF cables and equipment. The antenna body and elements are made of aluminum, guaranteeing low weight and high corrosion resistance for outdoor operation.

Key Features

• Frequency: 960 MHz
• Polarization: Linear
• Number of sections (directors): 4
• Beamwidth: 40°
• Connector: SMA
• Material: Aluminum
• Gain: 8.6 dBi
• Dimensions: 298*154*55 mm
• Weight: 170 g

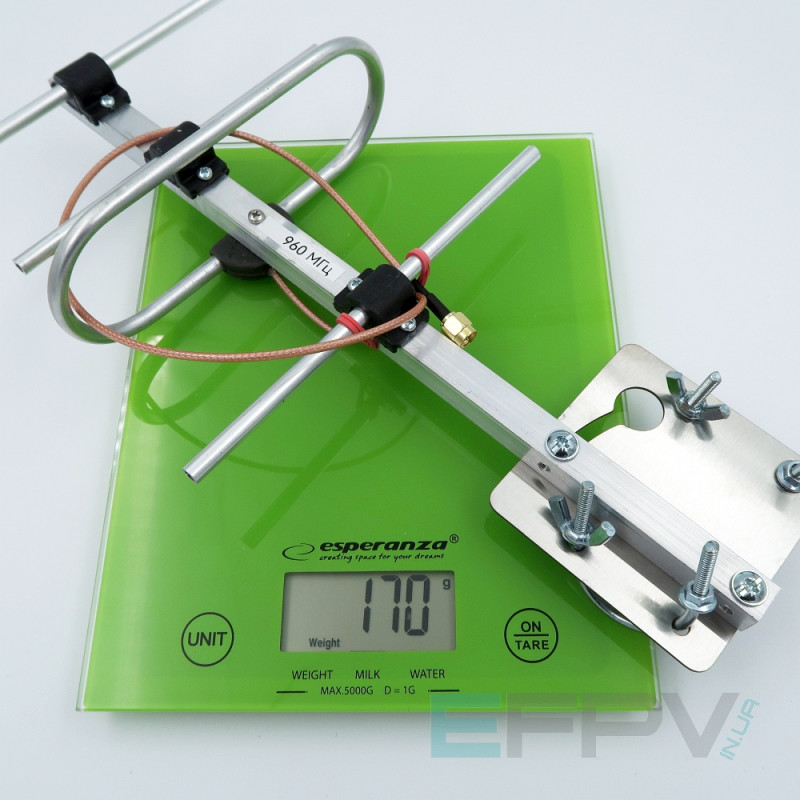

Compact dimensions of 298*154*55 mm and a weight of only 170 g make this antenna convenient for mounting on tripods, brackets, or other fixtures without significant structural load. The aluminum frame combines strength and durability, which is crucial for outdoor installations where corrosion resistance and weather impact are paramount.

With a gain of 8.6 dBi and a narrow 40° beamwidth, the Yagi Antenna 960MHz by is optimal for directional links where it is necessary to concentrate the signal in a specific direction to improve channel quality or minimize side interference. It is suitable for terrestrial links, radio monitoring, local networks, data transmission, and video surveillance systems where directional repeatability and connection stability are important.

Simple installation and a standard SMA connector make connection quick and convenient even for users without specialized skills. The combination of methodical directionality, lightweight design, and corrosion resistance provides an economical and reliable solution for both professional installations and amateur projects.

This model belongs to the category: Antennas > Yagi Antennas and is offered by the Flash Army online store; it combines quality parameters, compact size, and accessible weight, making it a practical choice for a wide range of applications at 960 MHz.

If you need stability, directionality, and reliability in the 960 MHz band, the Yagi antenna by will meet these requirements. You will receive a meticulously designed structure, a standard SMA interface, and materials that ensure long-term operation in field conditions.
