The seller received QUALITY GOODS for this item!
WE WILL SEND GRAPHS FOR OTHER FREQUENCIES IF NEEDED

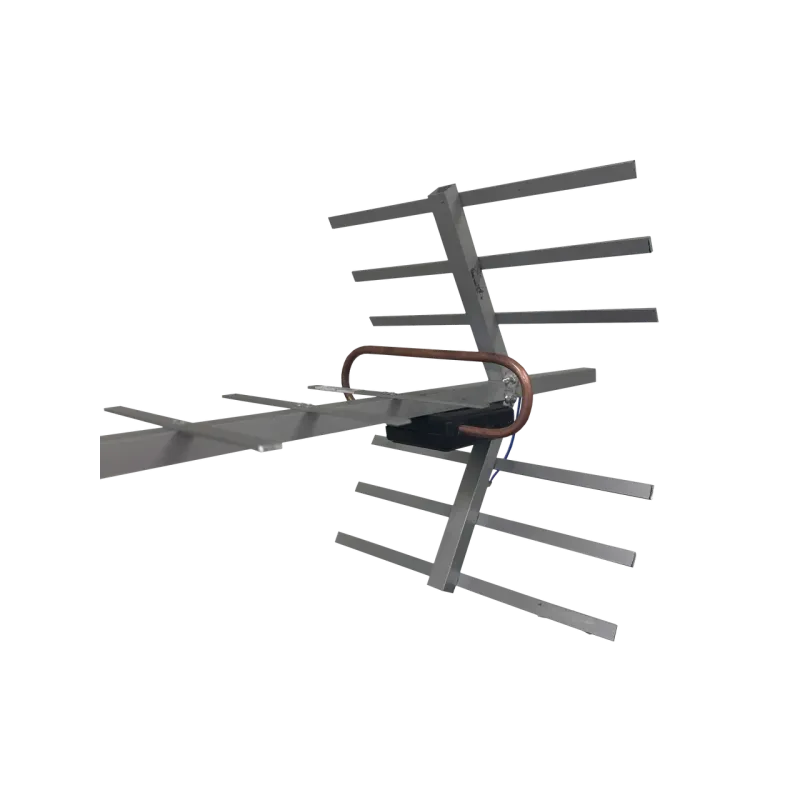

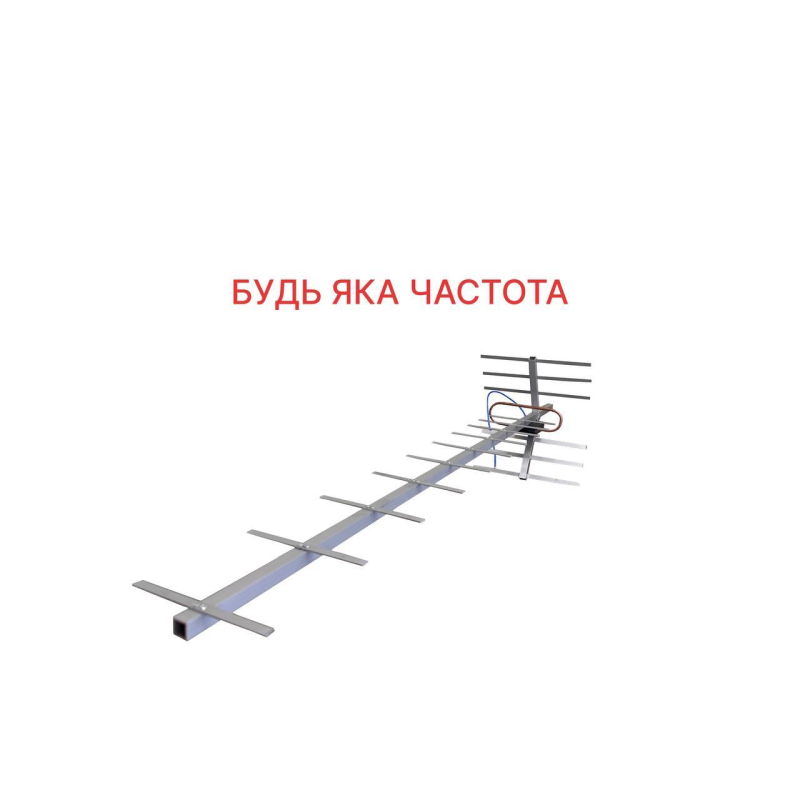

Yagi antenna for FPV system control
This antenna has a wide frequency range : ANY FREQUENCY!
*specify your frequency in the order comments
Gain graph for 670-870 MHz antenna:
VSWR graph for 670-870 MHz antenna:
Gain graph for 880-1080 MHz antenna:
VSWR graph for 880-1080 antenna:
High-quality RG402 cable is used with a transmission speed of 80% the speed of light.

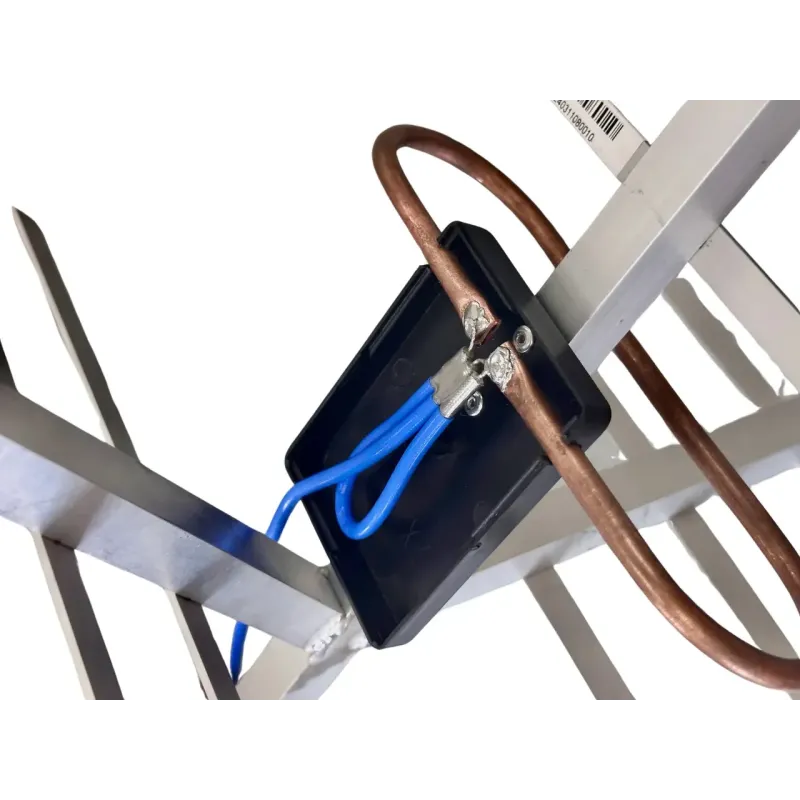

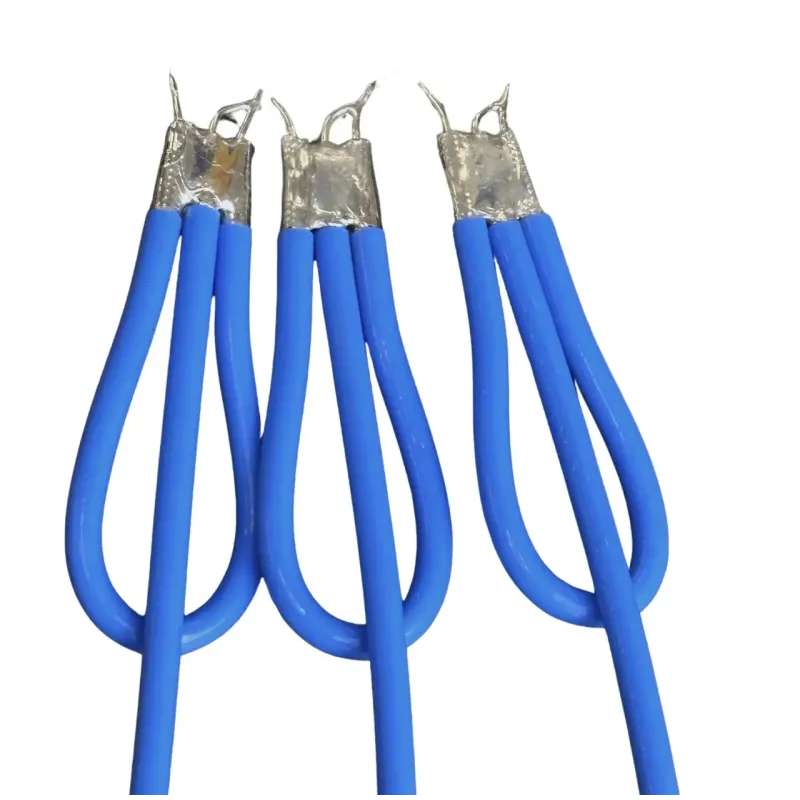

Balun for Yagi:
Specifications:
Antenna type: Yagi.
Purpose: FPV control at frequencies in the 670-1080 MHz range.
Antenna material: aluminum.
Number of gain elements: 10.
Vibrator material: copper/aluminum.
Cable type: RG402.
Connector type: SMA (for RG402 cable). Different connectors can be made for your devices.
Frequency: 670-870MHz (12-15dBi)/880-1080MHz (12-15dBi). (ANY FREQUENCY!)
Connection cable length: 50cm (can be made longer upon request)
Balun: RG402 common ground (photo above).
