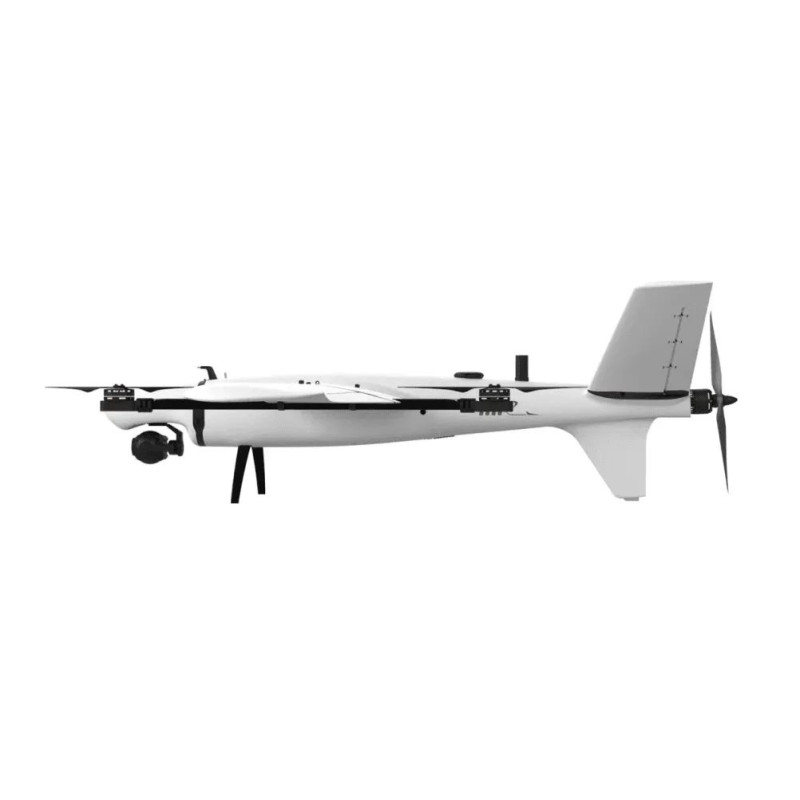

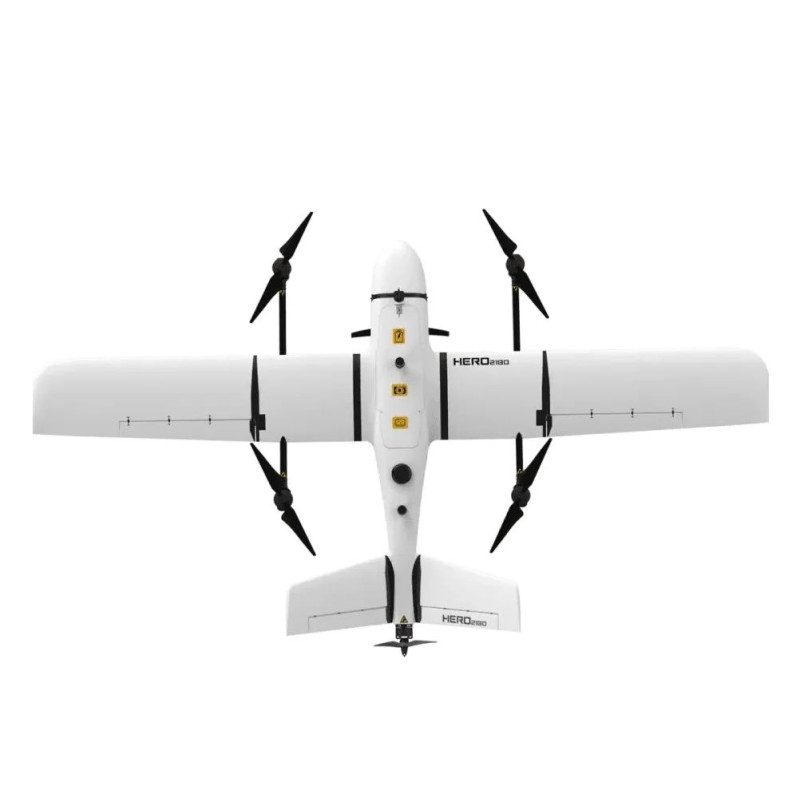

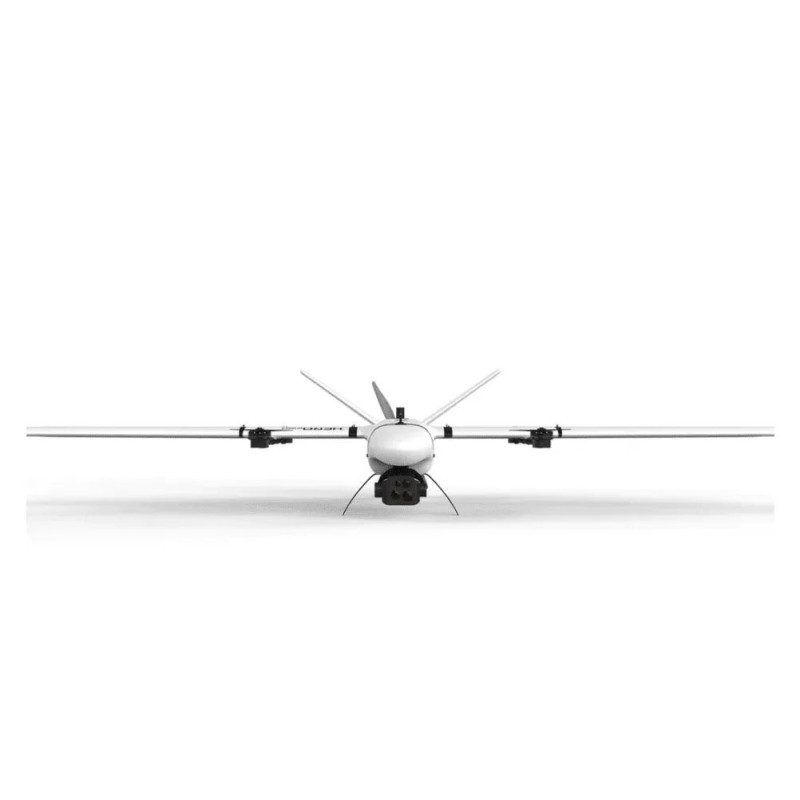

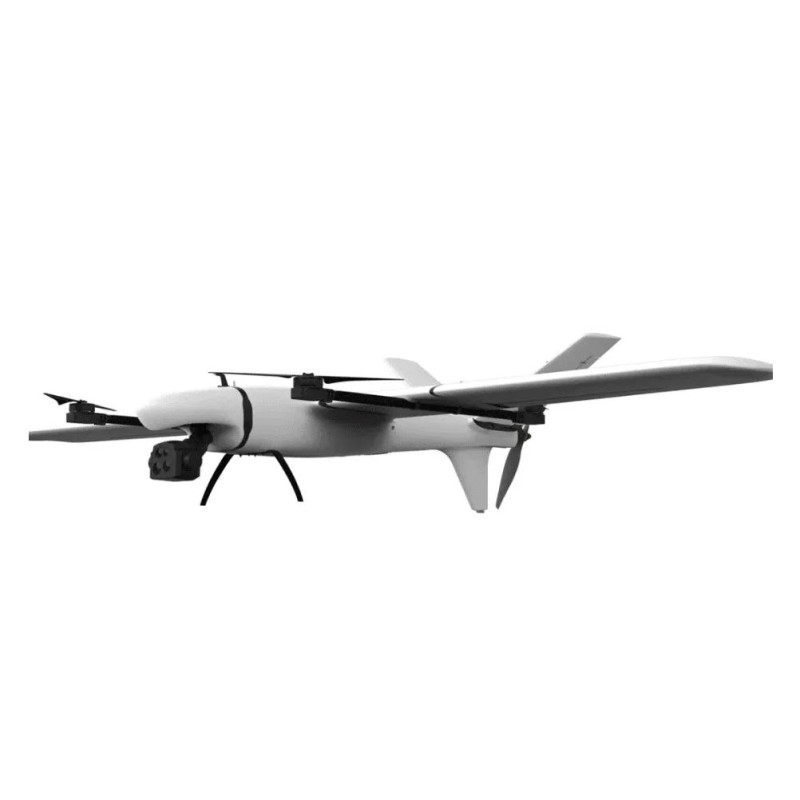

MakeFlyEasy (MFE) Hero VTOL aircraft model kit — overview and purpose

Model: Makeflyeasy (MFE) Hero VTOL aircraft model kit. Manufacturer: MakeFlyEasy. Category: Drones & Quadcopters > Aircraft Models.

Configuration formats: PNP (Plug-N-Play) and KIT (assembly kit)

PNP (Plug-N-Play): in this format, the model comes with basic electronic equipment such as servos, motor, electronic speed controller (ESC), and other basic components. For full operation, the user needs to add a battery, receiver, and use their own transmitter (radio remote control). The kit does not include a flight controller, navigation modules (GNSS), FPV camera, video transmitter (VTX), telemetry, and other additional equipment — these components are selected separately according to the model's tasks and individual user needs.

KIT (assembly kit)

KIT — this is only the structural part of the model: fuselage and airframe elements without any electronic or power equipment. This format is optimal for those who want to fully personalize the aircraft model: independently choose and install the motor, ESC, servos, flight controller, power system, cameras, telemetry, etc. The KIT allows creating a modification for specific tasks — for example, for long-range autonomous flights, industrial monitoring, or FPV missions.

Key features of MFE Hero VTOL PNP/KIT:

The technical parameters of the MFE Hero VTOL demonstrate its versatility: a wingspan of 2180 mm and a wing area of 53 dm² ensure efficient lift and stability at cruising speeds of 17-22 m/s, while a compact fuselage length of 1140 mm and fuselage height of 255 mm make the model convenient for transport and deployment in the field. The 755 mm vertical bracket (including motor base) simplifies the installation of the propulsion system for VTOL modes.

• Application advantages: hybrid design for vertical takeoff and efficient cruising flight.
• Configuration flexibility: ability to choose your own set of electronics and power modules in KIT format or quick deployment with minimal preparation in PNP format.
• Application areas: aerial photography, inspections, monitoring, FPV missions, scientific and industrial tasks with adaptation for specific sensors.

It is recommended to carefully select additional components for the PNP version: batteries of appropriate capacity and discharge current, a receiver and compatible radio controller, as well as telemetry or GNSS modules as needed for autonomy. For the KIT version, plan the installation of the motor, ESC, servos, and flight controller taking into account the fuselage dimensions and platform payload capacity.

Note: the specifications indicate angles and speeds (angle of attack 0-2°, wing incidence angle 2.9°, stall speed 12 m/s, conversion speed 14 m/s, maximum climb angles 3.5° and dive 5°, maximum roll angle 30°), which are important for setting flight modes and predicting model behavior in various flight conditions.
