Yagi Antenna 500MHz, 4 Sections, 8.6 dBi from

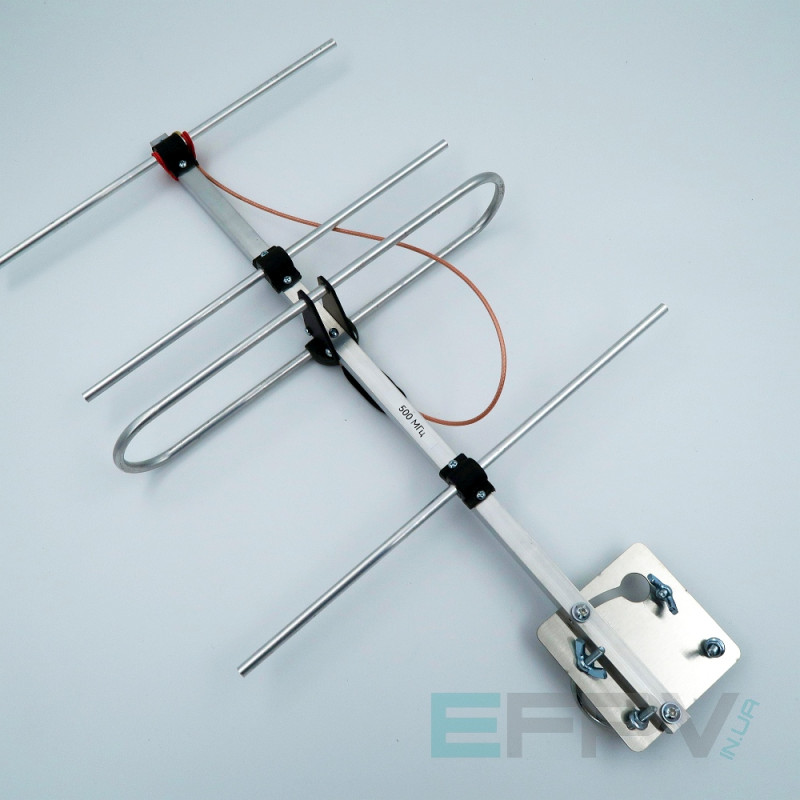

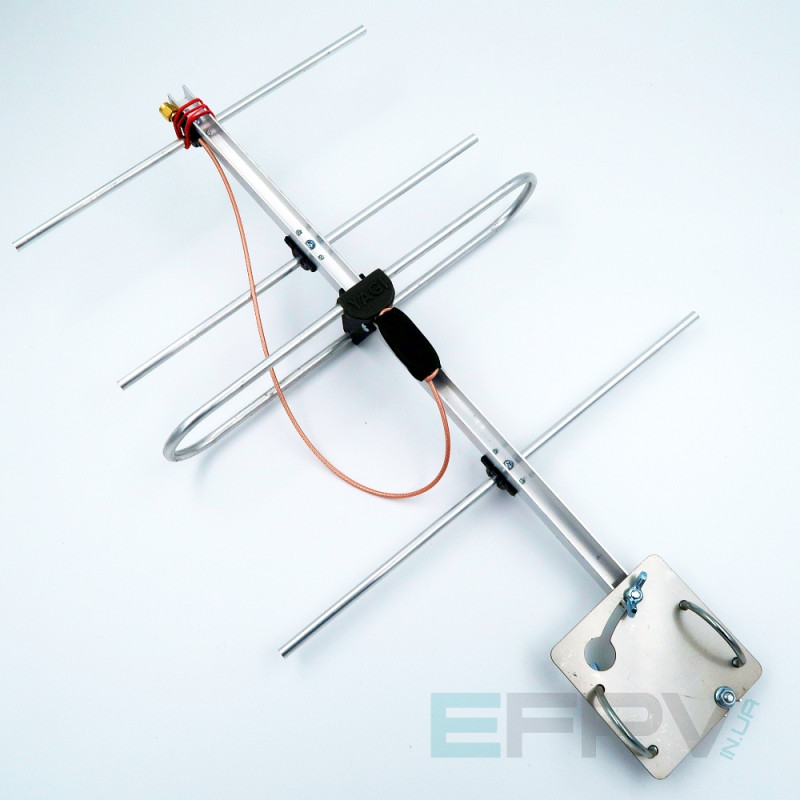

The Yagi Antenna 500MHz 4 sections 8.6 dBi is a directional outdoor/indoor antenna from the manufacturer, designed to amplify signals at 500 MHz. This model combines compact dimensions of 448*299*60 mm and a light weight of 224 g with a durable aluminum casing, ensuring corrosion resistance and easy mounting on masts, roofs, or facades. The antenna is ideal for improving reception in radio communications, television, mobile networks, Wi-Fi, and other wireless systems where directionality and an increased signal-to-noise ratio are required.
Key Advantages:
- 8.6 dBi gain for clearer signal reception and transmission.
- Operating frequency: 500 MHz — optimal for local radio communications and specialized applications.
- 4-section (director) design provides a concentrated radiation beam.
- A 40° beam angle allows focusing the signal in a narrow sector to reduce interference.
- SMA connector ensures simple connection to a wide range of equipment.
- Linear polarization guarantees stability with correct antenna orientation.
- Aluminum casing — lightness and durability in various operating conditions.
Application and Installation Recommendations

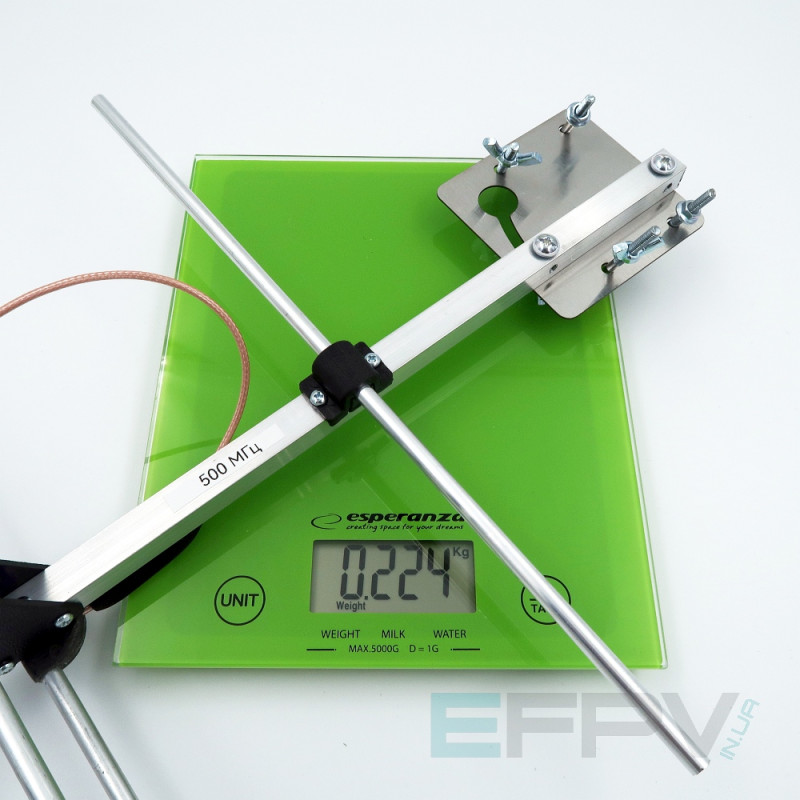

For maximum efficiency, install the antenna in the direction of the signal source. Due to its directionality and narrow 40° beam angle, the antenna is particularly effective when creating targeted point-to-point channels or operating in areas with weak coverage. Its light weight of 224 g and compact size facilitate mounting and direction adjustment. It is recommended to use sturdy mounts on masts or facades and consider the receiver's polarization to minimize losses.
Technical Specifications
| Parameter | Value |
|---|---|
| Frequency | 500 MHz |
| Polarization | linear |
| Number of sections (directors) | 4 |
| Beam angle | 40° |
| Connector | SMA |
| Material | aluminum |
| Gain | 8.6 dBi |
| Size | 448*299*60 mm |
| Weight | 224 g |
| Manufacturer | |
| Category | Antennas > Yagi Antennas |
The Yagi Antenna 500MHz 4 sections 8.6 dBi from — is an optimal choice for users seeking a compact, lightweight, and effective directional antenna. It is suitable for outdoor and indoor installation, allowing for reduced interference and increased communication stability. At our online store Flash Army, you can get advice on selecting and installing this model. Manufacturer:. Product type: Antennas > Yagi Antennas.
