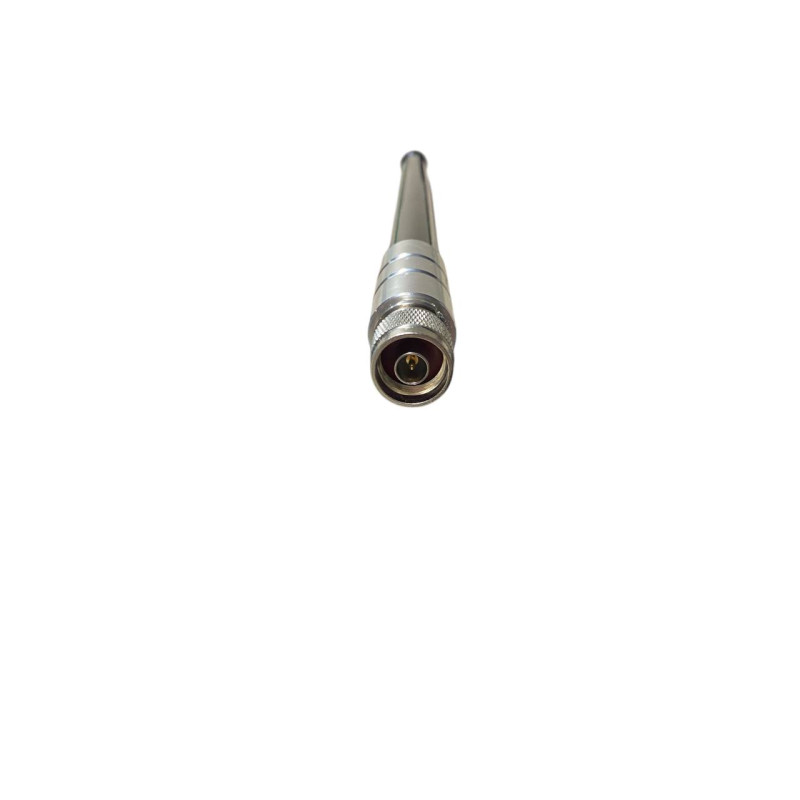

Omnidirectional EW Antenna (590-700 MHz), 60W, Ø18 mm, 40 cm by BlueBird

We offer a professional omnidirectional antenna from the manufacturer BlueBird, designed specifically for use in electronic warfare (EW) equipment. This model combines compact dimensions with high operating power and reliable performance in field and stationary conditions. The antenna is optimized for the 590-700 MHz frequency range and ensures stable operation in a wide range of tasks requiring a universal omnidirectional radiation pattern.

Advantages and Applications

The antenna provides reliable signal reception and transmission thanks to its optimized design: a maximum power of up to 60 W allows for use under high load conditions, and vertical polarization increases compatibility with many types of equipment. Compact physical dimensions — a diameter of Ø18 mm and a length of 40 cm — facilitate mounting on transport platforms, mobile complexes, and stationary devices without sacrificing technical performance.

Technical Specifications

• Frequency Range: 590-700 MHz
• Maximum Power: 60 W
• Antenna Type: Omnidirectional
• Polarization: Vertical
• Gain: 1-3 dBi
• VSWR: ≤ 1.5
• Impedance: 50 Ohm
• Connector Type: N-type male
• Diameter: 18 mm
• Length: 40 cm
• Operating Temperature: -25°C to +55°C
• Protection Rating: IP65 (dust and moisture protection)

The N-type male connector ensures a reliable electrical and mechanical connection with standard 50 Ohm equipment. A low VSWR (≤1.5) indicates minimal reflected waves and high energy transfer efficiency in the operating range, while a gain of 1-3 dBi guarantees stable performance in omnidirectional coverage mode.

Reliability and Operating Conditions

The antenna's design is intended for operation in challenging climatic conditions: an operating temperature range of -25°C to +55°C and IP65 protection ensure durability and resistance to dust and moisture. This makes the antenna ideal for field conditions, mobile complexes, and stationary systems where equipment reliability under external influences is critical.

Installation and Maintenance Recommendations

Before installation, ensure compatibility of the connector and cable (50 Ohm). For optimal performance, avoid placing the antenna near large metal surfaces or sources of strong interference. Regularly check the condition of seals and fasteners, especially in high humidity conditions, to ensure long-term and uninterrupted operation.

The omnidirectional EW antenna from BlueBird — is a practical and reliable solution for professional use: a wide frequency range of 590-700 MHz, power up to 60 W, compact dimensions Ø18 mm x 40 cm, IP65 protection, and temperature resistance make it a versatile choice for various systems. Product category: Antennas.
