AB 800-1800 microstrip in flexible-base housing AB-Antennas

The professional AB-Antennas series antenna is a microstrip coplanar design developed for a wide range of applications in modern communication systems. The 800-1800MHz microstrip coplanar antenna provides reliable signal reception and transmission in the 800–1800 MHz range, making it an optimal choice for FPV systems, radio monitoring, drone detectors, and other devices where compactness, stability, and versatility are required.

Key advantages

• Universal range: 800–1800 MHz, allowing operation with various standards and equipment.
• Coplanar microstrip design: ensures low weight and compact dimensions in a flexible-base housing.
• Low gain: 2 dB gain — optimal for balancing sensitivity and stability in the near field.
• Reliable connector: SMA male for quick and secure connection to most radio devices.

The antenna can operate in FPV communication systems, radio monitoring, drone detectors, and other devices where compactness and stable operation in a wide frequency range are important. Thanks to its omnidirectional radiation pattern, it provides uniform signal reception from all directions, which is convenient for mobile platforms and monitoring stations.

Specifications

• Gain: 2 dB
• Connector: SMA male
• Operating frequency range: 800–1800 MHz

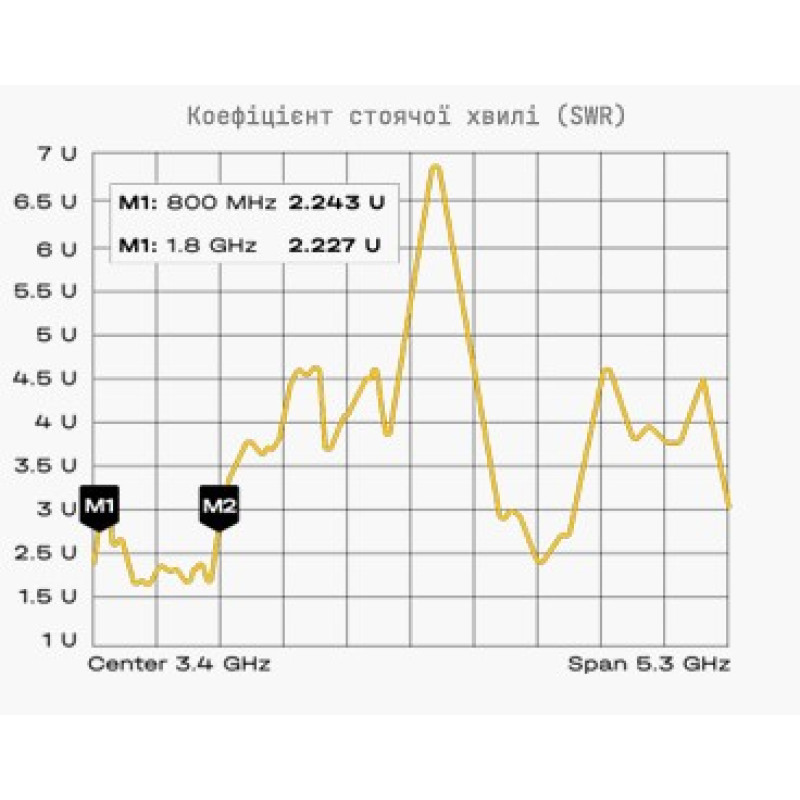

• VSWR: < 3

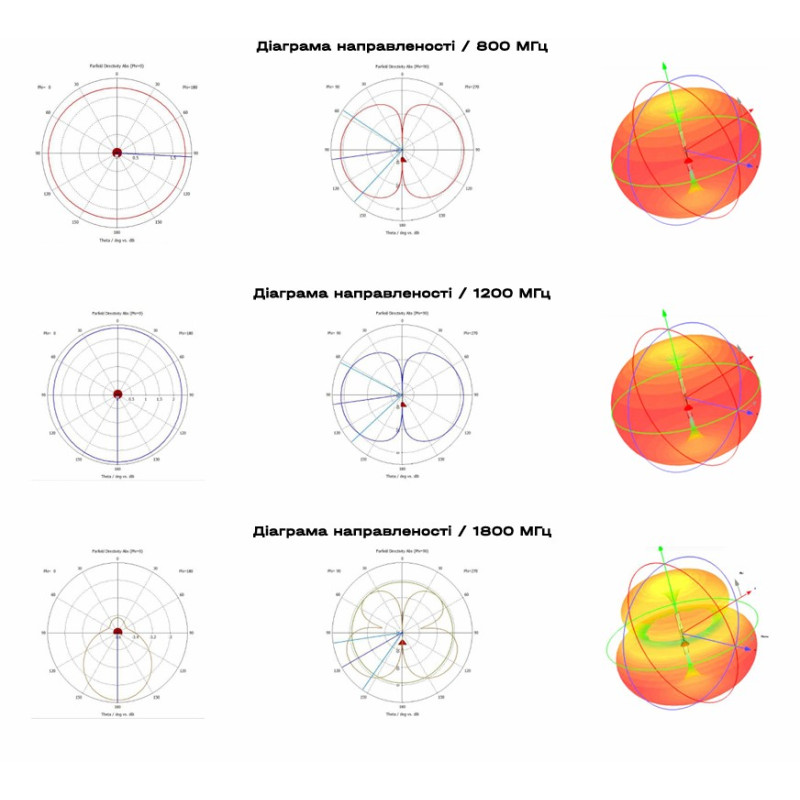

• Radiation pattern: Omnidirectional
• Polarization: Vertical/Horizontal
• Input impedance: 50 Ohm

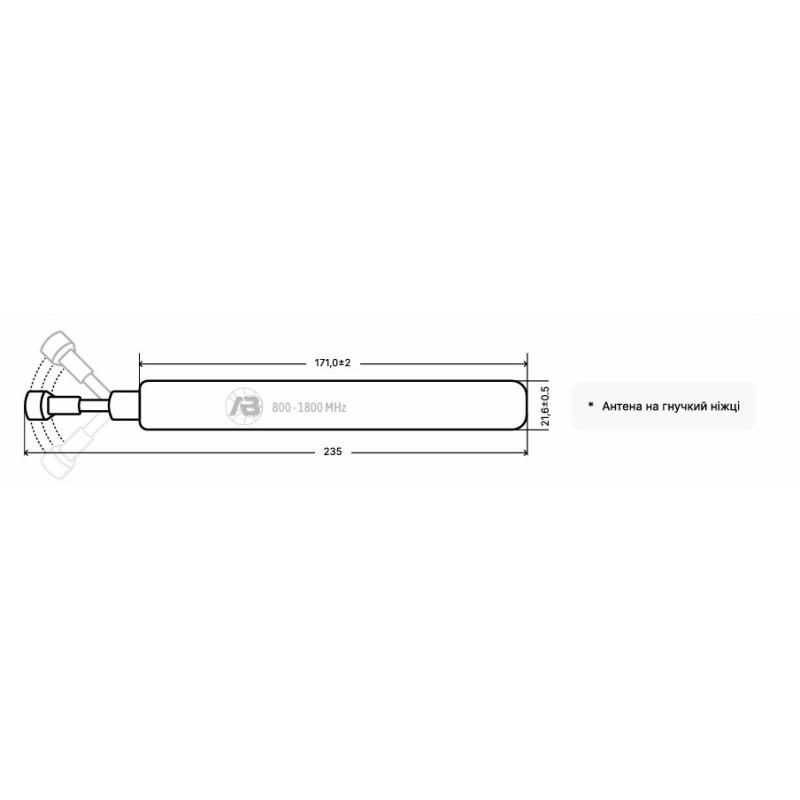

The antenna is made in a flexible-base housing, which increases its resistance to mechanical stress and facilitates mounting on various platforms. The 50 Ohm input impedance and low VSWR (< 3) ensure compatibility with most commercial and industrial transceivers. The omnidirectional radiation pattern and the possibility of vertical or horizontal polarization make the model flexible for configuration to specific system tasks.

The SMA male connector allows easy integration of the antenna with equipment used in both amateur and professional solutions. The 2 dB gain guarantees sufficient sensitivity without excessive narrow-beam focus, which is important for FPV operators and airspace monitoring systems.

This antenna is suitable for installations on drones, mobile monitoring points, stationary sensors, and portable receivers. It combines compactness, reliability, and the technical characteristics necessary for modern communication tasks.

Brand: AB-Antennas. Product category: Antennas > Dipole antennas. If you are looking for a reliable solution for operation in the 800–1800 MHz frequency range — this model will be an effective choice.
