DELFIN EW SYSTEM

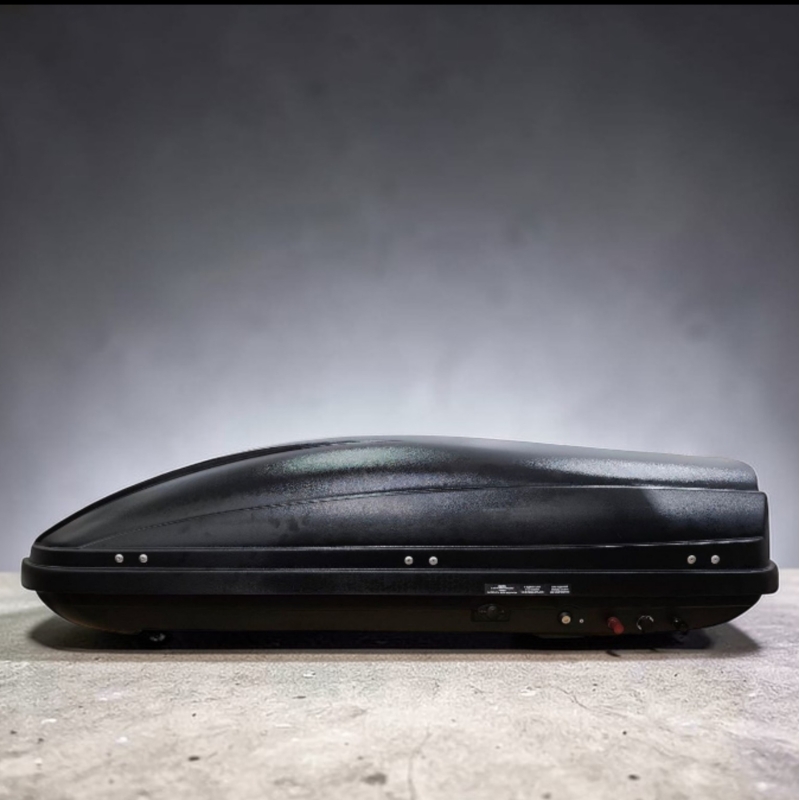

«Delfin» is a highly effective, compact EW system specifically designed for disguise as a civilian vehicle. All system components are integrated into a roof rack (case) that externally does not differ from a standard transport container.
OPERATING PRINCIPLE:

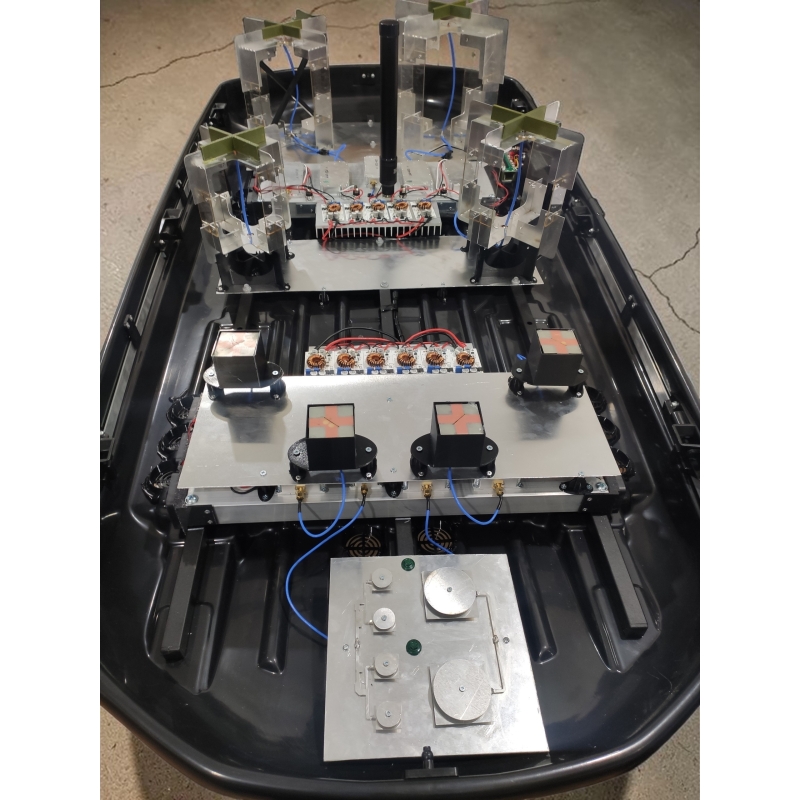

Inside the case are:
- Jamming modules (50W each),
- Omnidirectional antennas,
- Cooling system,
Thanks to minimal cable length and the absence of N-Type adapters, the signal is transmitted from the module to the antenna without loss → ensuring maximum effective jamming radiation in each band.
The system supports automatic control via the «KOZHAN» drone detector.
This means:
- Constant airwave scanning.
- Detection of control or video communication signals (e.g., FPV drone).
- Automatic activation of the corresponding frequency module.
POWER AND MOBILITY:
The system operates on a built-in 180Ah (4.5 kW) Li-Ion (NMC) battery. Fully autonomous.
Charging from 220V or a 12V car is provided, with low voltage control.
The control panel is located in the car's cabin and supports auto-detection.
ADVANTAGES OF THE «DELFIN» SYSTEM:
- Disguise as a civilian vehicleHigh efficiency due to short cables and direct antenna connection.
- Up to 16 frequency modules — adaptability to tasks.
- Support for automatic enemy detection and autonomous response without an operator.
- Modular configuration — easy to maintain, update, and scale.
1. KIT
| Control unit optional: | from 8 to 16 bands 200-6000MHz |
| Omnidirectional/directional antenna | Quadrifilar, directional |
| Wired remote with auto-detection 5m | Yes |
| Rechargeable battery (optional) | 1.5Kw 60Ah, 3Kw 120Ah, |
| Battery type | Li-Ion, Lifepo4 |
| 12V car charging cable 4.5m (Car battery discharge module. Low voltage protection) | Yes |
| 29.2V AC charger | Yes |
| Battery-EW system connection cable (PVSng-LS) 4.5m | Yes |
2. TECHNICAL SPECIFICATIONS OF THE «Hydra 2-U» EW JAMMER
| Total weight | 40kg |
| EW system dimensions | 178x85x44cm |
| Total consumption | 1200W |
| Total jamming output power | 600W |
| Operating voltage range | 24V-28V |
| Active cooling (fans) | 9pcs |
| Waterproof control buttons | Yes |
| Module temperature sensor | 12pcs |
| DC-DC voltage stabilizer | Yes |
| 50W jamming modules | 320-420MHz, 420-550MHz, 500-600 MHz, 690-1000MHz, 1500MHz, 2200-2400MHz, 2400-2550MHz, 2550-2750MHz |
3. RECHARGEABLE BATTERY
| Li-Ion (NMC) battery | 7s3p |
| Dimensions | 160x420x480 |
| Weight | 24kg |
| 220V mains charging. Full charging time for 180Ah battery | 9h (4.5h optional) |
| 12V mains charging. Full charging time for 180Ah battery | 9h (4.5h optional) |
| Battery charge indicator (with ON/OFF button) | Yes |
| 12V car battery discharge controller (charges only when engine is running) | Yes |
| Housing | Metal, IP55 |
| Optional | XT60, XT90, USB Type-c |
4. TECHNICAL SPECIFICATIONS OF THE WIRED CONTROL PANEL
| Cable type | PVSng-LS |
| Cable cross-section | 3x1 |
| Cable length | 5m |
| Power indicator light | Optional |
| Control panel connector | GX-20 3pin |
| Auto-detection. Automatic system on/off | Yes |
5. TECHNICAL SPECIFICATIONS OF ANTENNAS
| Antenna type | Omnidirectional (dome type) |
| Cable type | RG402/RG405 |
| Connector type | SMA |
| Jamming range | 100-200m (at 1.5-2.5km 1W) 200-300m (at 3-4km 1W) |
*The configuration and number of bands may vary, and consequently, the price also changes. Also, the detection function works in conjunction with the Kozhan detector, so in the maximum configuration, we offer Kozhan and the EW system as a kit.
