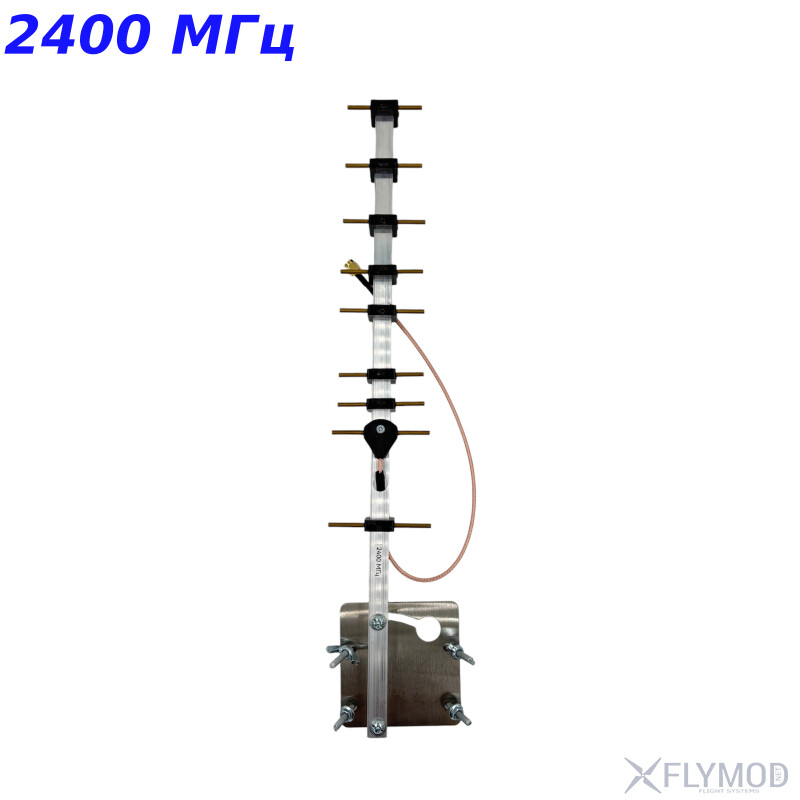

The Yagi directional antenna is designed to operate at 2200/2400/2600MHz frequencies and provides 13.4dBi gain, which increases signal transmission efficiency. A beam angle of 35° ensures signal concentration in the desired direction for optimal performance. An input impedance of 50Ω and a standing wave ratio (SWR) of 1.15 minimize power loss, ensuring system stability and performance. Suitable for ground-based radio stations, it can be mounted on a tripod or mast. Indispensable for use in repeaters.

Specifications

• Frequency: 2200/2400/2600MHz
• Polarization: linear
• Gain: 13.4dBi
• Beam angle: 35°
• Input impedance: 50Ω
• SWR: 1.15
• Number of directors: 7
• Connection cable length:
  • 2200MHz - 330mm
  • 2400MHz - 290mm
  • 2600MHz - 320mm
• Connector: SMA
• Material: aluminum
• Dimensions:
  • 2200MHz - 410x67x23mm
  • 2400MHz - 400x68x23mm
  • 2600MHz - 370x60x23mm
• Weight:
  • 2200MHz - 180g
  • 2400MHz - 175g
  • 2600MHz - 169g

Package Contents

• 1 x Yagi directional antenna
