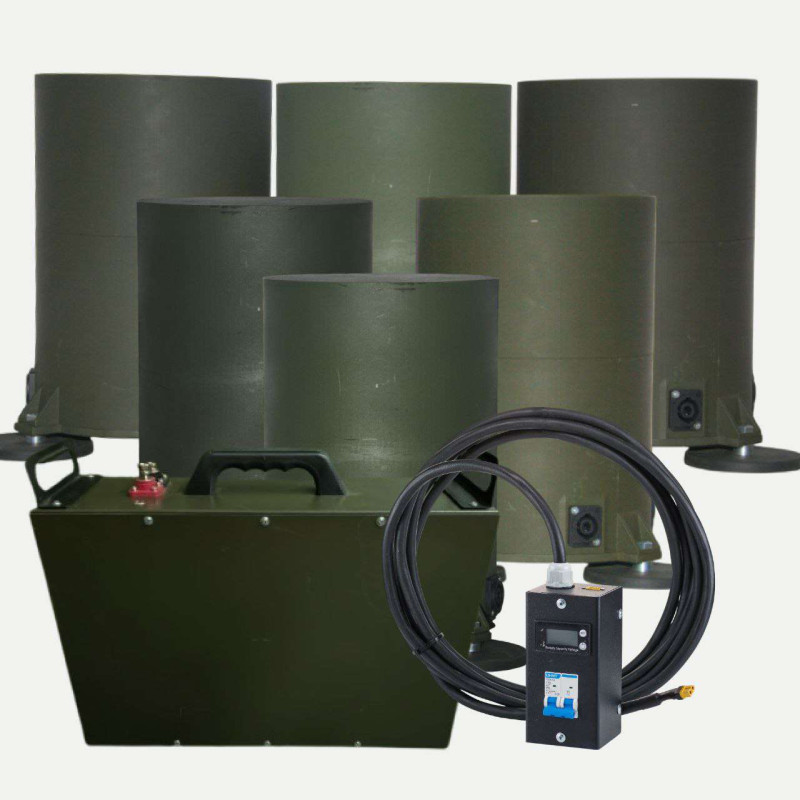

SKLADBORG Grak Tech EW System — Modular Electronic Warfare System

The SKLADBORG Grak Tech EW system is a modular electronic warfare system designed to protect equipment and stationary objects. The system is built on quadrifilar antennas with a separate battery, ensuring autonomy and flexibility of use. The modular design allows for selecting necessary frequencies and easily expanding the system in the future according to changing operational requirements.

Manufacturer: Grak Tech
Product Category: EW Jammers > Trench EW Jammers

Key Features:

• Operates in 18 frequency bands: 150-2700 MHz, 3.0-3.4 GHz, 4.9-5.8 GHz.
• Power: 50 W per channel.
• Power supply: operates from a 12V-28V DC source.
• Rapid deployment: the system can be ready for operation in 15 minutes thanks to quick-change mounts and magnetic holders.

Key Advantages:

• Reliable support and the ability to quickly add new frequencies as needed, extending the system's lifecycle.
• Flexible customization to client needs: choice of frequencies, antenna formats, and installation options on vehicles or stationary supports.
• Increased effectiveness in combating unmanned aerial vehicles: quadrifilar antennas allow for jamming drones at greater distances and provide stable target tracking.

The SKLADBORG Grak Tech solution is suitable for military units, rapid response forces, and critical infrastructure protection, where mobility, rapid deployment, and scalability are important. The modular architecture allows for integrating the system onto both transport platforms and stationary fortifications, providing comprehensive protection of the radio frequency spectrum.

Pricing

Cost:

• Cost of one module in the 120-2700 MHz / 3.0 - 3.4 GHz range — 25,000 UAH.
• Cost of one module 700-1000 MHz and 4.9 - 5.8 GHz — 40,000 UAH.
• Control button — 5,000 UAH.
• Battery cost — 40,000 UAH.

If you need an individual configuration or assistance in selecting modules for specific tasks, Grak Tech specialists will help optimize the system according to technical requirements and operating conditions. Modularity, rapid deployment, and power make SKLADBORG Grak Tech an effective solution for modern electronic warfare tasks.
