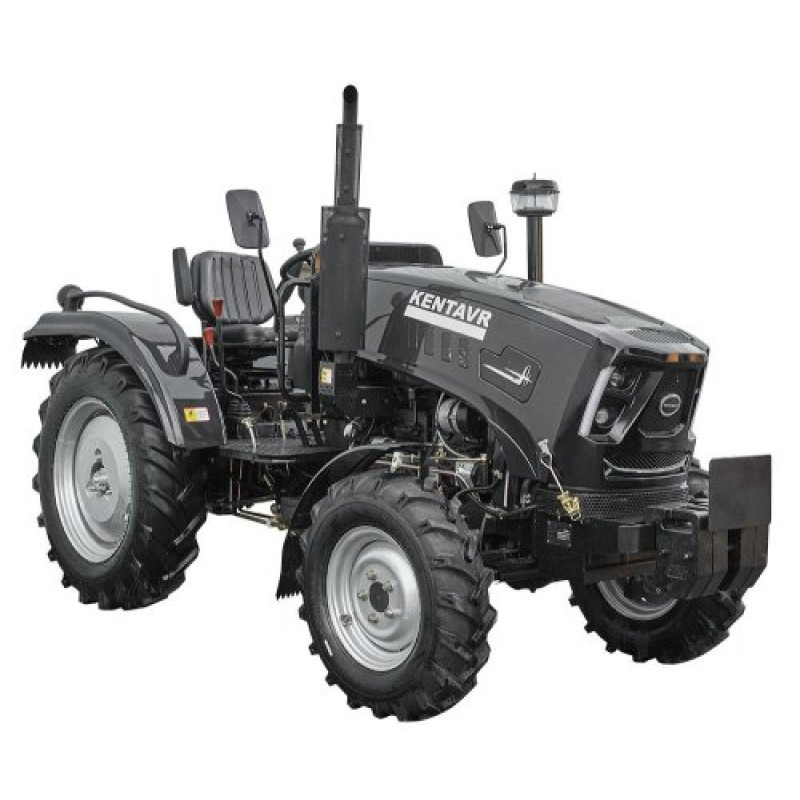

Mini Tractor KENTAVR 504 SD
Brand: KENTAVR. Product Type: Tractors > Mini Tractors.
The KENTAVR 504 SD mini tractor is a powerful, versatile unit for agricultural, municipal, and general utility work. This model is equipped with a modern 4-stroke, 4-cylinder JDM490T3 engine, combining high power and fuel efficiency, making it an ideal choice for plowing, cultivation, sowing, harvesting, cargo transportation, and working with attachments.
Technical Specifications:
| Engine Type: | 4-stroke, 4-cylinder, JDM490T3 |
| Power, kW: | 36.8 |
| Power, hp: | 50 |
| Cooling: | water-cooled |
| Fuel Tank Capacity, L: | 35 |
| Engine RPM, rpm: | 2300 |
| Engine Start: | electric starter |
| Crankcase Oil Volume, L: | 6 |
| Cooling System Volume, L: | 5 |
| Bore and Stroke, mm: | 90/100 |
| Oil Consumption, g/kWh: | 2.04 |
| Fuel Delivery: | direct injection |
| Oil Pump: | plunger, in-line |
| Transmission: | (4+1)x2 |
| Clutch Type: | dry, dual-disc |
| Ground Clearance, mm: | 300 |
| Differential Lock: | yes |
| Brake System: | drum brakes |
| Front Wheel Track, cm: | 1240-1440 |
| Rear Wheel Track, cm: | 1230-1550 |
| Turning Radius, m: | 4.45 |
| Wheel Formula: | 4x4 (all-wheel drive) |
| Front Tires: | 7.5-16 |
| Rear Tires: | 11.2-24 |
| Overall Dimensions L/W/H, mm: | 3550/1600/2100 |
| Steering: | with power steering |
| PTO Shaft Speed: | 540/720 |
| Maximum Lifting Capacity of Hitch Mechanism, kg: | 550 |
| Wheelbase, mm: | 1840 |
| Weight, kg: | 1750 |
The KENTAVR 504 SD is equipped with an efficient water-cooling system and a large 35 L fuel tank, ensuring long operating hours without frequent refueling. The JDM490T3 engine with direct injection guarantees uniform fuel delivery, and the plunger in-line oil pump provides reliable lubrication; oil consumption is 2.04 g/kWh, indicating economical operation.
The transmission with (4+1)x2 gearbox combined with a dry dual-disc clutch ensures smooth and durable power transfer. The model features 4x4 all-wheel drive, a differential lock for working in difficult conditions, and drum brakes for reliable stopping. A ground clearance of 300 mm, a compact turning radius of 4.45 m, and dimensions of 3550×1600×2100 mm make the tractor maneuverable in fields and narrow spaces.
Practical parameters include front tires 7.5-16 and rear tires 11.2-24, power steering for ease of operation, a PTO shaft with speeds of 540/720 rpm, and a hitch mechanism with a maximum lifting capacity of 550 kg. A wheelbase of 1840 mm and a weight of 1750 kg ensure stability and reliability when working with various mounted and towed equipment.
Who it's for
The KENTAVR 504 SD is ideally suited for medium-sized farms, private households, and municipal services that require a versatile and productive unit. Thanks to its 50 hp (36.8 kW) power, well-designed engine, and reliable transmission, the tractor handles a wide range of tasks: plowing, cultivation, sowing, harvesting, and transportation.
By purchasing the KENTAVR 504 SD mini tractor, you get a combination of power, efficiency, and functionality: a JDM490T3 engine, water cooling, electric starter, a large 35 L fuel tank, efficient fuel delivery, and stable lubrication. The reliable gearbox, 4x4 all-wheel drive, differential lock, power steering, and the ability to work with attachments up to 550 kg make this model a versatile assistant on the farm.
