TIGER B-200CC Automatic Quad Bike
Brand: TIGER. The TIGER B - 200CC Automatic model is an affordable and reliable quad bike that has gained popularity among children and adult outdoor enthusiasts in Ukraine. Recommended for adult beginners and teenagers aged 14 and over. Available body colors: black, blue, and red. Currently in stock: blue; other colors are available for special order.
Design and Engine
Engine: single-cylinder four-stroke engine with 11 hp and air cooling system, displacement — 200 cm3. The fuel system is carbureted and economical: fuel consumption is about 2.5-3.5 l/100 km. The fuel tank capacity is 5 l, so the range with the stated consumption is approximately 130–200 km. In operating conditions, the model demonstrates stable performance on rough terrain, develops a comfortable speed of 40–50 km/h on hilly terrain, and a maximum speed of up to 80 km/h.
Chassis, Suspension, and Driving Performance
Driving Performance: the design uses budget-friendly yet well-thought-out solutions that maintain an acceptable cost with sufficient performance. The estimated warranty resource of the chassis is 1000–3000 km of mileage. The final drive is chain-driven, with 4x2 rear-wheel drive. The rear axle is protected from below by a steel tubular plate. Suspension: independent with double A-arms; front — dependent swingarm design. Gas-oil shock absorption is installed front and rear.
Brakes, Controls, and Electronics

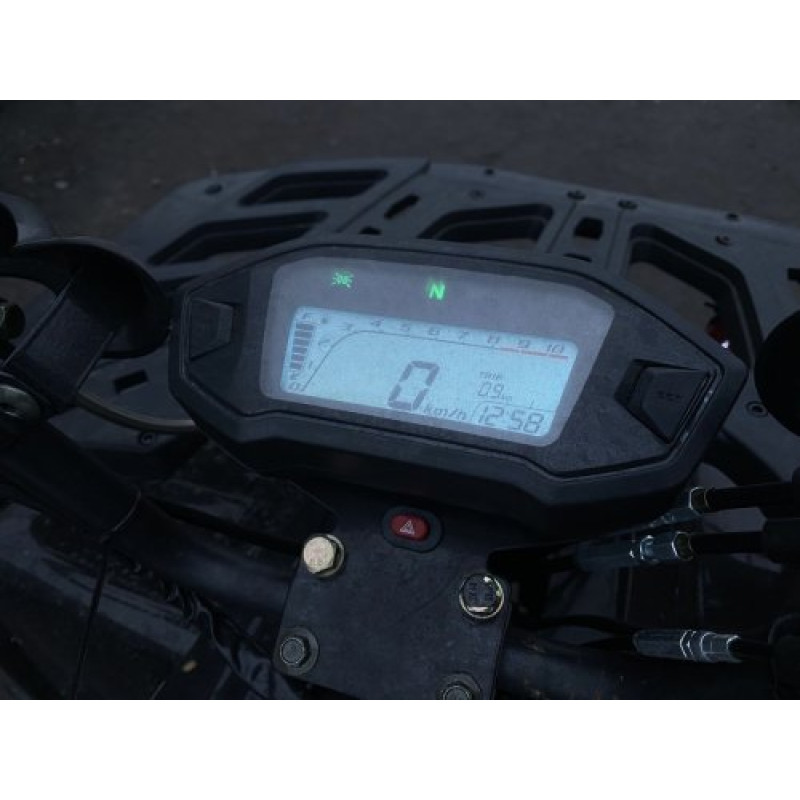

Braking System: disc brakes, with ventilated discs front and rear, ensure effective braking. Please note the discrepancy in specifications regarding wheel size: the description mentions 23x7-10 / 22x10-10 tires, while the technical table indicates 21x7-10 / 22x10-10 — please consider this difference when confirming your order. Controls and Electronics: electric starter for cold starts, switches for lights, brake lights, and turn signals, throttle lever, front and rear brake levers. On the right is the continuously variable transmission (CVT) with F-N-R positions. An informative display shows speed, mileage, gear type, fuel level, and other parameters.
Comfort and Dimensions
Comfort is provided by a soft seat, cargo tie-down pads, and a cigarette lighter. The quad bike's weight is 175 kg. Dimensions (LxWxH): 1800x1100x1300 mm. The TIGER B - 200CC Automatic quad bike is ideal for rides on flat terrain, picnics, light competitions, and trips on easy mountainous terrain.
Technical Specifications
| Engine displacement, cm3 | 200 |
| Engine type | 4-stroke, 1-cylinder |
| Drive | 4x2 |
| Cooling system | air |
| Maximum speed, km/h | 80 |
| Engine power, hp | 11 |
| Front / rear wheels | 21x7-10/22x10-10 (in table); also mentioned 23x7-10/22x10-10 in description |
| Front / rear brakes | disc / disc |
| Final drive | chain |
| Weight, kg | 175 |
| Dimensions, LxWxH mm | 1800x1100x1300 |
| Tank volume, l | 5 |
We offer delivery across Ukraine. All forms of payment are possible, including cash on delivery and credit purchases. Courier delivery usually takes place the next day. We work seven days a week. Product Category: Motor Vehicles > Quad Bikes.
