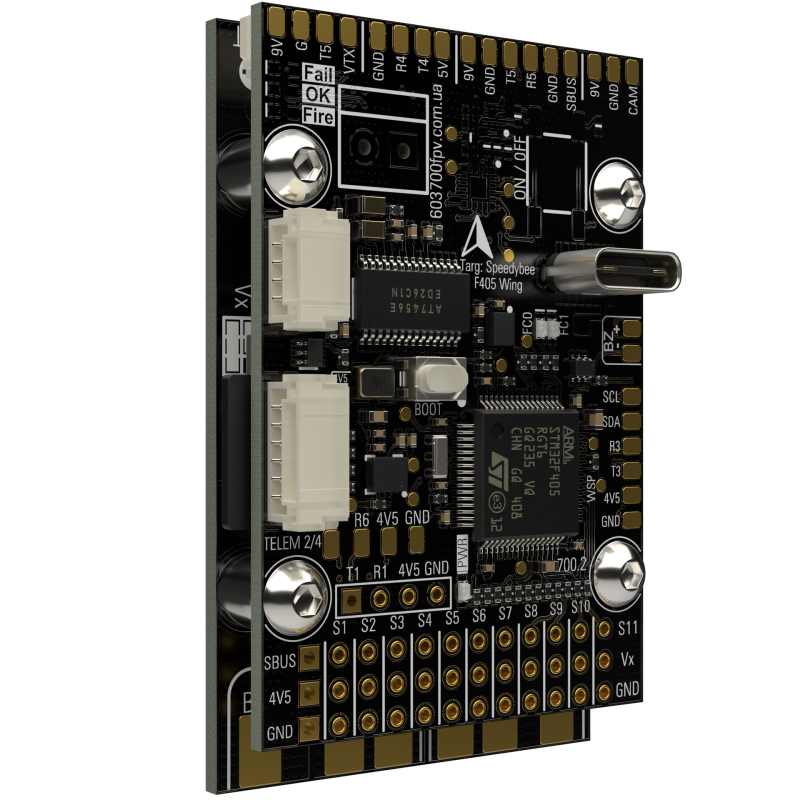

Flight Controller for Fixed-Wing «Boryspil v1»

Introducing a professional fixed-wing flight controller from the 603700 FPV brand — the Boryspil v1 model, designed for reliable operation in serial and industrial applications. This compact and functional board features a powerful microcontroller and modern sensors, compatible with popular INAV and ArduPilot firmwares, and has the SpeedyBeeF405WING target.

Key Features

• Microcontroller (MCU): STM32F405RGT6 (168 MHz).
• Gyroscope/Accelerometer: ICM42688P with up to 8 kHz frequency support.
• Barometer: DPS310 for accurate altimeter information.
• Firmware: INAV, ArduPilot (SpeedyBeeF405WING support).
• On-board FC USB: interface located on the front of the board for convenient connection and configuration without additional modules.
• Buzzer: pads are provided on the board, the buzzer itself is included in the kit — you decide whether to connect it or not.

Design and Mounting Advantages

Easy Assembly: the board eliminates small screws and uses standoffs/spacers soldered directly to the board, speeding up mounting and saving time during mass assembly.

Flexible Power Supply: the board features high-quality BEC units with voltage selection for VTX/CAM and servos, ensuring versatility in various configurations.

Two Battery Connection Contacts: the contact placement allows connecting the battery from either side — convenient to use regardless of battery placement.

Servo1 Duplication on PDB: when using a single motor, signal contacts (S1, GND) can be connected directly to the PDB board along with motor power to simplify wiring.

Technical Specifications

• Blackbox: MicroSD connector.
• Interfaces: 6 × UART, I2C, SBus with built-in inverter on RX2, buzzer output.
• ESC Outputs: 2 pcs.
• Servo Outputs: 11 pcs.
• BEC 1 (FC): 5V 3A.
• BEC 2 (VTX, «9V» line): 9V/12V 3A.
• BEC 3 (Servo, «Vx» line): 5V/6V/7.2V 5A.
• Power Supply: 3-6S LiIon/LiPo.
• Dimensions: 56×36×28 mm.

The «Boryspil v1» flight controller combines compactness, a wide range of interfaces, and well-thought-out hardware solutions for quick mounting and configuration. It is suitable for individual enthusiasts and industrial projects where reliability, assembly speed, and flexible power settings for video transmission and servos are crucial.

Please note: cables for peripheral connection are not included. If you need a ready-made cable set, the Cable kit v1 is available separately, which will complement the board for quick connection of sensors, servos, and VTX.

Additional details: the board includes an external buzzer, a built-in MicroSD connector for Blackbox, six UART ports, I2C and SBus support, and the ability to duplicate Servo1 on the PDB to simplify single motor connection.

Brand: 603700 FPV. Purpose: component category — Stacks (FC+ESC), compatible with SpeedyBeeF405WING target in INAV and ArduPilot.
