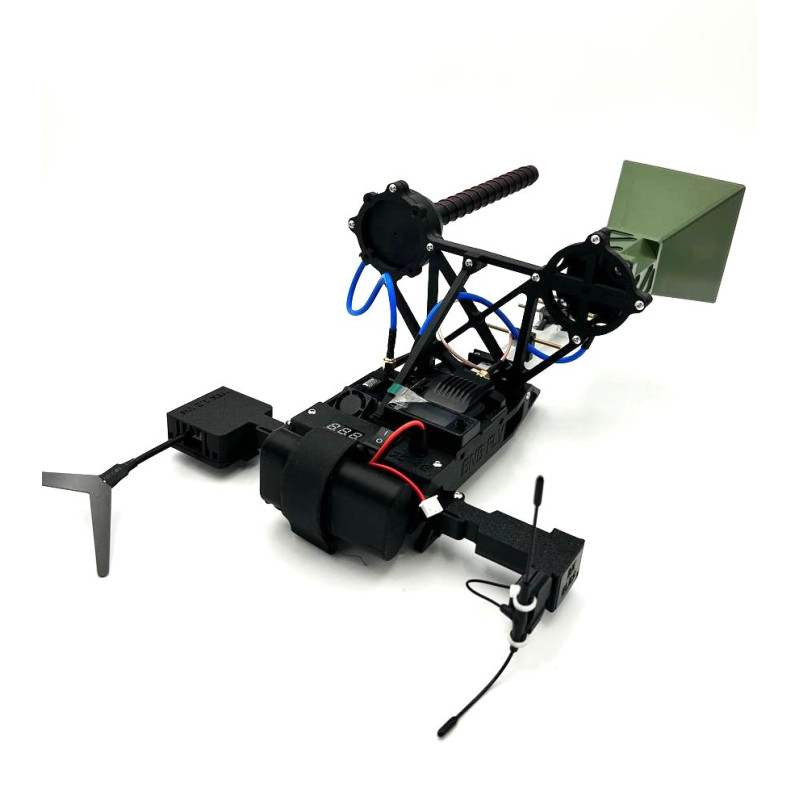

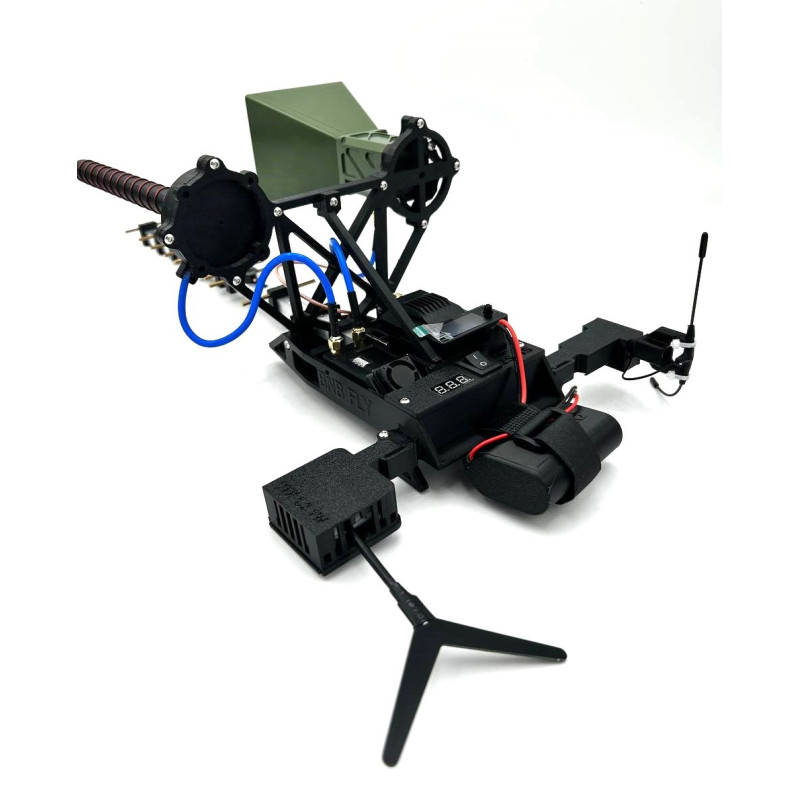

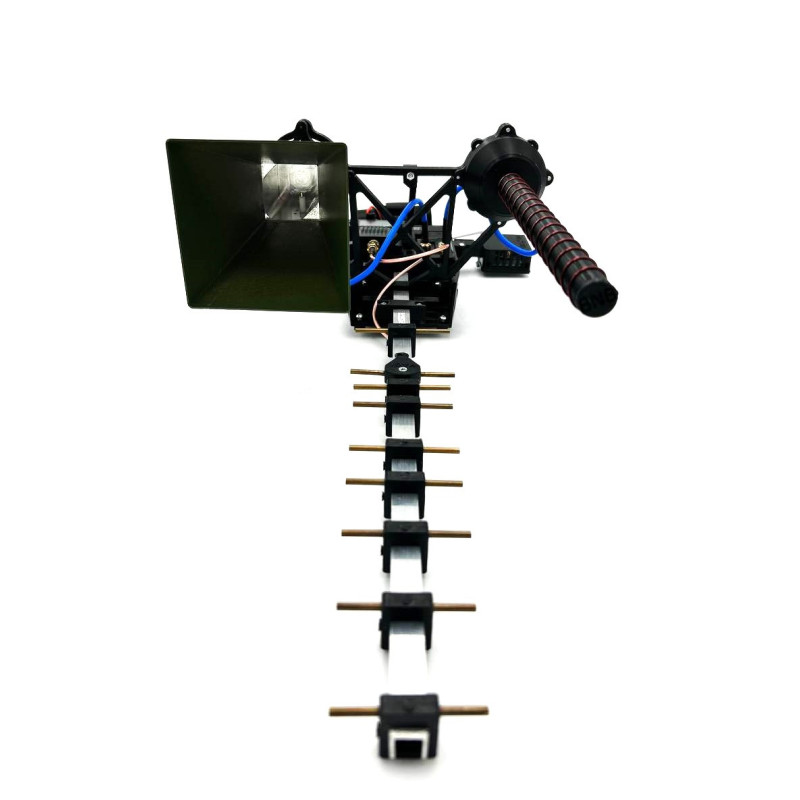

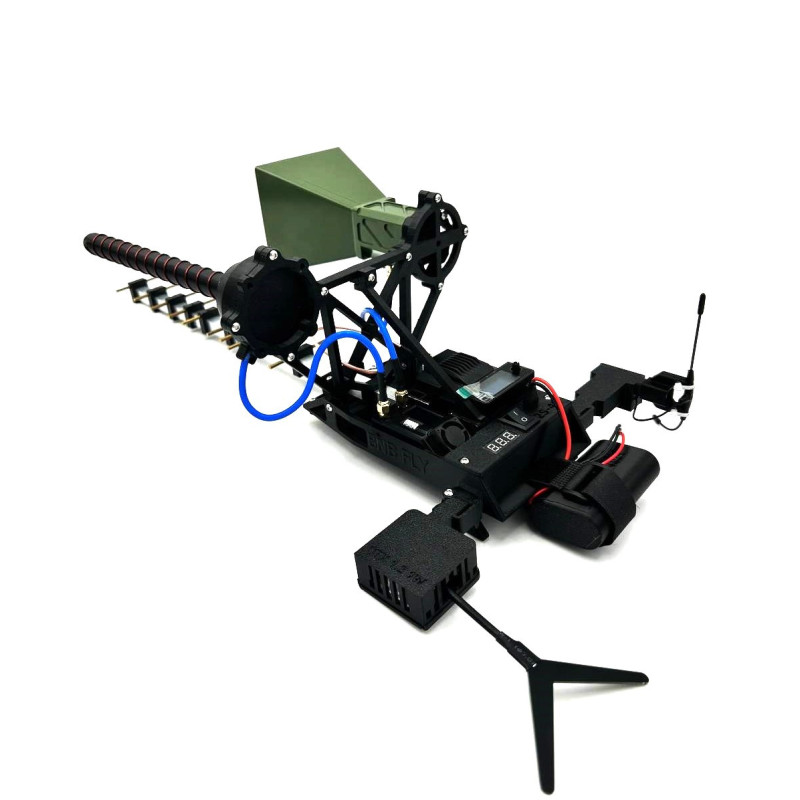

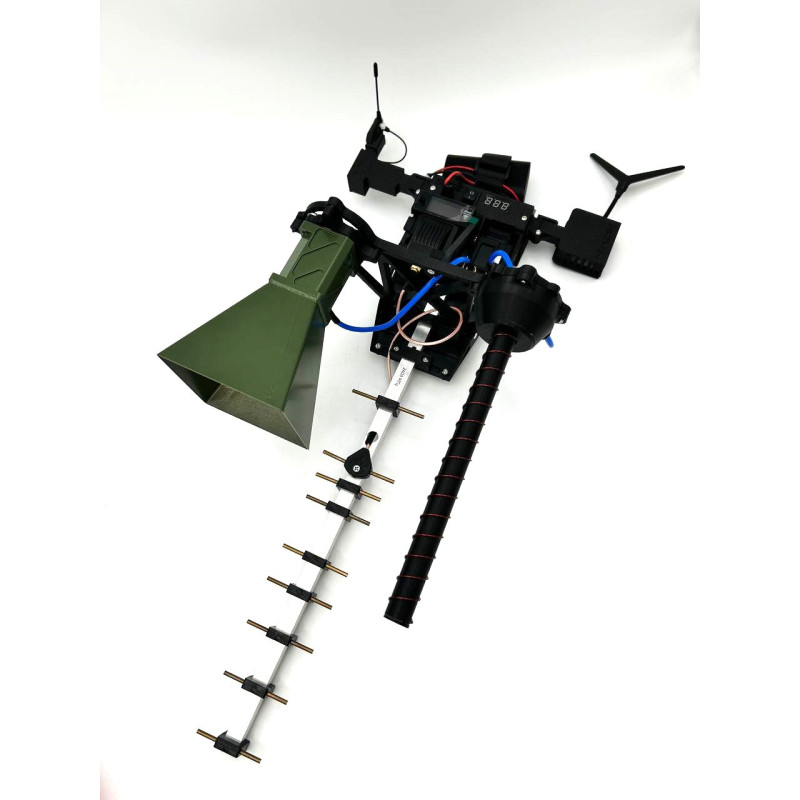

Repeater for carrier drone EYE LINK by SkyReach
EYE LINK — a powerful wireless repeater designed for integration with professional DJI Matrice 30 and DJI Matrice 300 platforms. The device ensures reliable control and video signal transmission over long distances, combining compatibility with modern TX modules and high-frequency video channels. The repeater mounts to standard DJI brackets using 4 included screws and is powered by a 2S 21700 battery, providing up to 2 hours of continuous operation on a single charge.
EYE LINK supports a control system in the 433 MHz - 2.8 GHz range with compatibility for ELRS and TBS Crossfire modules. For video signal reception, the 4.8 - 6 GHz frequency range is used, and for video transmission to the operator, the repeater generates an output signal at 1200 - 1280 MHz. The antenna configuration includes a choice of control antenna in the 433 MHz - 2.8 GHz range with an SMA connector, as well as a complete set of video antennas: a 4.8-5.9 GHz horn antenna with a gain of 14 dBi (SMA) and a 16 dBi Helix antenna for remote video signal reception.
Key advantages of EYE LINK:
- Support for popular ELRS and TBS Crossfire control protocols for stable communication;
- High-frequency video channel 4.8–6 GHz for transmitting quality video from the drone;
- Output video signal to the operator at 1200–1280 MHz for compatibility with ground receivers;
- Powered by a 2S 21700 battery with up to 2 hours of autonomy;
- Simple mounting on standard DJI brackets using four screws (included).
| Compatibility | DJI Matrice 30, DJI Matrice 300 |
| Operating time | up to 2 hours on a single charge |
| TX module support | ELRS, TBS Crossfire |
| Control range | 433-2800 MHz |
| Control antenna | Choice in the 433 MHz - 2.8 GHz range (SMA connector) |
| Video reception antennas | Horn 4.8-5.9 GHz, 14 dBi SMA; Helix 16 dBi |
| Video signal range (reception) | 4.8 - 6 GHz |
| Video signal transmission frequency to operator | 1200 - 1280 MHz |
| Power elements | 2S 21700 battery (1 pc.) |
| Mounting | 4 screws (included) |
| Package contents | Repeater with all necessary modules and antennas, battery - 1 pc, mounting adapter - 1 pc. |
This SkyReach repeater is designed for professional applications requiring reliable video transmission and control over significant distances: infrastructure inspections, search and rescue operations, territory monitoring, and other tasks where communication stability is critical. Easy integration with DJI Matrice 30 and Matrice 300 makes EYE LINK an ideal choice for operators looking to expand their platforms' capabilities without complex modifications.
Other features and included components ensure quick mounting and readiness for operation immediately after installation. If you need a reliable repeater to extend control range and improve video transmission quality from a drone — EYE LINK by SkyReach will be an effective solution.
