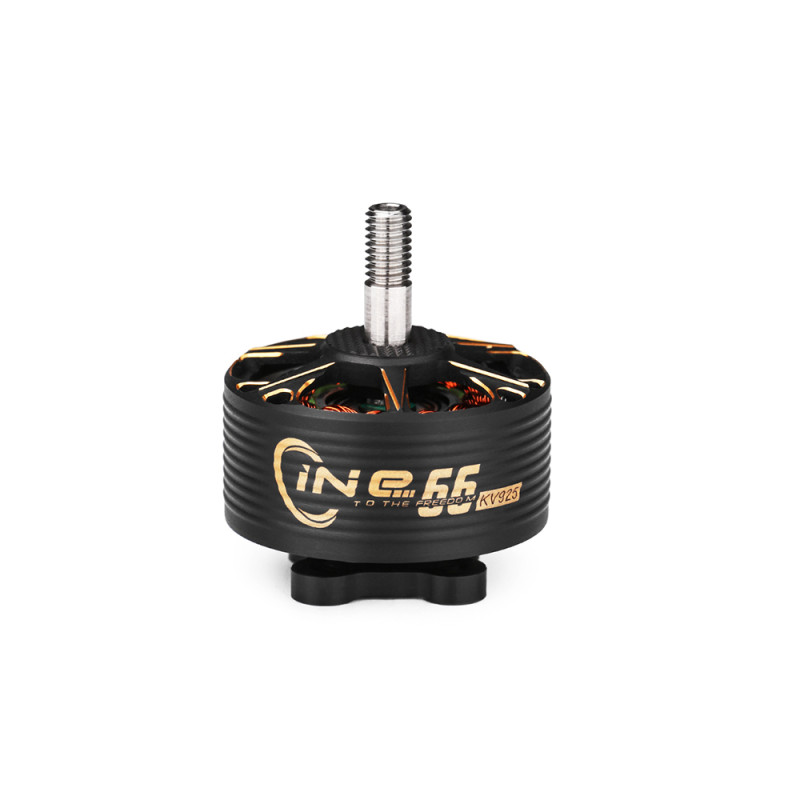

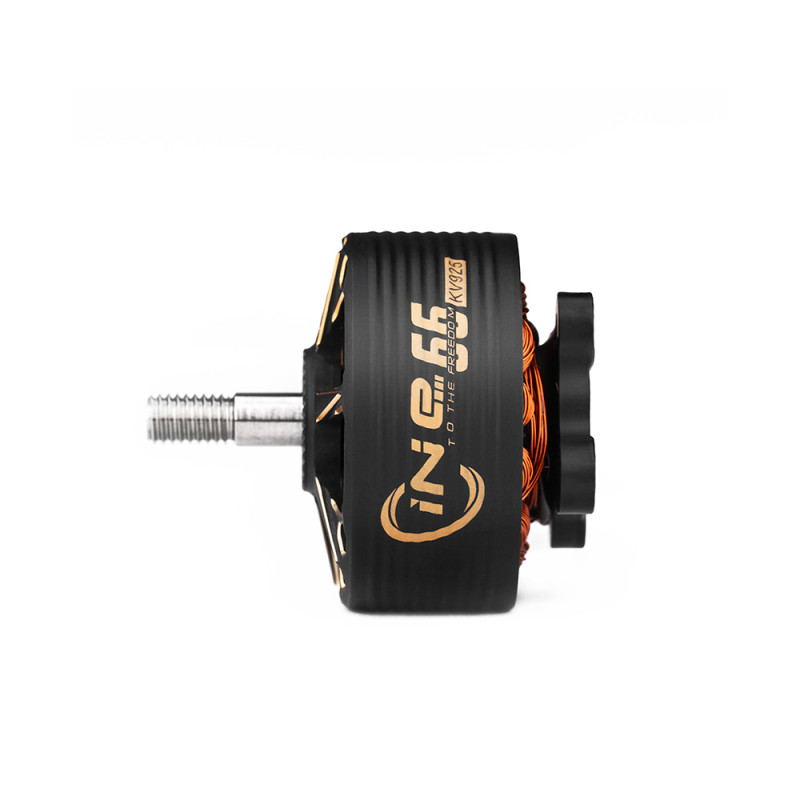

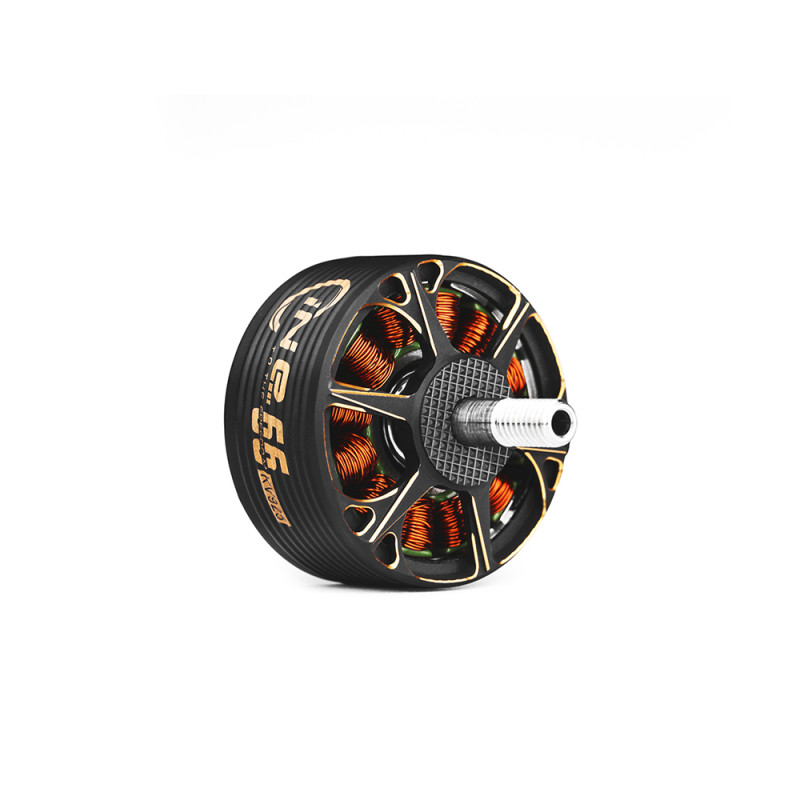

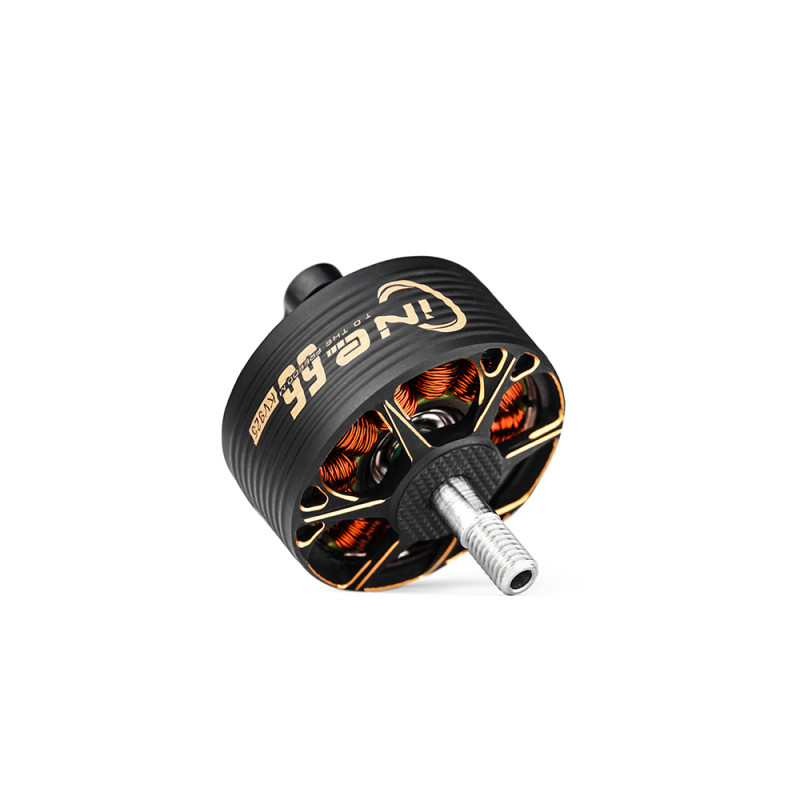

Motor T-Motor CINE66

Brand: T-Motor. Category: Drones & Quadcopters > Drone Accessories. This compact and high-performance T-Motor CINE66 motor is designed for professional aerial photography and cinematography tasks where stability, precision, and reliability during flight are key requirements.

Key technical specifications and features of the CINE66 model are presented below. Its unique design and materials ensure efficient heat dissipation and a long service life even under intensive use.

• 1. Motor Type: Brushless Motor.
• 2. KV Rating (RPM/V):
  • KV1155: approximately 1155 revolutions per minute per volt – an option for higher speed and maneuverability.
  • KV925: approximately 925 revolutions per minute per volt – a choice for stability and precise control in aerial photography.
• 3. Stator Size: 22 mm stator diameter, providing an optimal balance between thrust and weight.
• 4. Weight: approximately 24 grams, making the motor lightweight and suitable for camera platforms and stabilized gimbals.
• 5. Number of Stator Poles: 12 poles for improved precision and smooth rotation.
• 6. Housing Material: high-quality aluminum for reliability and rapid heat dissipation.
• 7. Bearings: high-quality bearings are used to reduce friction and extend the motor's service life.
• 8. Operating Voltage: designed for 3S–4S (11.1V – 14.8V), allowing flexible battery selection for the task.
• 9. Mounting Thread: standard M3 thread for propeller attachment and compatibility with most adapters.
• 10. Application: ideal for drones intended for aerial photography and cinematography, where frame stability, low vibration levels, and precise camera positioning are crucial.

When choosing between KV1155 and KV925 versions, consider your project's needs: KV1155 is better suited for fast, agile platforms, while KV925 is for stable, smooth operation of gimbals and cameras. The T-Motor CINE66 motor combines compact size, low weight, and high-quality materials, making it an excellent solution for aerial videography professionals.

Detailed specifications: stator diameter 22 mm; weight ≈ 24 g; 12 poles; aluminum housing; high-quality bearings; operating voltage 11.1V–14.8V (3S–4S); M3 mounting thread. The T-Motor brand guarantees stable operation and quality production control.

By choosing the T-Motor CINE66, you get a motor that combines performance and reliability for demanding aerial photography and cinematography tasks.
