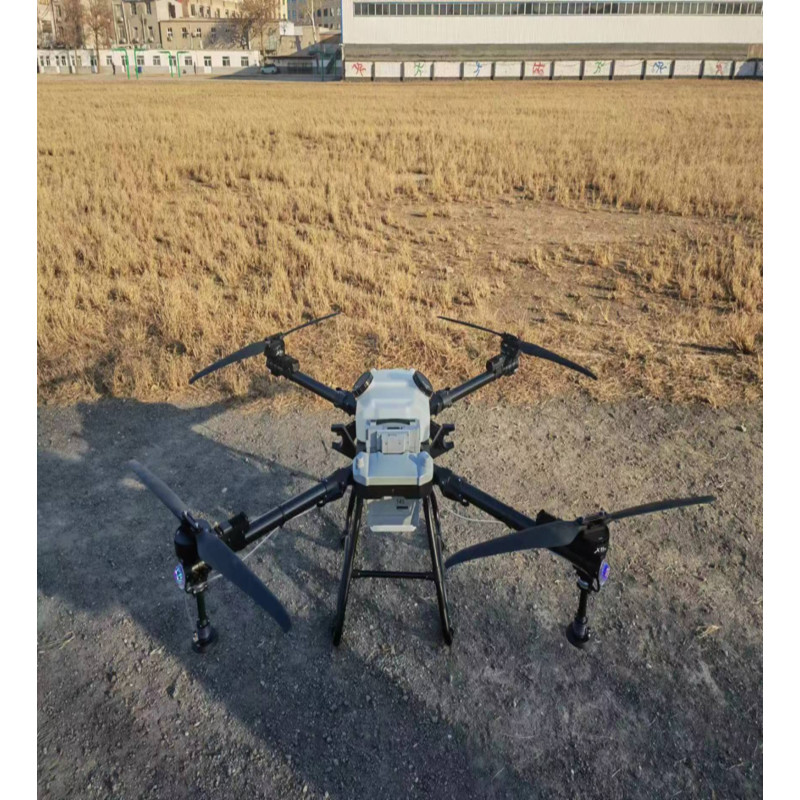

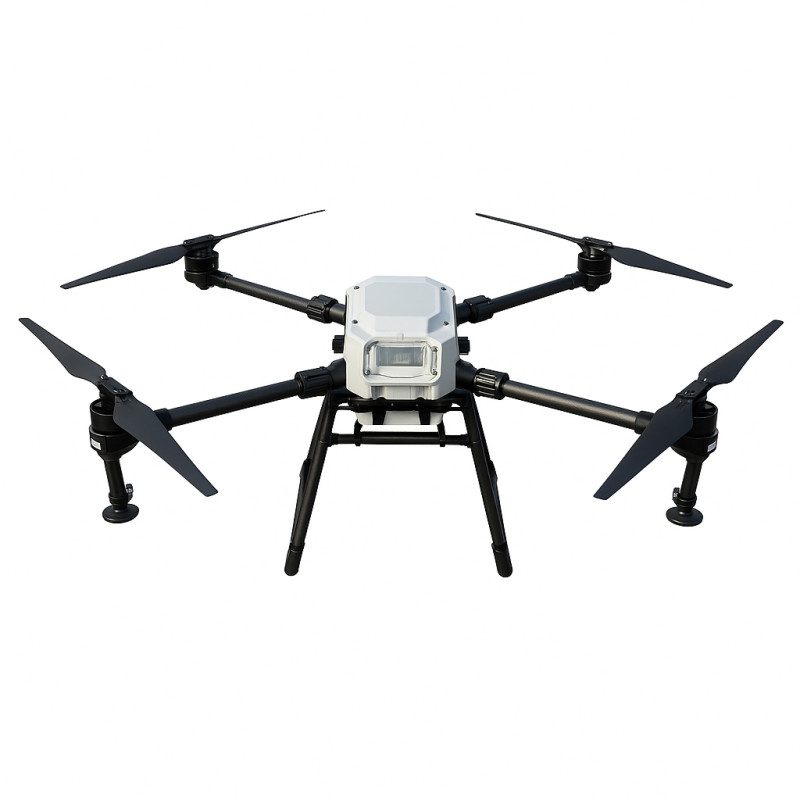

FPVXSF JK4-30 30L Plant Protection UAV from FPVXSF — a professional plant protection platform with a 30L tank, designed for intensive and autonomous field treatment. This model combines a durable aviation carbon body and an all-aluminum frame for enhanced flight stability and durability. Delivery time: 15 to 30 days.

Product Features:

• Fully autonomous operation — the drone can perform missions without constant manual control.
• Autonomous route planning with AB point memory and breakpoint memory.
• Night flight function ensures operation in low visibility conditions.
• 40mm thick carbon arm for increased strength and stability.
• Enhanced fall resistance and damage protection; the body is fully waterproof.
• Payload — 60 lbs, maximum takeoff weight — 61.7 kg.
• Foldable design for convenient transport and compact folded dimensions: 950×920×700 mm.
• Main spraying width — 5 m, maximum — 7 m.
• Modular design for quick maintenance and easy access to components.
• Battery: high-voltage 14S28000 mAh version.
• Spraying system: 2 super aerosol nozzles or 4 high-pressure nozzles, 8 L/min output with excellent atomization.
• Remote control with a bright 5.5-inch screen for convenient monitoring and control.
• Brushless waterproof pump and ESC enhance system reliability.

Specifications:

• Material: aviation carbon + aluminum.
• Chassis span: 1830–1860 mm.
• Folded dimensions: 950×920×700 mm.
• Maximum takeoff weight: 68 kg (documentation also states 61.7 kg).
• Maximum load: 30 L (tank volume: 30 L).
• Drone weight: 20 kg.
• Flight height: ≤ 30 m.
• Flight radius: ≤ 5000 m.
• Flight time: 10–20 min (with full load, flight endurance is 8–10 min).
• Flight speed: 1–12 m/s.
• Motor lifespan: ≥ 100,000 hours.
• Frame lifespan: ≥ 10 years.
• Spraying width: 5–7 m.
• Propellers: foldable, 43 inches.
• Spraying output: 8 L/min.
• Spraying system: high-speed aerosol or pressure (2 super aerosol nozzles or 4 high-pressure nozzles).
• Treatment efficiency: ≤ 800 mu/day.
• Permissible wind speed: ≤ 7 levels.
• Battery: 14S28000 mAh (high-voltage version).
• Flight stability: √√√.
• Fall protection: √√√.

Flight Functions:

• Automatic point setting and automatic altitude setting.
• Automatic return, including upon signal loss or low battery.
• Automatic obstacle avoidance (optional — avoidance radar).
• Return upon signal loss and low battery.
• Route memory between AB points and resumption of spraying after interruption.
• Autonomous route planning and mission execution in fully automatic flight mode.
• Flight modes: manual, intelligent, fully automatic.
• GPS navigation, ground station, video transmission for operation monitoring.
• Options: avoidance radar, wave radar for beyond visual line of sight operation.

Package Contents:

• Main kit:
  • JK4-30 drone — 1 pc.
  • 14S28000 mAh battery — 1 pc.
  • Charger (two-way) — 1 pc.
  • Spreader — 1 pc (for an additional fee, clarify the price with the manager).
• Optional modules (for an additional fee, clarify the price with the manager):
  • Avoidance radar.
  • CANHUB.
  • Ground simulation radar.
  • Improved Pro aerosol nozzles ×2.

The FPVXSF JK4-30 agricultural drone is ideal for professional farmers and service companies requiring a reliable, fast, and autonomous solution for treating large areas. The combination of durable materials, a high-voltage battery, an efficient spraying system, and a wide range of automatic functions makes this model a versatile platform for modern farming. Product type information: Drones, EW, drone detectors, components > Drones and quadcopters > Agricultural drones.
