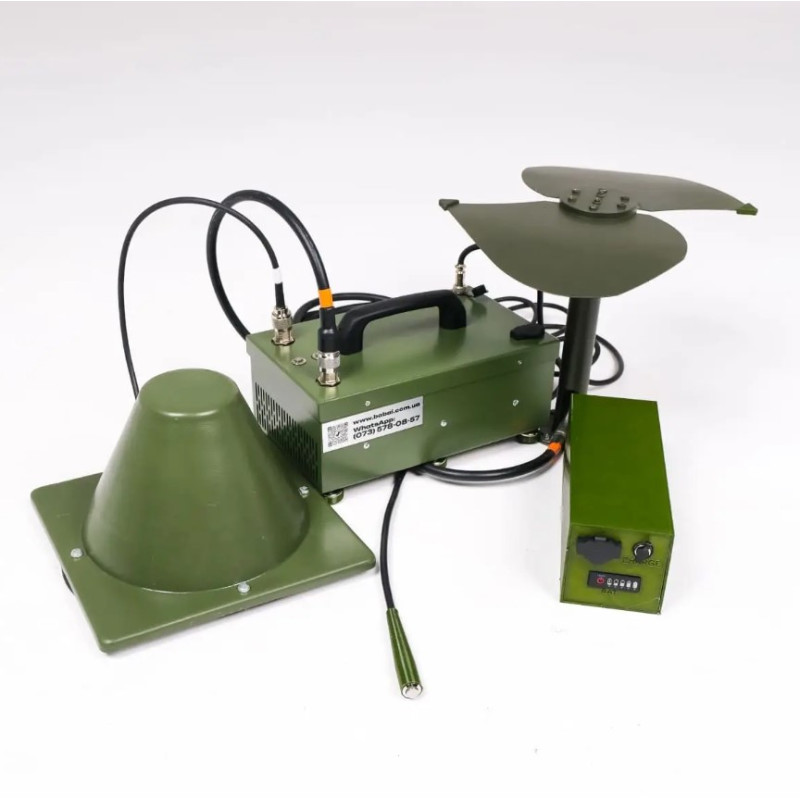

EW Jammer «Zhuk 2M» FPV — Mobile Protection Against FPV Drones from Brand Babay
The EW jammer «Zhuk 2M» FPV is a compact and powerful electronic warfare system designed specifically to neutralize FPV drones on the front line. The device features two independent jammers covering frequency ranges of 400–700 MHz (80 W) and 700–1000 MHz (110+ W) with a total power exceeding 190 W, ensuring guaranteed suppression of FPV control and video links at distances of 50 to 200 meters with 360-degree coverage.
Thanks to its compact dimensions of 24×15.5×12 cm and a weight of only 7 kg, the «Zhuk 2M» can be easily placed in a trench, dugout, or on vehicle platforms. The system is powered by a 12–24 V on-board network, an external battery, or an FPV battery. The recommended external battery has a capacity of 16.8 Ah, providing up to 60 minutes of autonomous operation; the equipment's power consumption is 270 W. A digital charge indicator is located directly on the battery, and a 5 A charger allows for quick energy replenishment.
The system is ready for operation within 3 seconds of activation, ensuring a rapid response to aerial threats. Control is available via a wired/wireless remote (range up to 1.2 m) or integration with the PES Sirko drone detector, which allows for automatic suppression activation without operator involvement. The device operates in a temperature range from -20°C to +40°C and has an IP54 protection rating, guaranteeing resistance to dust and splashes.
Advantages of the EW Jammer «Zhuk 2M»
- High efficiency: two powerful 80 W and 110+ W jammers provide a total output power of over 190 W for reliable FPV channel blocking.
- Wide frequency coverage: 400–1000 MHz covers the main control and video frequencies of FPV drones.
- Portability: 24×15.5×12 cm casing and 7 kg weight allow the device to be placed in compact fortifications.
- Automatic response: operation with the «PES Sirko» detector ensures autonomous target detection and suppression.
- Instant startup: the system reaches operational mode within 3 seconds of activation.
- Reliable power: capable of operating from 12–24 V, an external battery, or an FPV battery with overheat protection.
- Warranty until the end of martial law in Ukraine: free repair, excluding cases of flooding, complete destruction, or shrapnel damage.
Frequency Range, Antenna Type, and Power

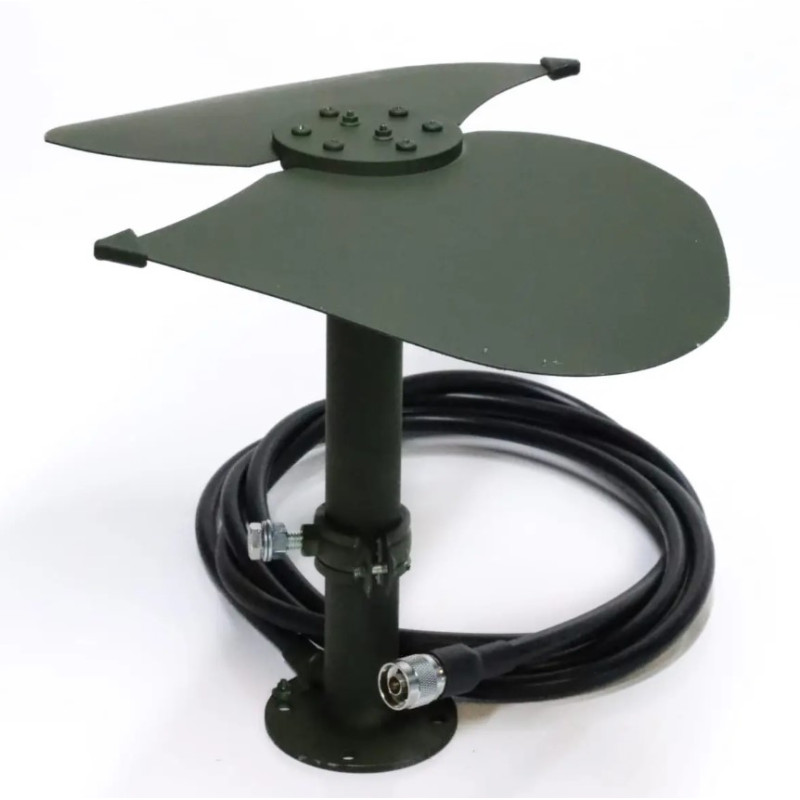

- 1. 400-700 MHz — 80 W — screw (modified dipole)

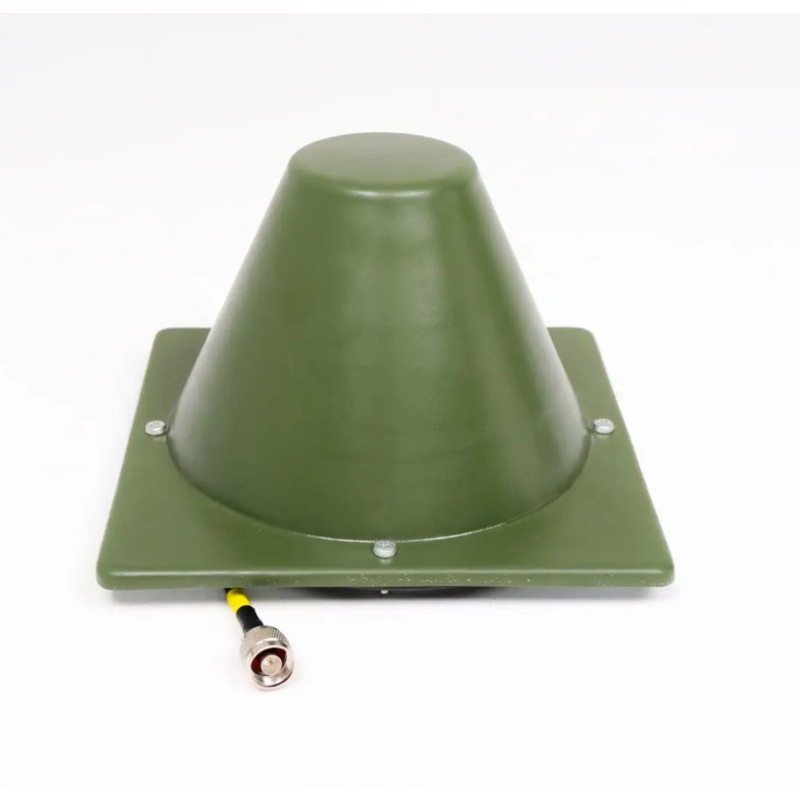

- 2. 700-1000 MHz — 110+ W — mushroom
Other ranges and antenna types can be ordered according to operator needs.
Technical Specifications
| Parameter Name | Value |
|---|---|
| Total Power | 190+ W |
| Power Supply | 12–24 V or external battery, or FPV battery |
| Number of Antennas (Channels) | 2 |
| Casing Size (Dimensions) | 24×15.5×12 cm |
| Weight | 7 kg |
| Suppression Range | 50–200 m |
| System Coverage Radius | 360 degrees |
| Autonomy | 60 min |
| External Battery Capacity | 16.8 Ah |
| Readiness Time | 3 seconds after power-on |
| EW System Control | via remote (up to 1.2 meters), or using the PES system |
| Operating Temperature Range | -20°C – +40°C |
| Power Consumption | 270 W |
| Protection Rating | IP54 |
| Charger Power | 5 A |
| Voice Notification of Operation | No |
| Digital Battery Charge Indicator Display | Yes, on the battery itself |
Package Contents

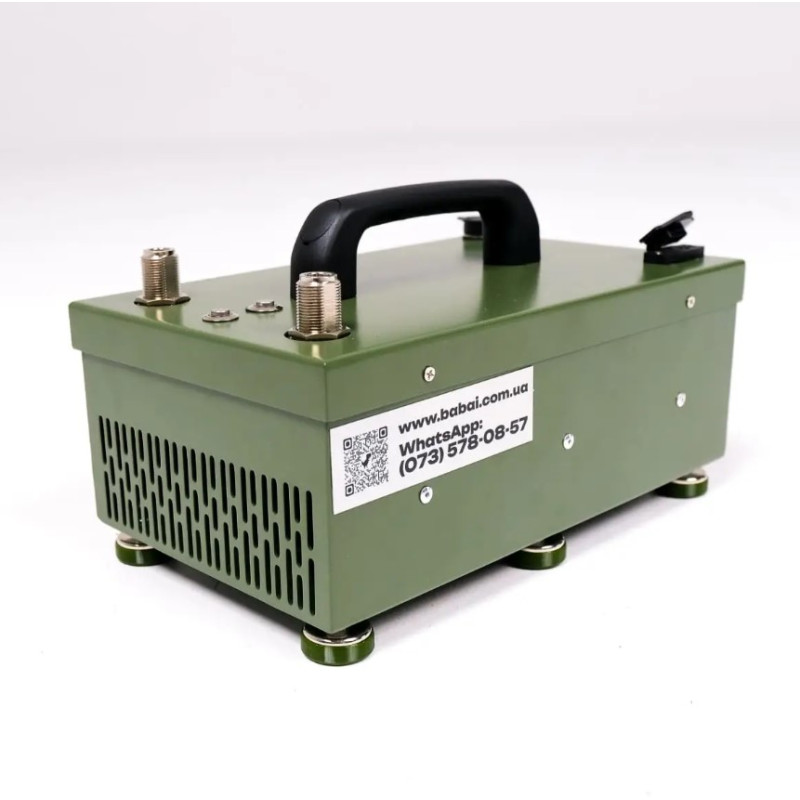

- EW Jammer «ZHUK 2M» — 1 pc.
- Power supply 25.2 V 5 A — 1 pc. (optional)

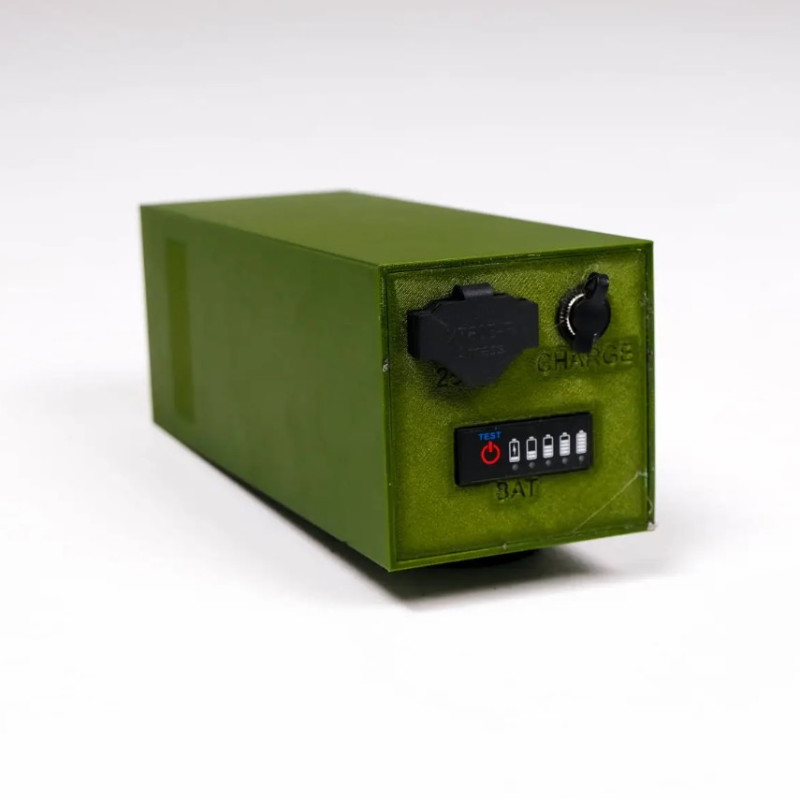

- External Li-ion 6s 4p battery — 1 pc. (optional)
- XT60 power cable 2 m and clamps — 1 pc.

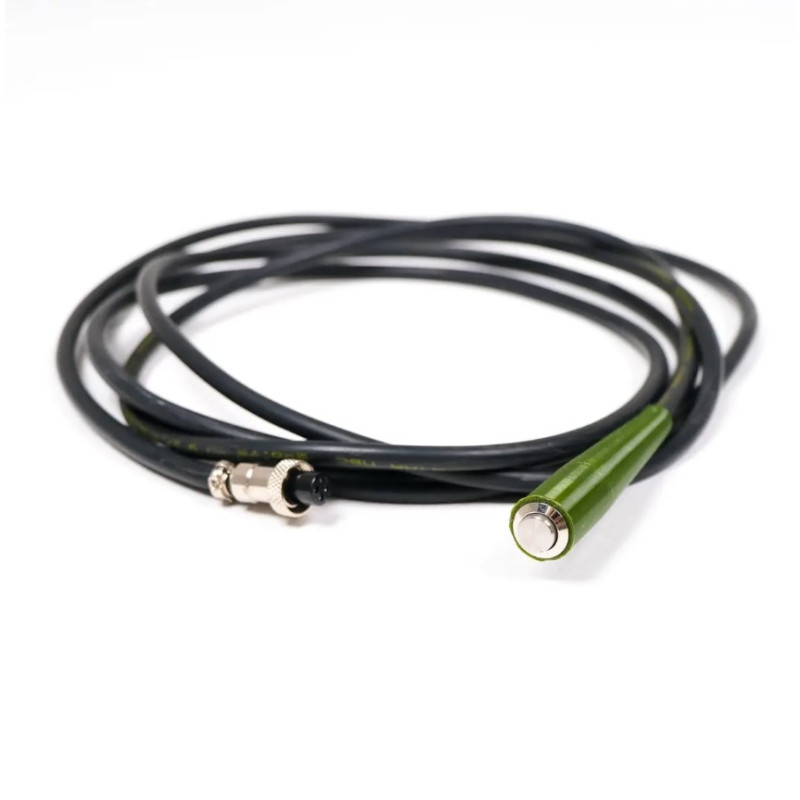

- Remote power button with cable — 1 pc.
- User manual — 1 pc.
The EW jammer «Zhuk 2M» from Babay is a practical solution for protecting fortifications and mobile positions: the combination of power, quick startup, and portability makes it an effective tool for countering FPV drones on the front line.
