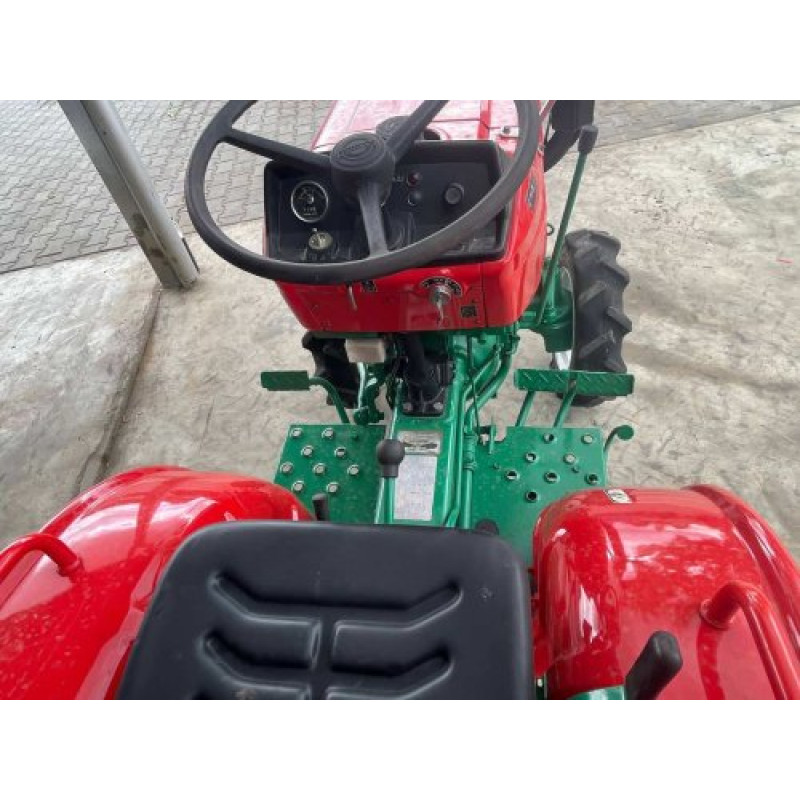

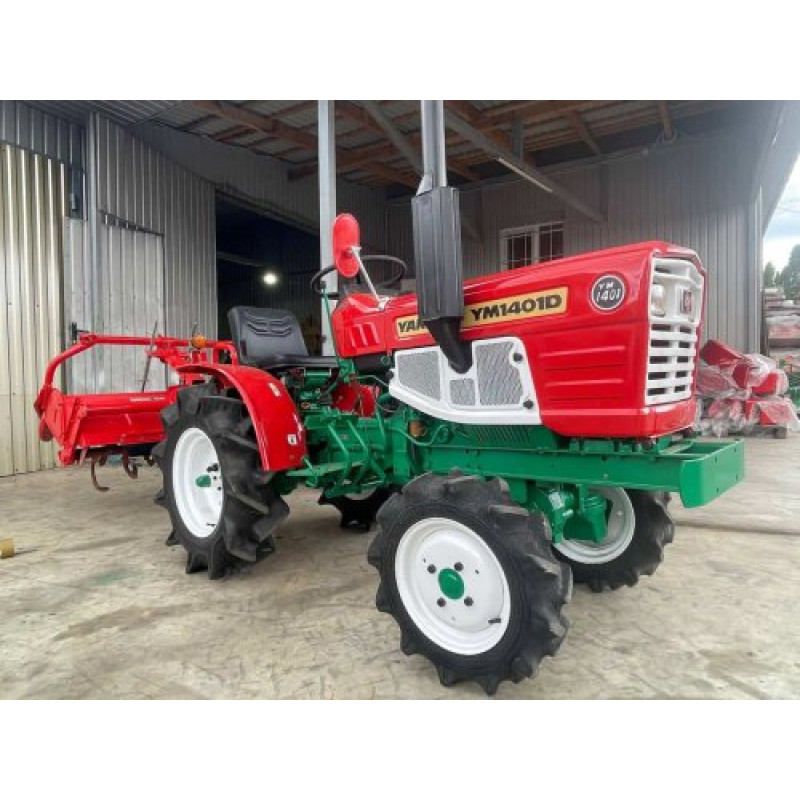

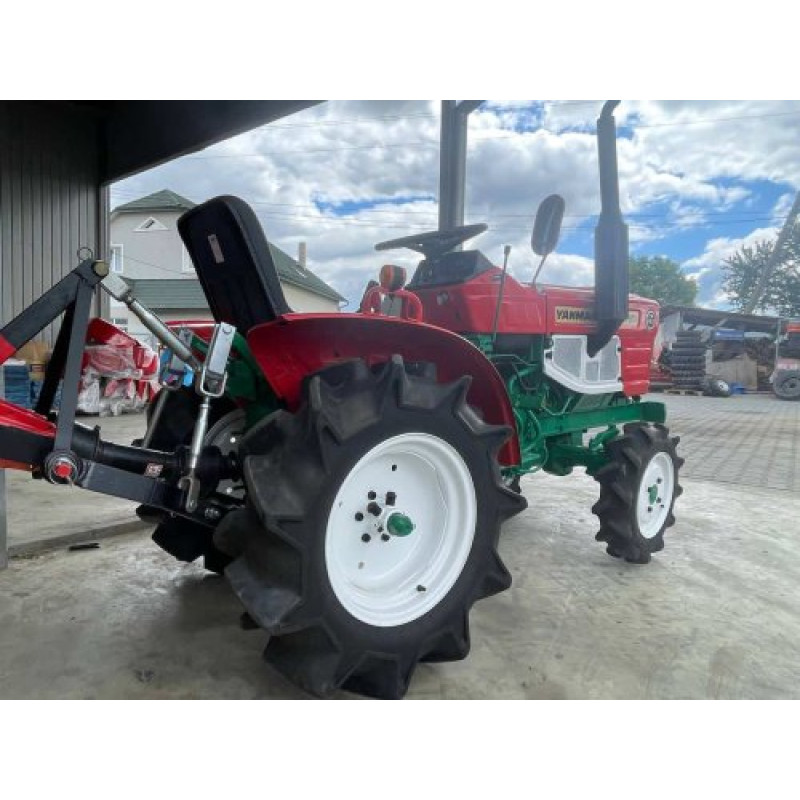

Mini Tractor Yanmar YM 1401 D is a reliable compact assistant from the Yanmar brand, designed for private farms, agricultural plots, gardening, landscaping, and small-scale agricultural work. This light and maneuverable mini tractor combines a three-cylinder diesel engine, 4x4 all-wheel drive, and a well-thought-out design, ensuring economical operation, durability, and ease of maintenance.
Key advantages of Yanmar YM 1401 D: 14 hp of power allows for efficient plowing, cultivation, and transportation of small loads; a 3-cylinder diesel engine ensures economical fuel consumption; 4x4 all-wheel drive and mechanical rear axle differential lock guarantee confident passage over difficult terrain; compact dimensions and a minimum turning radius of 1.7 m make the machine ideal for working in confined spaces.
Specifications
| Engine power, hp: | 14 |
| Wheel formula: | 4x4 |
| Engine type: | diesel |
| Number of cylinders: | 3 |
| Tank capacity, L: | 13 |
| Gearbox | (3+1)x2 |
| Maximum travel speed, km/h: | 20 |
| Differential lock: | mechanical, rear axle |
| Brakes: | drum brake |
| Overall length, mm: | 2150 |
| Overall width, mm: | 970 |
| Overall height, mm: | 1750 |
| Front wheel size: | 4.5-10 |
| Rear wheel size: | 8-16 |
| Minimum turning radius, m: | 1.7 |
| Lifting capacity of lifting mechanism, kg: | 300 |
| PTO speed, rpm: | 540/720/1000 |
| Weight, kg: | 490 |

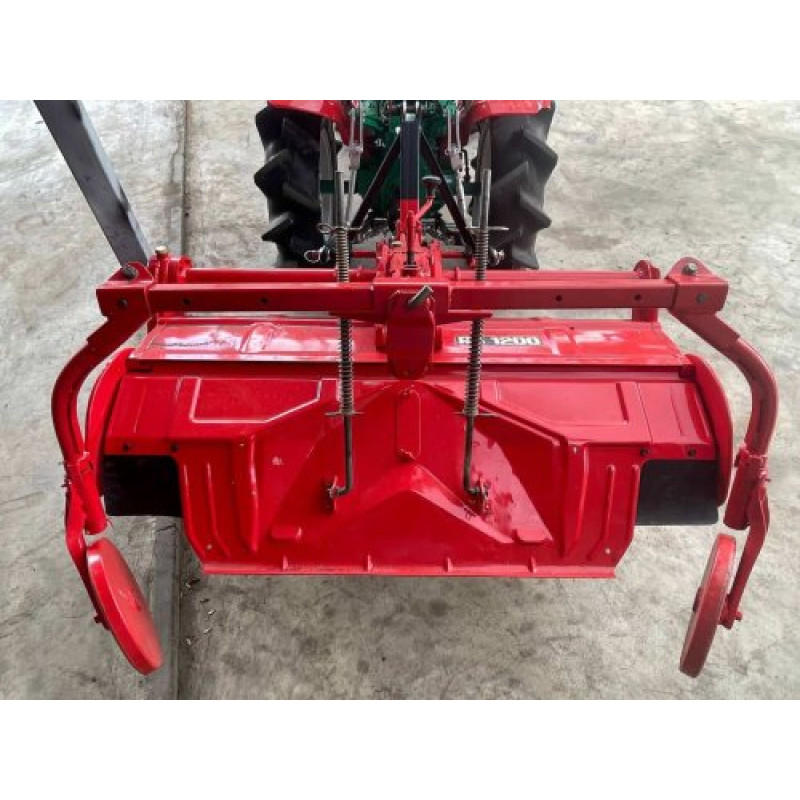

The mini tractor is equipped with a (3+1)x2 gearbox, allowing selection of the speed range for various operations. A maximum speed of 20 km/h ensures quick movement between plots, and a 13 L fuel tank capacity allows for longer work without refueling. The lifting mechanism with a working force of 300 kg enables the use of a wide range of attachments: plows, cultivators, trailers, and other implements. The PTO with 540/720/1000 rpm modes makes the tractor versatile for various mounted and rotary equipment.
Where to use effectively
- Private and farm households for soil cultivation, sowing, and field care.
- Gardening, greenhouse operations, and landscaping work on plots requiring maneuverability.
- Transportation of small loads and work with attachments — plows, cultivators, trailers, etc.
Structural dimensions: length 2150 mm, width 970 mm, height 1750 mm combined with a weight of 490 kg ensure stability, convenient storage, and maintenance. Drum brakes are easy to repair, and the rear axle with mechanical differential lock adds traction on difficult terrain and when working with heavy attachments.
Manufacturer: Yanmar. Product category: Tractors > Mini Tractors. The Mini Tractor Yanmar YM 1401 D combines compactness, reliability, and economy, making it an optimal choice for a wide range of tasks on your plot. Product ID in database: 15195.
