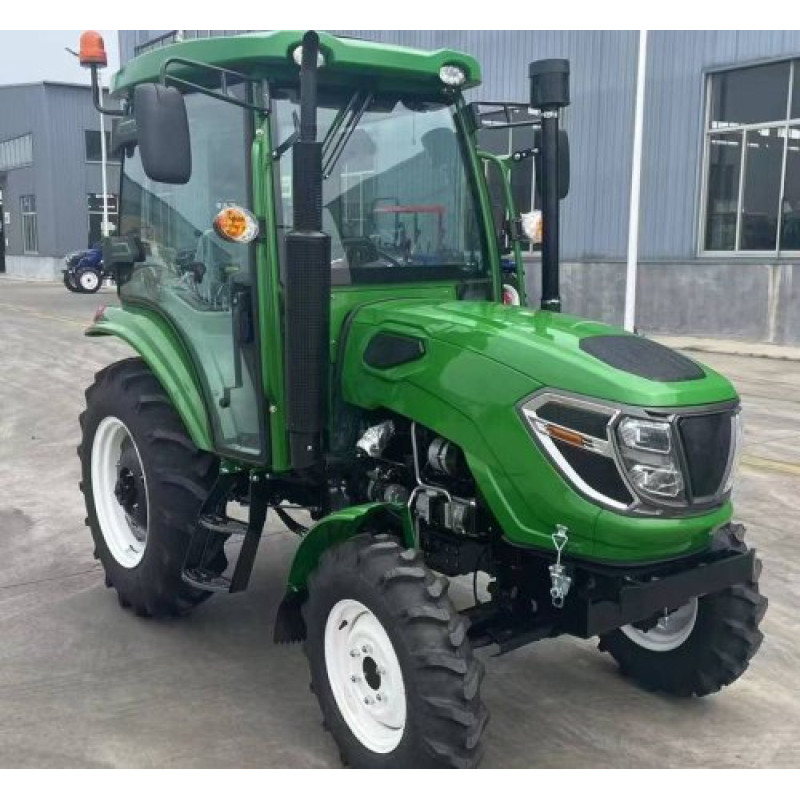

ENEY TY-404C Mini Tractor — Overview and Specifications
The ENEY TY-404C mini tractor is a versatile and reliable machine from the manufacturer ENEY, designed for agricultural, municipal, and private work. Product type: Tractors > Mini Tractors. This model combines a powerful diesel engine, 4x4 all-wheel drive, and a well-engineered design for working with attachments, transportation, and performing a wide range of tasks on a farm or plot.
ENEY TY-404C Specifications:
| Engine power, hp (kW) | 40 (29.4) |
| Wheel formula | 4x4 |
| Engine type | diesel, 4-stroke, KM490BT |
| Number and arrangement of cylinders | 4, vertical |
| Engine start system | electric starter |
| Cooling system | liquid, closed, with forced circulation of coolant |
| Cooling system fan drive | V-belt drive |
| Engine displacement, cm3 | 2545 |
| Nominal engine fuel consumption, g/kWh | ≤238 |
| Gearbox (transmission) | (4+4)x2 |
| Rear differential lock | + |
| Clutch | dry 2-disc constantly closed type |
| Main drive | direct |
| Steering | hydraulic |
| Brakes | on the secondary shaft of the gearbox, brake drums |
| Power take-off (PTO) | rear, splined |
| Hydraulic system pump type | gear pump for attachment drive / gear pump for power steering operation |
| Attachment lifting capacity, kN | 7.8 |
| Power take-off (PTO) speed, rpm | 540/1000 |
| Tire size | front 7.50-16, rear 12.4-24 |
| Wheel track | front 1200, rear 1244-1425 |
| Ground clearance, mm | 310 |
| Number of hydraulic outlets | 3 |
| Trailer connector (socket) | + |
| Compressor | + |
| Dimensions LхWхH mm | 3100х1500х1820 |
| Curb weight, kg | 1800 |
The ENEY TY-404C is equipped with a 4-cylinder KM490BT diesel engine with a displacement of 2545 cm3, developing 40 hp (29.4 kW) and featuring an electric starter for convenient starting. An efficient liquid cooling system with forced circulation and a V-belt fan drive ensures stable operation even under intense loads. The nominal fuel consumption does not exceed 238 g/kWh, making the unit economical to operate.
The transmission design includes a (4+4)x2 gearbox, a dry 2-disc constantly closed type clutch, and a direct main drive. The presence of a rear differential lock increases off-road capability in difficult conditions. Steering is hydraulic, ensuring comfortable maneuvering, and the brakes are located on the secondary shaft of the gearbox with brake drums.
For working with attachments, the ENEY TY-404C has a rear splined power take-off with speeds of 540/1000 rpm and an attachment lifting capacity of 7.8 kN. The hydraulic system with three outlets and gear pumps allows for connecting various equipment, while the presence of a trailer connector and compressor adds practicality during operation. Tire size — front 7.50-16, rear 12.4-24; ground clearance 310 mm; front track 1200 mm, rear adjustable 1244–1425 mm. Tractor dimensions 3100x1500x1820 mm, curb weight 1800 kg.
This model is a balance of power, reliability, and versatility: suitable for plowing, cultivation, sowing with small implements, for working with trailers and attachments, for on-site transportation, and municipal tasks. The ENEY TY-404C will be a good choice for owners who need a robust and functional mini tractor with wide customization options for various tasks.
