Skif 14 dBi RHCP 4.9-6.0 GHz Patch Antenna (Made in UA)

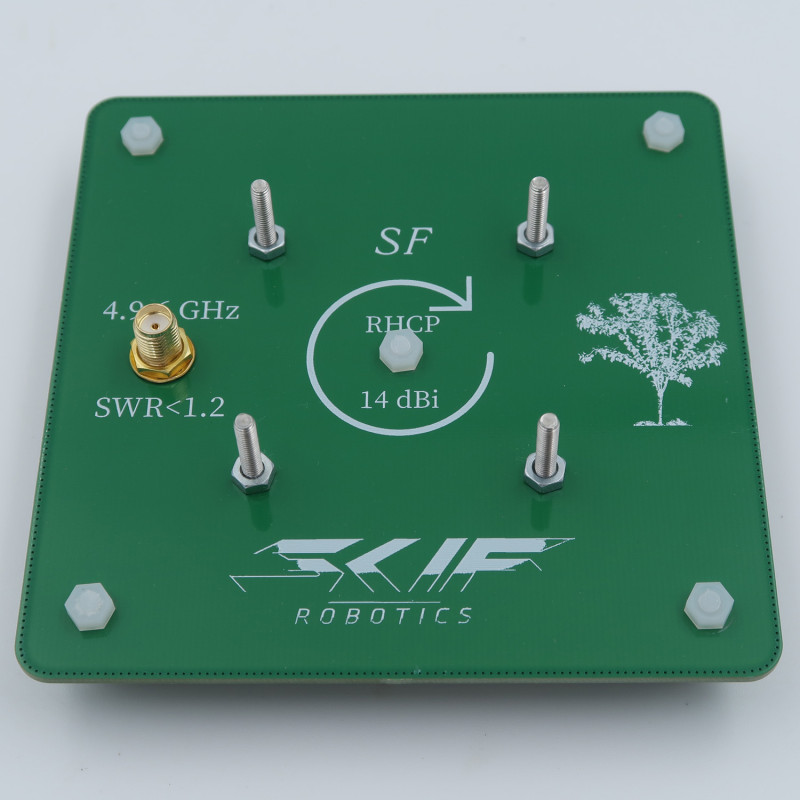

The Skif Patch Antenna is a flat, high-performance patch-type video antenna, designed by the brand and marked as Made in UA. This antenna is designed for receiving and transmitting video signals in the wide 4.9-6.0 GHz range and combines compactness, reliability, and high efficiency. The Skif Patch Antenna is ideal for integration into drones, video surveillance systems, stationary and mobile video communication nodes, in both civilian and professional applications where connection stability and real-time video quality are critical.

Advantages and Applications

The antenna's flat design ensures easy installation and space saving, allowing it to be neatly integrated into equipment enclosures without adding extra load to the platform. Right-hand circular polarization (RHCP) reduces signal loss during rotation or maneuvers of devices, and the 14 dBi gain ensures reliable video transmission over long distances. The 29° beam angle allows energy to be concentrated in the desired direction for improved video reception/transmission in challenging conditions and amidst interference.

• High 14 dBi gain for stable video communication over significant distances.
• Right-hand circular polarization (RHCP) for increased signal stability during platform rotation.
• 4.9-6.0 GHz frequency range compatible with most wireless video systems.

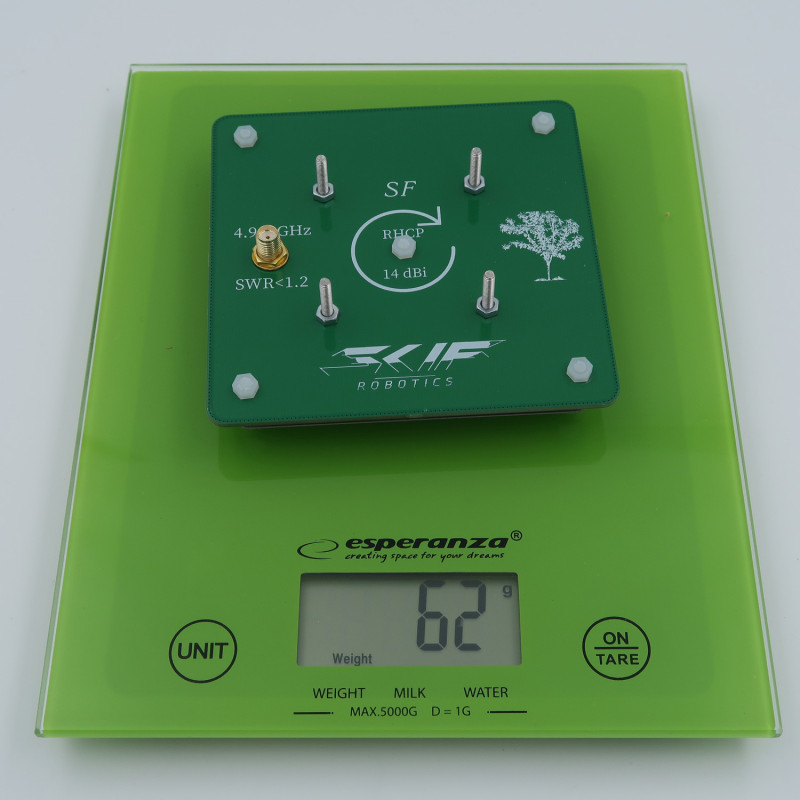

• Compact dimensions of 100*100*26 mm and low weight of 62 g facilitate installation on UAVs and minimize load.
• SMA-F connector for easy connectivity to standard equipment.

Technical Specifications Description

Below are the technical parameters of the Skif Patch Antenna, which are important to consider when choosing and integrating it into a system:

The Skif Patch Antenna is designed for operation in conditions where compactness, reliability, and stable video signal transmission are important. Its composite material construction ensures strength and durability, while its light weight and small size make it convenient for use on unmanned aerial vehicles, mobile video systems, and stationary video transmission points. The SMA-F connector ensures easy integration with most video transmitters and receivers.

Choosing the Skif 14 dBi RHCP 4.9-6.0 GHz is an investment in reliable video communication even in challenging operating conditions: an optimized directional pattern with a 29° angle, high 14 dBi gain, and right-hand circular polarization guarantee signal stability during platform maneuvers.

You can buy proven and high-quality Skif patch antennas in our online store: the model ensures easy installation, reliable connection via SMA-F, and stable operation in the specified frequency range.
