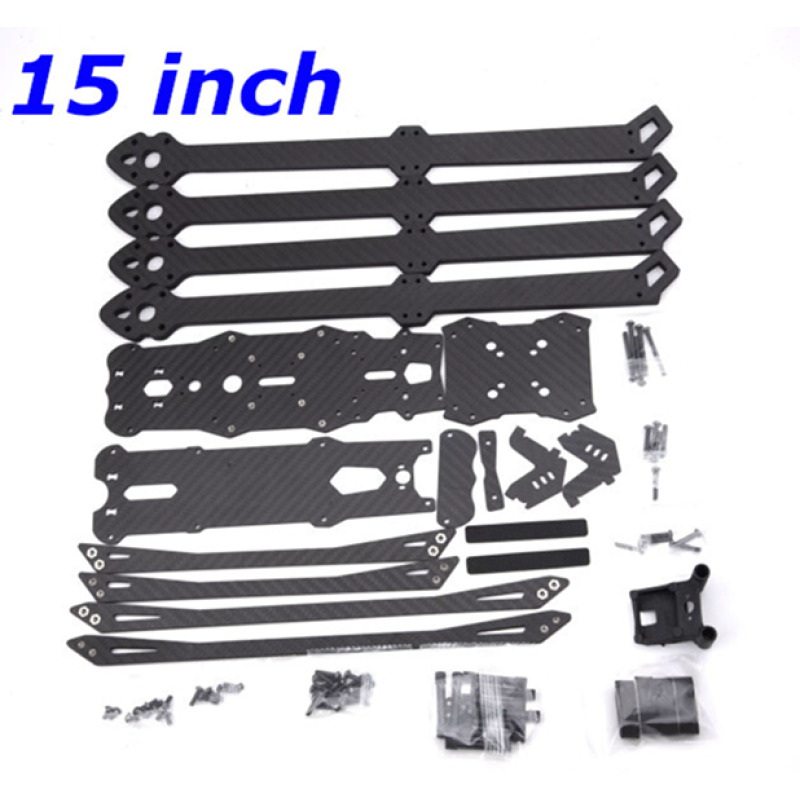

Readytosky 15-inch Mark 4 v3 Carbon Fiber Frame

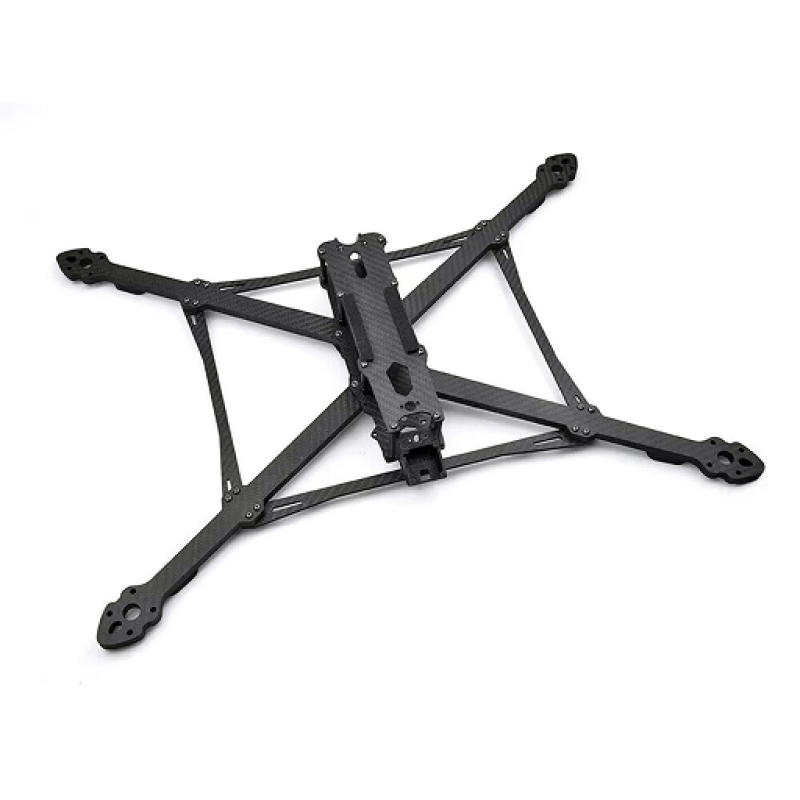

Readytosky MARK4 V3 Pro 15inch — this carbon frame is designed for building long-range drones. It has a diagonal motor-to-motor distance of 680mm and is equipped with 8mm carbon arms that are interconnected to increase structural rigidity. The frame is compatible with Micro 19mm cameras, which are secured in carbon side plates. Mounting holes for stacks of 20*20mm and 30.5*30.5mm are supported. The rear part provides space for installing a video transmitter, also with corresponding holes for both formats. The frame is optimized for an analog video system but also allows for the integration of digital video transmitters.
Features
-
8mm carbon arms are interconnected to reduce deformation under load
-
Carbon side plates with a 19mm mounting size ensure stable mounting of Micro cameras
-
The model with a 680mm-15inch wheelbase is adapted for long-range drones with propeller sizes up to 15 inches
-
Suitable for both analog and digital video transmitters
Specifications
Mark4 V3 Pro 15 inch
-
Frame size (motor-to-motor): 680mm
-
Arm thickness: 8mm
-
Top plate: 2mm
-
Bottom plate: 3mm
-
Lower fixed plate: 3mm
-
Camera side plate: 2.5mm
-
Front/rear plate thickness: 2.5mm
-
Surrounding reinforcement thickness: 3mm
-
Camera mounting hole distance: 19mm
-
Stack mounting holes: 2020mm/30.530.5mm
-
VTX mounting holes: 2020mm/30.530.5mm
-
Motor mounting holes: 21*21mm M4
-
Material: carbon fiber
-
Color: black
-
Weight: 590g
